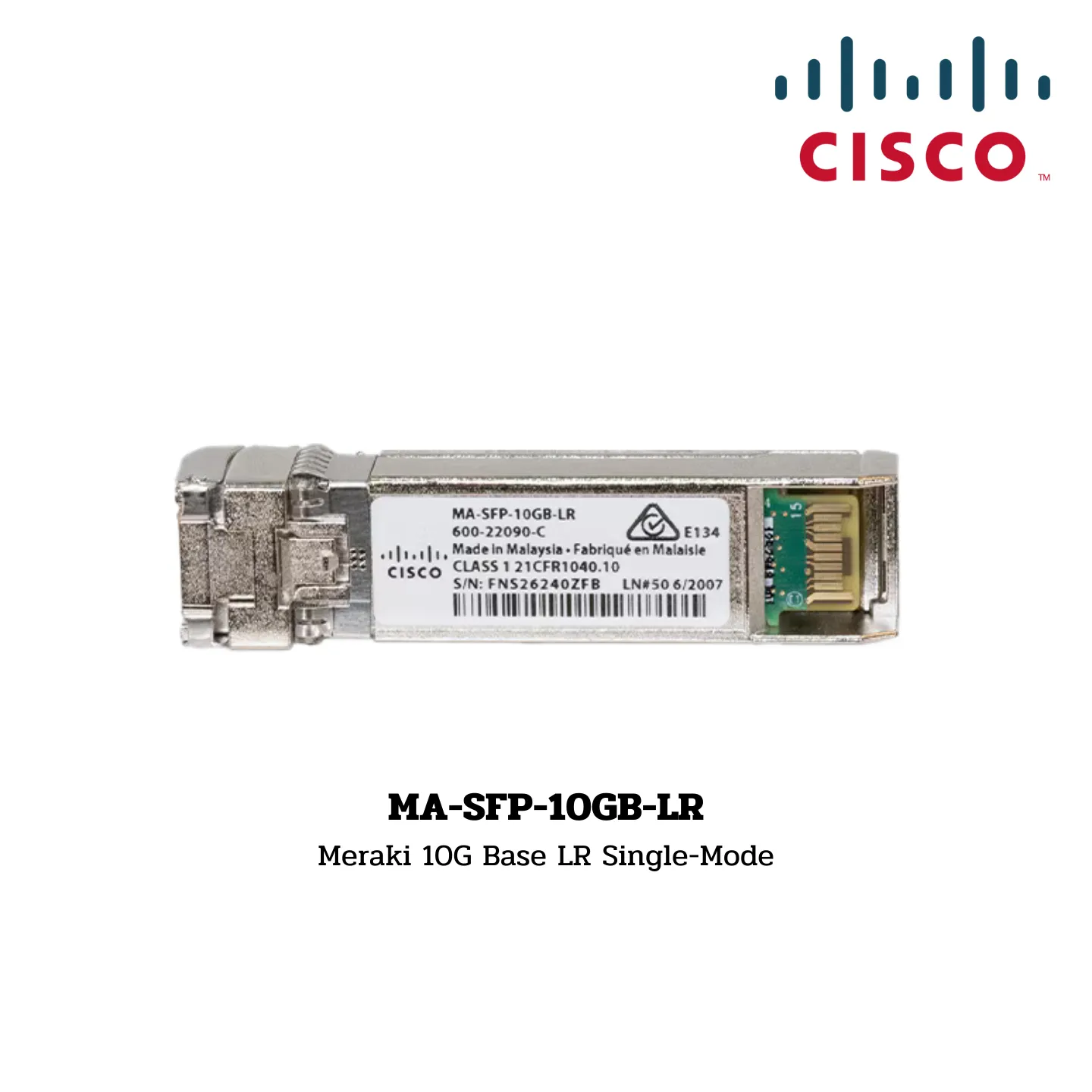

Cisco Meraki Security Appliances รุ่น MA-SFP-10GB-LR

MA-SFP-10GB-LR
Meraki 10G Base LR Single-Mode

The Meraki MA-SFP-10GB-LR is a 10GBASE-LR SFP+ single-mode fiber transceiver module designed for high-speed connectivity over long distances.

Overview

The MA-SFP-10GB-LR transceiver module supports 10 Gigabit Ethernet connectivity, making it suitable for data centers, enterprise wiring closets, and service provider transport applications. It provides reliable and efficient network performance over single-mode fiber, with a reach of up to 10 kilometers.

Key Features:

• Compatibility: Works with various Meraki MS switch series.
• 10GBASE-LR Standard: Supports 10 Gigabit Ethernet connections over single-mode fiber.
• Range: Offers a maximum range of 10 kilometers, making it ideal for long-distance data transmission.
• Wavelength: Operates at a wavelength of 1310 nm.
• Hot-Swappable: Allows for easy installation and replacement without needing to power down the equipment.
• Digital Diagnostics Monitoring (DDM): Enables real-time monitoring of critical parameters such as optical power, transceiver temperature, and supply voltage.
• Form Factor: SFP+ form factor ensures high density per chassis.
• Power Budget: Provides a power budget to ensure strong signal and reliable transmission over long distances.
• Environmental Suitability: Operating temperature range between 0°C to 70°C, making it suitable for various network environments.

Specifications

• Standard: 10GBASE-LR
• Range: 10 km
• Compatible with:
  • MS125 switches
  • MS225 switches
  • MS250 switches
  • MS350 switches
  • MS355 switches
  • MS390 switches
  • MS410 switches
  • MS425 switches
