Cisco Meraki Security Appliances Hardware รุ่น MX450-HW

MX450-HW

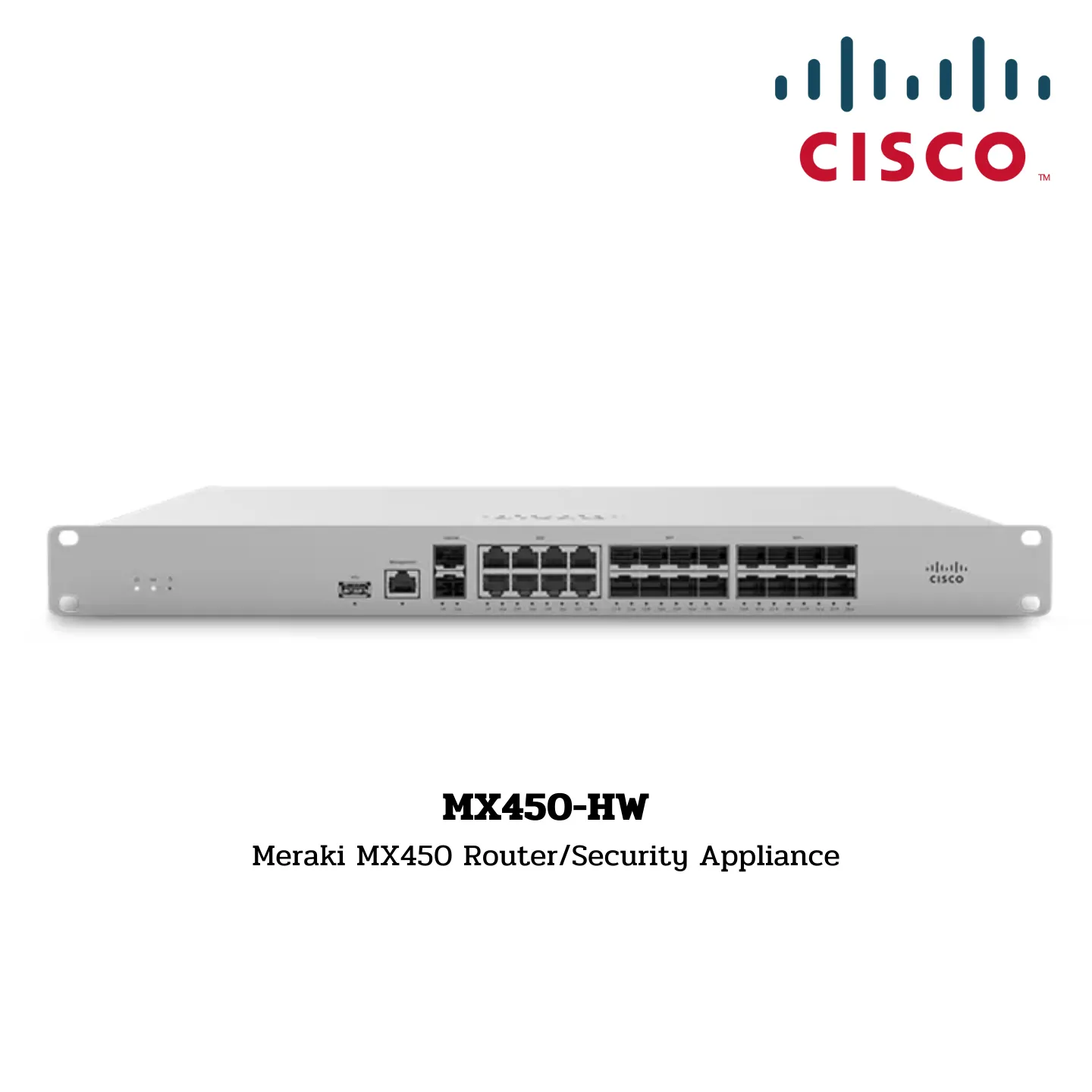

Meraki MX450 Router/Security Appliance

• Specifications

  WAN Capabilities:

  • Dual Active WAN: Yes
  • 3G/4G Failover: Yes
  • Built-in LTE Modem: No
  • Built-in Wi-Fi: No
  • Built-in PoE+: No

  Connectivity:

  • WAN Fiber Connectivity: SFP, SFP+
  • Dual Power Supply: Yes
  • Form Factor: 1U

  Security Features:

  • HTTPS Inspection: Yes
  • Advanced Malware Protection (AMP): Yes
  • Intrusion Detection and Prevention (SNORT IPS/IDS): Yes

  Capacity:

  • Recommended Maximum Device Count: 10,000
  • Maximum Site to Site VPN Tunnel Count: 5,000
  • Recommended Maximum Site to Site VPN Tunnel Count: 1,500
  • Maximum Number of Client VPN Tunnels: 500
  • Maximum Number of AnyConnect Sessions: 1,500

  Performance:

  • WAN Failover: < 5 Sec
  • Auto VPN Tunnel Failover: Sub-second
  • Dynamic Path Selection: Sub-second
  • Maximum Concurrent Sessions: 1,000,000

  Throughput:

  • Firewall Throughput (RFC2544 – 1518 Byte): 10 Gbps
  • Firewall Throughput (EMIX): 10 Gbps
  • NGFW Throughput (Advanced Security – Prevention) EMIX: 3.5 Gbps
  • NGFW Throughput (Advanced Security – Detection) EMIX: 7 Gbps
  • Single Tunnel VPN Throughput (RFC2544 1400 Byte): 3.5 Gbps
  • Multi-Tunnel VPN Throughput (RFC2544 1400 Byte): 4.5 Gbps
  • Single Tunnel VPN Throughput (EMIX): 3 Gbps
  • Multi-Tunnel VPN Throughput (EMIX): 4.5 Gbps
