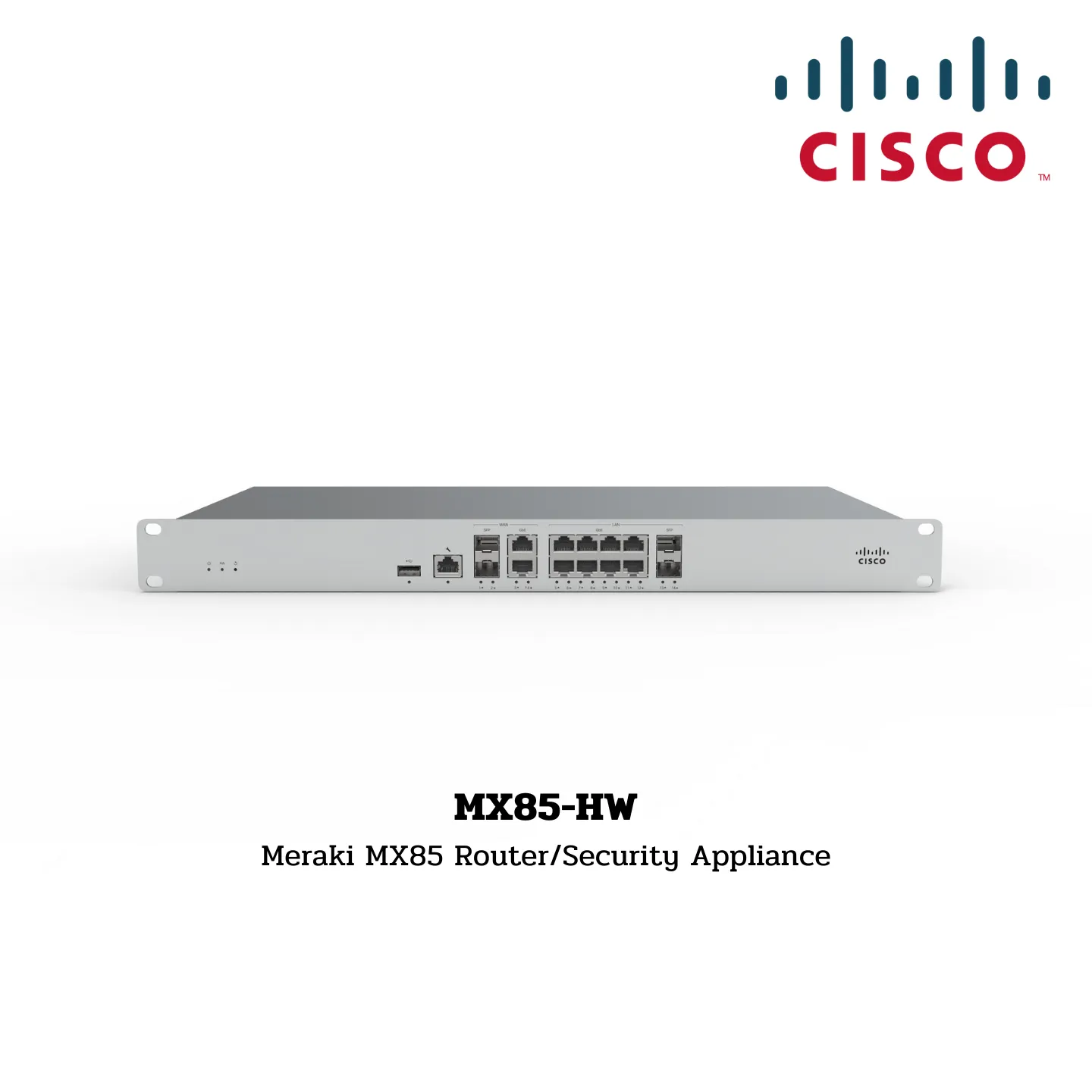

MX85-HW
Meraki MX85 Router/Security Appliance
-
Specifications
WAN Uplinks:
- Number of WAN Uplinks: 4
Throughput:
- Stateful Firewall Throughput: 1 Gbps
- Maximum Concurrent VPN Tunnels: 1 Gbps
- Advanced Security Throughput: 1 Gbps
PoE Capabilities:
- Yes, 1x RJ45 / 1 Gigabit Ethernet port (WAN – port 4)
WAN Interfaces:
- 2x Dedicated 1 Gigabit Ethernet SFP
- 2x Dedicated 1 Gigabit Ethernet RJ45
LAN Interfaces:
- 8x Dedicated 1 Gigabit Ethernet RJ45
- 2x Dedicated 1 Gigabit Ethernet SFP
Recommended Device Count:
- Small to medium branch with up to 250 devices
Max VPN Throughput:
- 1 Gbps
Max Concurrent Site-to-Site VPN Tunnels:
- 200
Max Stateful Firewall Throughput:
- 1 Gbps
Max Advanced Security Throughput:
- 1 Gbps
Mounting:
- Rack Mount
Physical Dimensions:
- Height: 1.7 in (43.8 mm)
- Depth: 9.8 in (250 mm)
- Width: 19 in (484.6 mm)
Weight:
- 8.2 lb (3.7 kg)
Power Supply:
- Internal 100-127VAC, 200-240VAC (50/60Hz)
Power Load:
- Idle: 12W
- Max: 55W
Cooling:
- Fan: No
Operating Environment:
- Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5% to 95%
