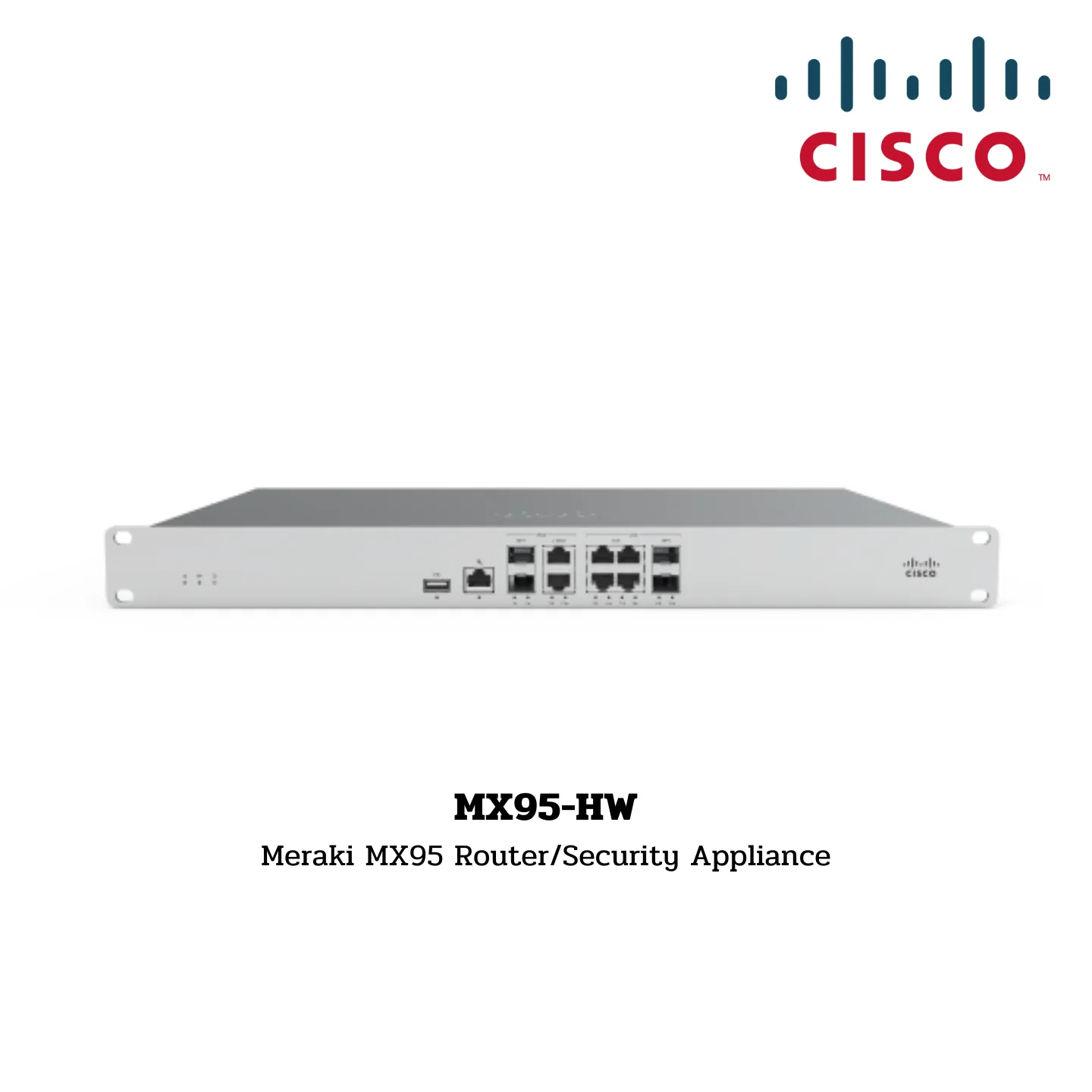

MX95-HW
Meraki MX95 Router/Security Appliance
-
Specifications
WAN Uplinks:
- Number of WAN Uplinks: 4
Throughput:
- Stateful Firewall Throughput: 2.5 Gbps
- Maximum Concurrent VPN Tunnels: 2.5 Gbps
- Advanced Security Throughput: 2.5 Gbps
PoE Capabilities:
- Yes, 1x RJ45 / 2.5 Gigabit Ethernet port (WAN)
WAN Interfaces:
- 2x Dedicated 10 Gigabit Ethernet SFP+
- 2x Dedicated 2.5 Gigabit Ethernet RJ45
LAN Interfaces:
- 4x Dedicated 1 Gigabit Ethernet RJ45
- 2x Dedicated 10 Gigabit Ethernet SFP+
Recommended Device Count:
- Mid to large enterprise locations with 500 devices
Max VPN Throughput:
- 800 Mbps
Max Concurrent Site-to-Site VPN Tunnels:
- 500
Max Stateful Firewall Throughput:
- 2 Gbps
Max Advanced Security Throughput:
- 2 Gbps
Mounting:
- Rack Mount
Physical Dimensions:
- Height: 1.73 in (44 mm)
- Depth: 11.23 in (285.2 mm)
- Width: 19 in (484.6 mm)
Weight:
- 6.99 lb (3.17 kg)
Power Supply:
- Input Operating Voltage: 100-127 VAC, 200-240 VAC (50/60 Hz)
Power Load:
- Idle: 42 W
- Max: 109 W
Operating Environment:
- Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5% to 95%
