MS130R-8P-HW

MS130R-8P-HW

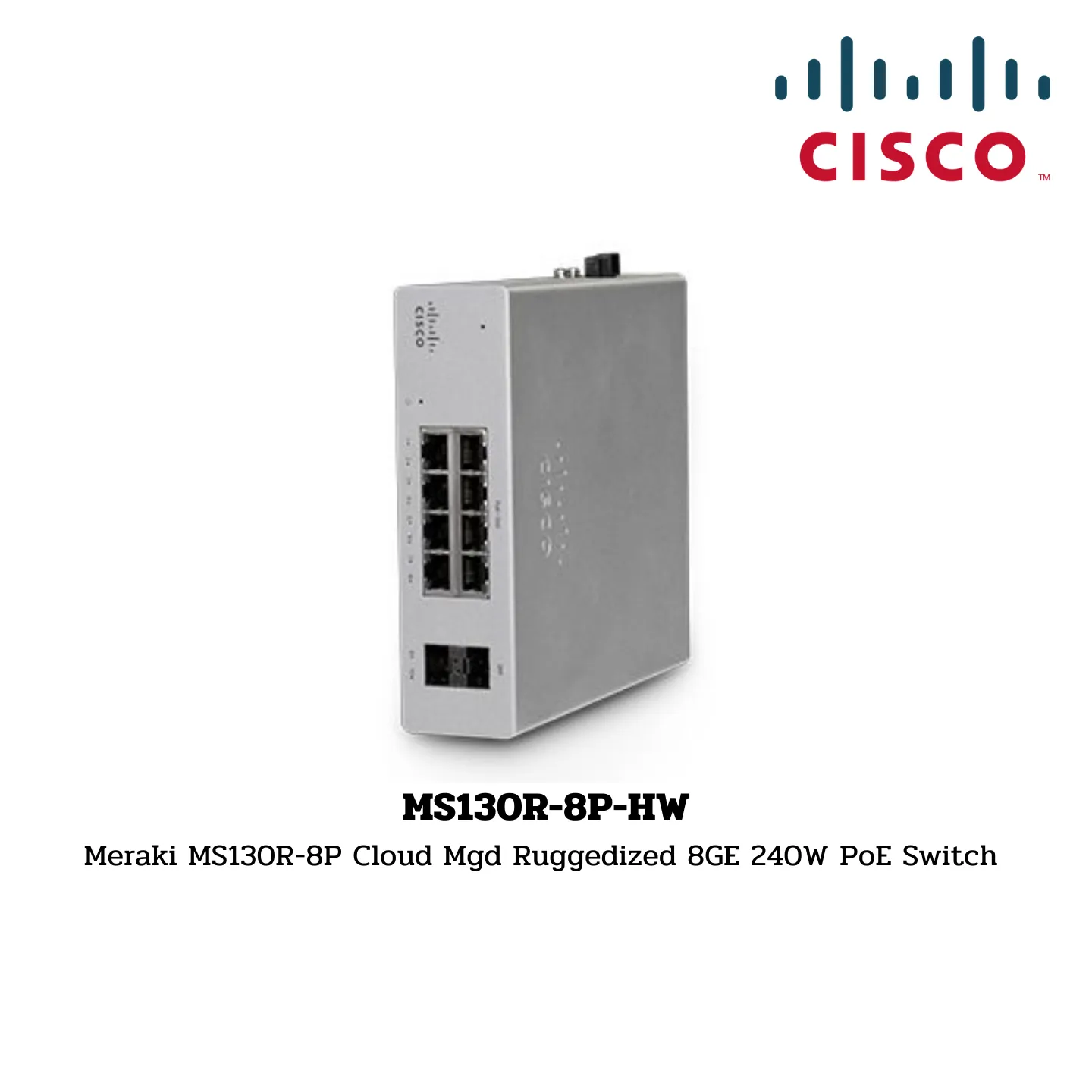

Cisco Meraki MS130R-8P Cloud Mgd Ruggedized 8GE 240W PoE Switch

Switch Specifications:

• Port Configuration:
  • 1Gbe RJ45: 8 ports
  • 1Gbe SFP: 2 ports
  • Dedicated Management Interface: Not available
  • PoE Type: 802.3bt
  • PoE Port Budget: 30W
  • PoE Switch Budget: 240W

Power:

• Input Voltage: 50-54VDC, 5.6A
• Power Load (idle/max): 12W/257W
• Power Consumption: 12W-257W

Environmental Conditions:

• Operating Temperature: Refer to Thermal and PoE specifications section
• Storage and Transportation Temperature: -40°F – 185°F (-40°C – 85°C)
• Humidity: 5% to 95%

Mounting and Physical Dimensions:

• Mounting: Desktop, Wall mount, DIN rail options
• Switching Capacity: 20Gbps
• Power Supply: External AC Adapter or DIN rail AC power supply options
• Fan Operation: Fanless
• Dimensions (h x w x d): 1.75 x 6.18 x 6.69 in (4.4 x 15.7 x 17 cm)
• Weight: 12.12 lb (0.96 kg)

What’s In the Box:

• MS130R switch
• DIN rail mounting bracket
• 19″ rack mount brackets
• Wall mount brackets

Safety Certifications:

• UL: 60950-1 / UL 62368-1 3rd Edition
• CAN/CSA: C22.2 No. 60950-1 / No. 62368-1
• EN: 60950-1 / EN 62368-1
• IEC: 60950-1 / IEC 62368-1 2nd & 3rd Edition
• NOM: 019-SCFI-1998
• CNS: 15598-1

EMC Emissions and Immunity Compliance:

• FCC: 47 CFR Part 15 Class A
• ICES: 003 Class A
• EN: 55032/55035 Class A
• AS/NZS: CISPR 32 Class A
• VCCI: Class A
• CNS: 15936
• EN: 300 386
• IEC/EN: 61000-4-9, 61000-4-29

International Standards:

• EN: 50581 (RoHS)
• China RoHS
• CE Marking
• RCM Marking (Australia/New Zealand)
• Japan VCCI & JATE
• Taiwan BSMI
• Korea KC
• Brazil ANATEL
• China NAL
• Mexico IFETEL
• EU WEEE
• NEMA TS-2
• IP30
• IEC 60068-2-3 / -2-30
