Cisco Meraki Switch Hardware รุ่น MS130-48P-HW

MS130-48P-HW

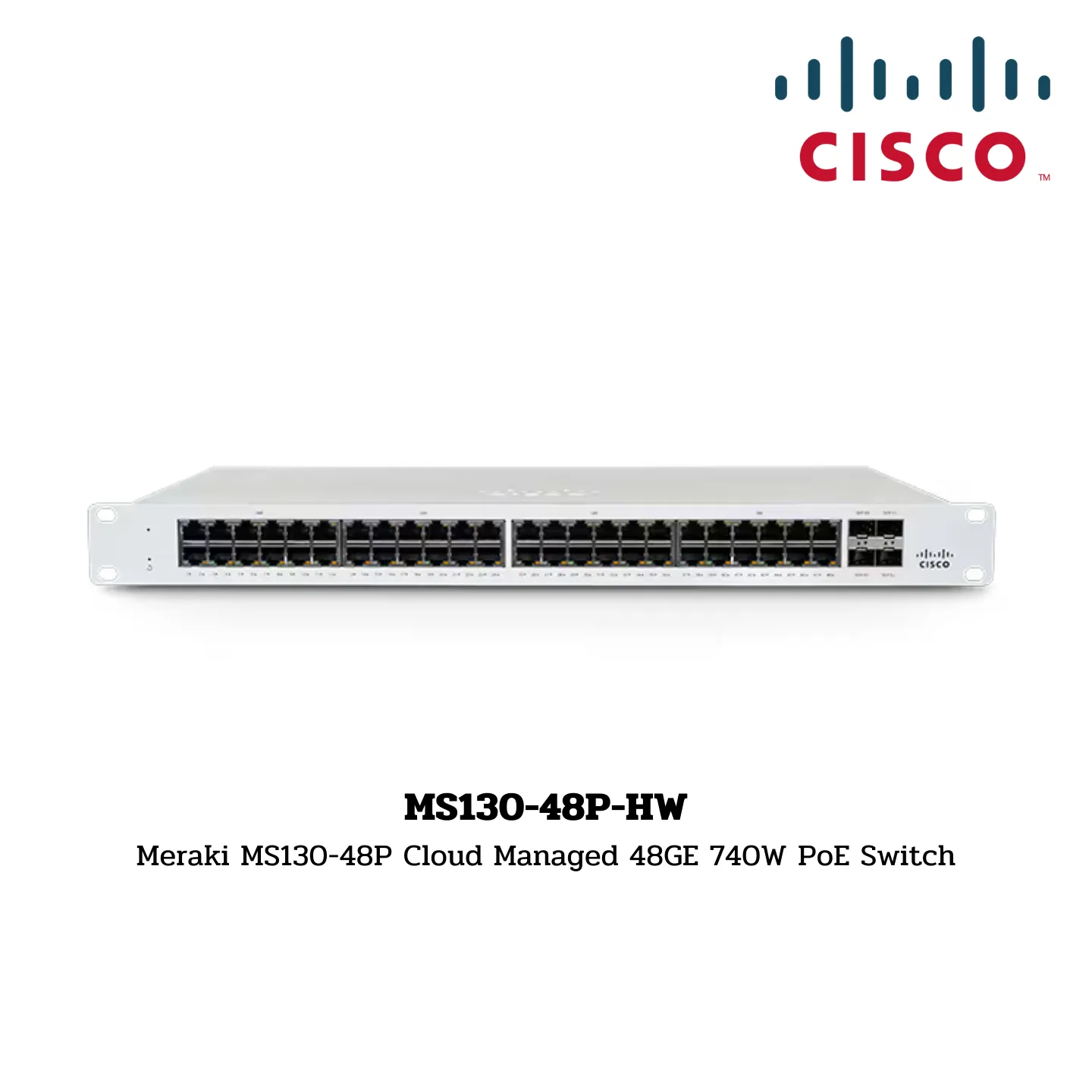

Meraki MS130-48P Cloud Managed 48GE 740W PoE Switch

Switch Specifications:

• Port Configuration:
  • 1Gbe RJ45: 48 ports
  • mGbe RJ45 (100M/1G/2.5G): Not available
  • 1Gbe SFP: 4 ports
  • 10Gbe SFP+: Not available
  • Dedicated Management Interface: 1 port
  • PoE Type: 802.3bt
  • PoE Port Budget: 30W
  • PoE Switch Budget: 740W

Power:

• Input Voltage: 100-240V~, 12-6A, 50-60Hz
• Power Load (idle/max): 49W/803W
• Power Consumption: 49W – 803W

Environmental Conditions:

• Operating Temperature: 0°C – 45°C (32°F – 113°F)
• Storage and Transportation Temperature: -20°C – 70°C (-4°F – 158°F)
• Humidity: 5% to 95%

Mounting and Physical Dimensions:

• Mounting: Integrated 1U Rack Mount
• Switching Capacity: 104 Gbps
• Power Supply: Fixed Internal
• Fan Operation: Fixed Internal
• Dimensions (h x w x d): 1.73 x 17.32 x 13.4 in (4.4 x 44 x 34 cm)
• Weight: 12.13 lb (5.5 kg)
