Cisco Meraki Switch Hardware รุ่น MS130-8P-HW

MS130-8P-HW

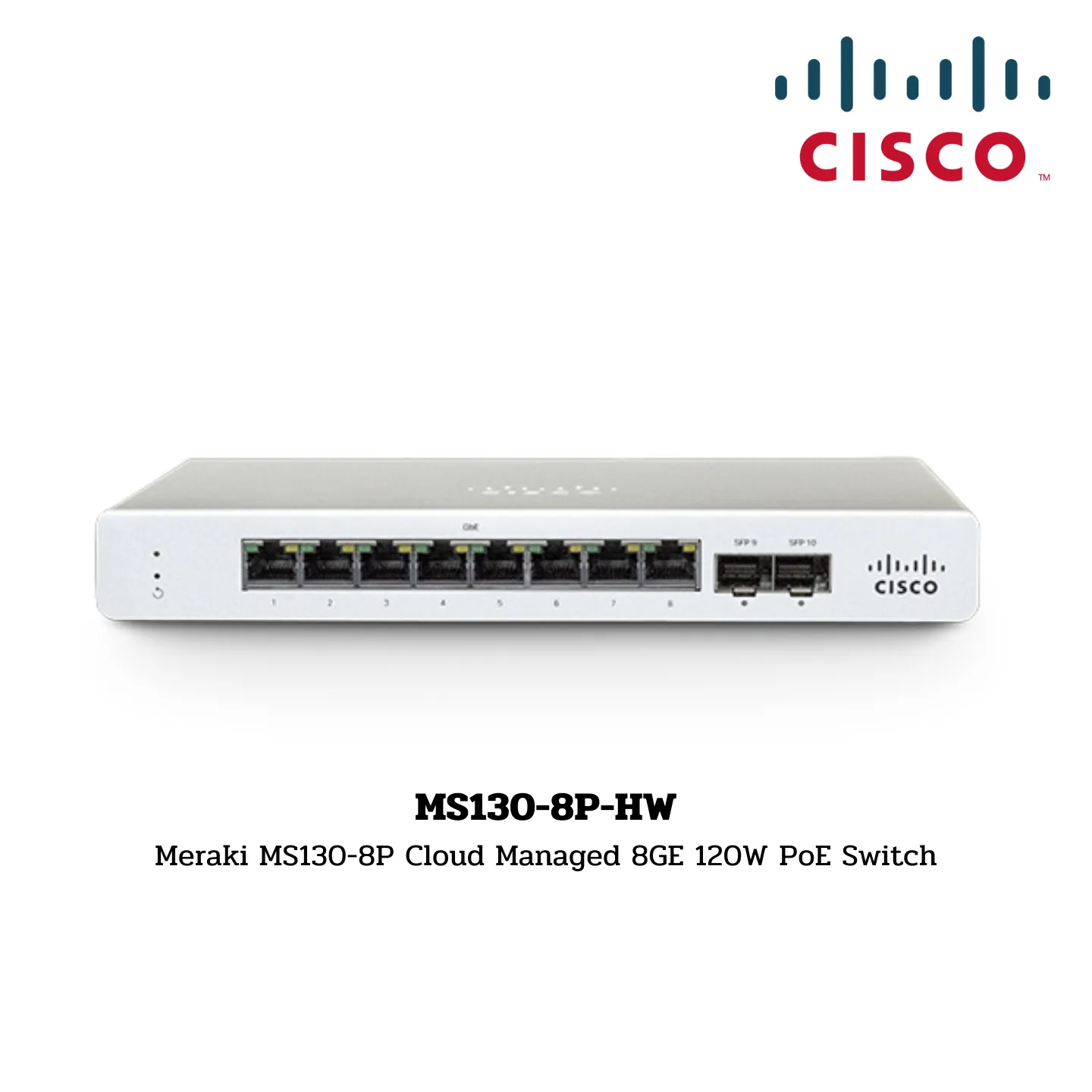

Meraki MS130-8P Cloud Managed 8GE 120W PoE Switch

Switch Specifications:

• Port Configuration:
  • 1Gbe RJ45: 8 ports
  • 10Gbe RJ45: Not available
  • 1Gbe SFP: 2 ports
  • 10Gbe SFP+: Not available
  • Dedicated Management Interface: Not available
  • PoE/PoE+ Capable: Yes

Power:

• Input Voltage: 12VDC, 2.5A
• Power Load (idle/max): 8W/8W
• Power Consumption: 8W

Environmental Conditions:

• Operating Temperature: 0°C – 45°C (32°F – 113°F)
• Storage and Transportation Temperature: -20°C – 70°C (-4°F – 158°F)
• Operating Humidity: 5% to 95%

Mounting and Physical Dimensions:

• Mounting: Desktop or Integrated Wall mount
• Switching Capacity: 20Gbps
• Power Supply: External
• Fan Operation: Fanless
• Dimensions (h x w x d): 1.1 x 8.74 x 6 in (2.8 x 22.2 x 15 cm)
• Weight: 1.94 lb (0.88 kg)
