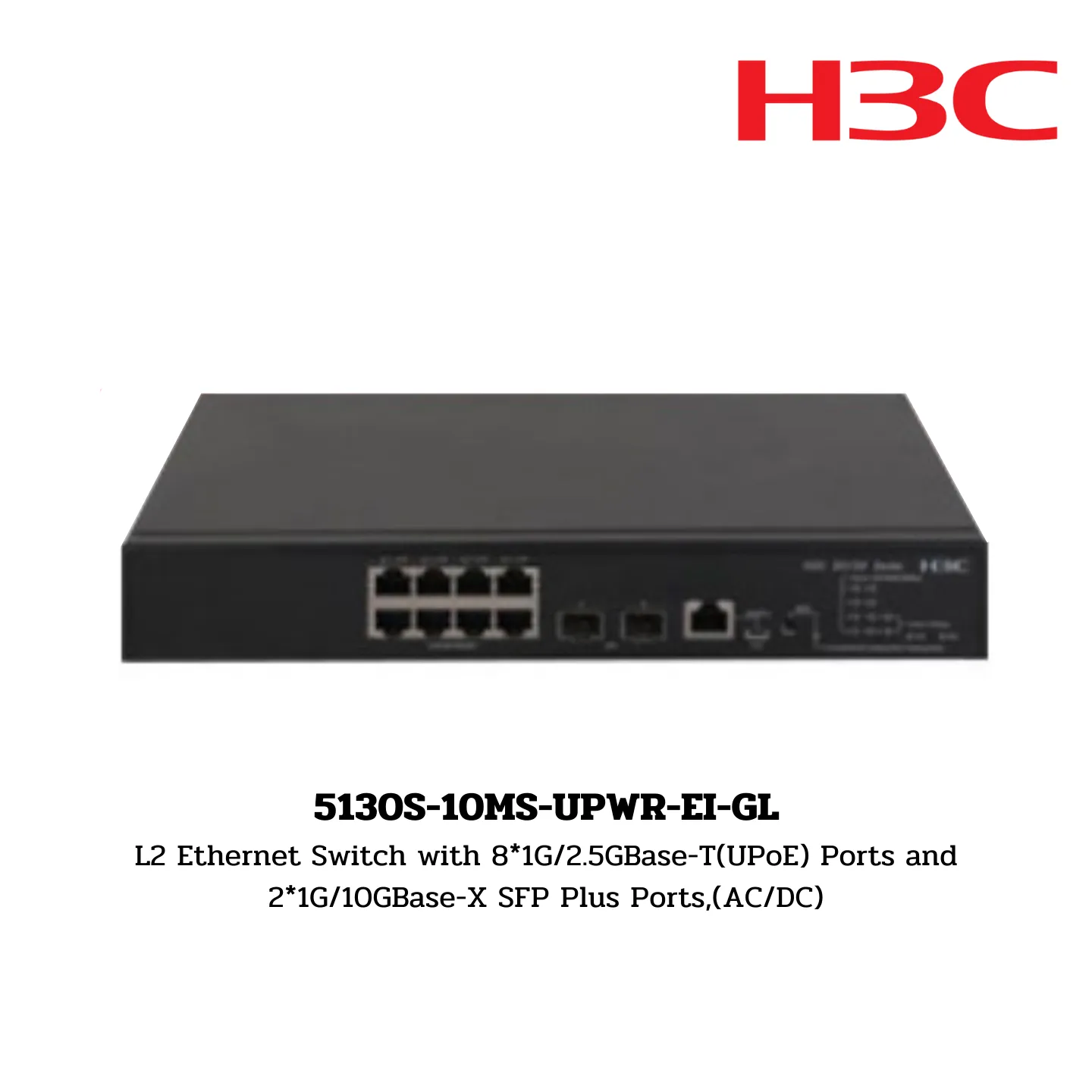

Switch H3C รุ่น 5130S-10MS-UPWR-EI-GL

5130S-10MS-UPWR-EI-GL
L2 Ethernet Switch with 8*1G/2.5GBase-T(UPoE) Ports and 2*1G/10GBase-X SFP Plus Ports,(AC/DC)

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 80Gbps

Forwarding Capacity:

• 60Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 300 × 260 × 43.6 mm

Weight:

• ≤3.5kg

10/100/1000 Base-T Ports:

• /

SFP Ports:

• /

SFP+ Ports:

• 2

Multigiga Ports:

• 8×1G/2.5GBASE-T (UPoE)

Maximum Stacking Bandwidth:

• 16Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz
• DC: Rated voltage range: -54V～-57V DC

Power Consumption (full configuration):

• Min: AC: 22.2W, DC: 17.38W
• Max: AC: 447W (PoE 370W), DC: 794.2W (PoE 740W)

Fan Number:

• 3

MTBF (Mean Time Between Failures):

• 52.27 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
