S5130S-28F-EI-HI-GL H3C S5130S Series Switch

S5130S-28F-EI-HI-GL

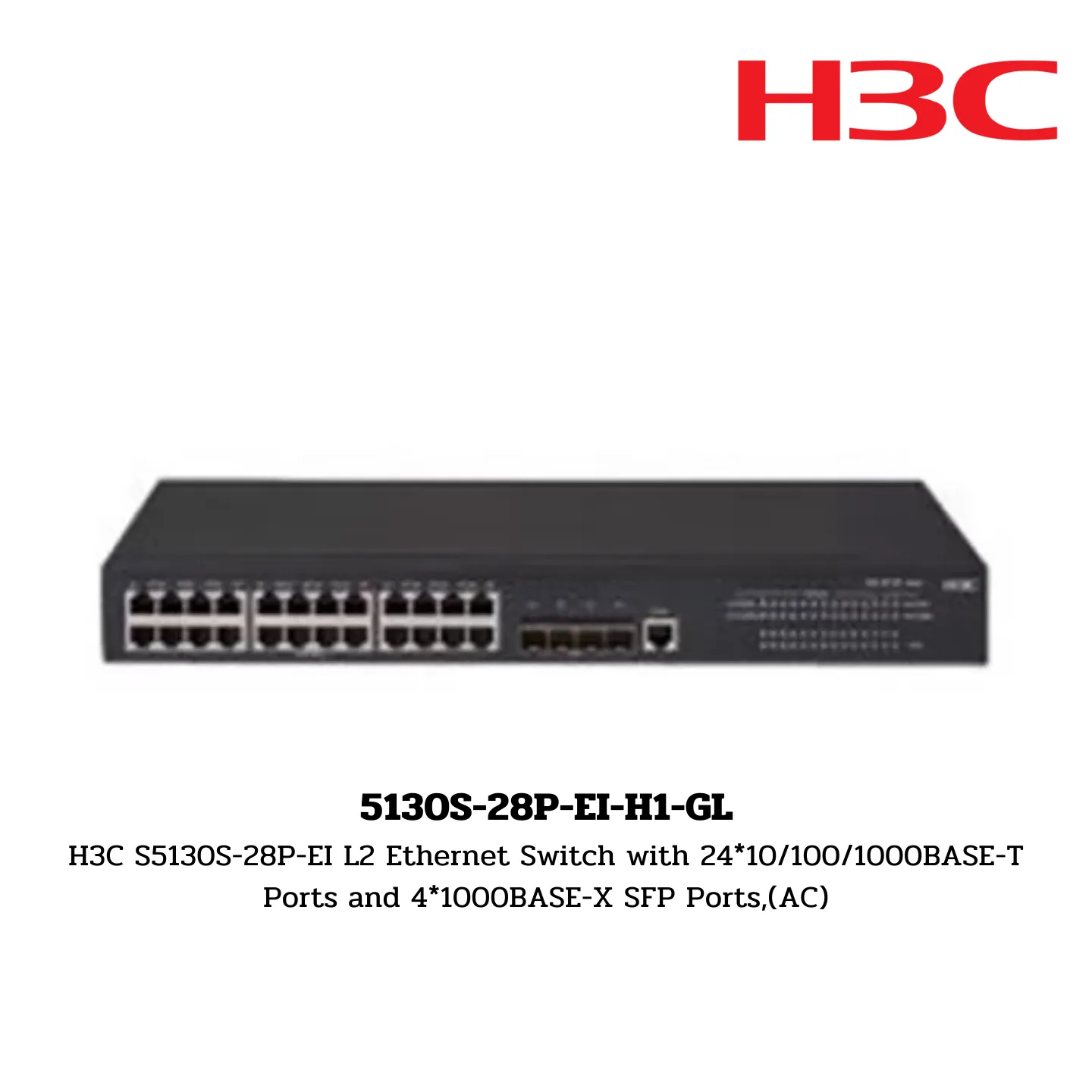

H3C S5130S-28P-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 128Gbps

Forwarding Capacity:

• 96Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 440 × 360 × 43.6 mm

Weight:

• ≤6kg

SFP Ports:

• 24 (8 BASE-T combo)

SFP+ Ports:

• 4

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz
• DC: Rated voltage range: -54V～-57V DC

Power Consumption (full configuration):

• MIN:
  • Single PSR75-12A: 15W
  • Dual PSR75-12A: 17W
  • Single PSR150-A1: 18W
  • Single PSR150-D1: 18W
  • Dual PSR150-A1: 23W
  • Dual PSR150-D1: 22W
• MAX:
  • Single PSR75-12A: 26W
  • Dual PSR75-12A: 29W
  • Single PSR150-A1: 27W
  • Single PSR150-D1: 27W
  • Dual PSR150-A1: 32W
  • Dual PSR150-D1: 33W

Fan Number:

• 2

MTBF (Mean Time Between Failures):

• 77.58 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
