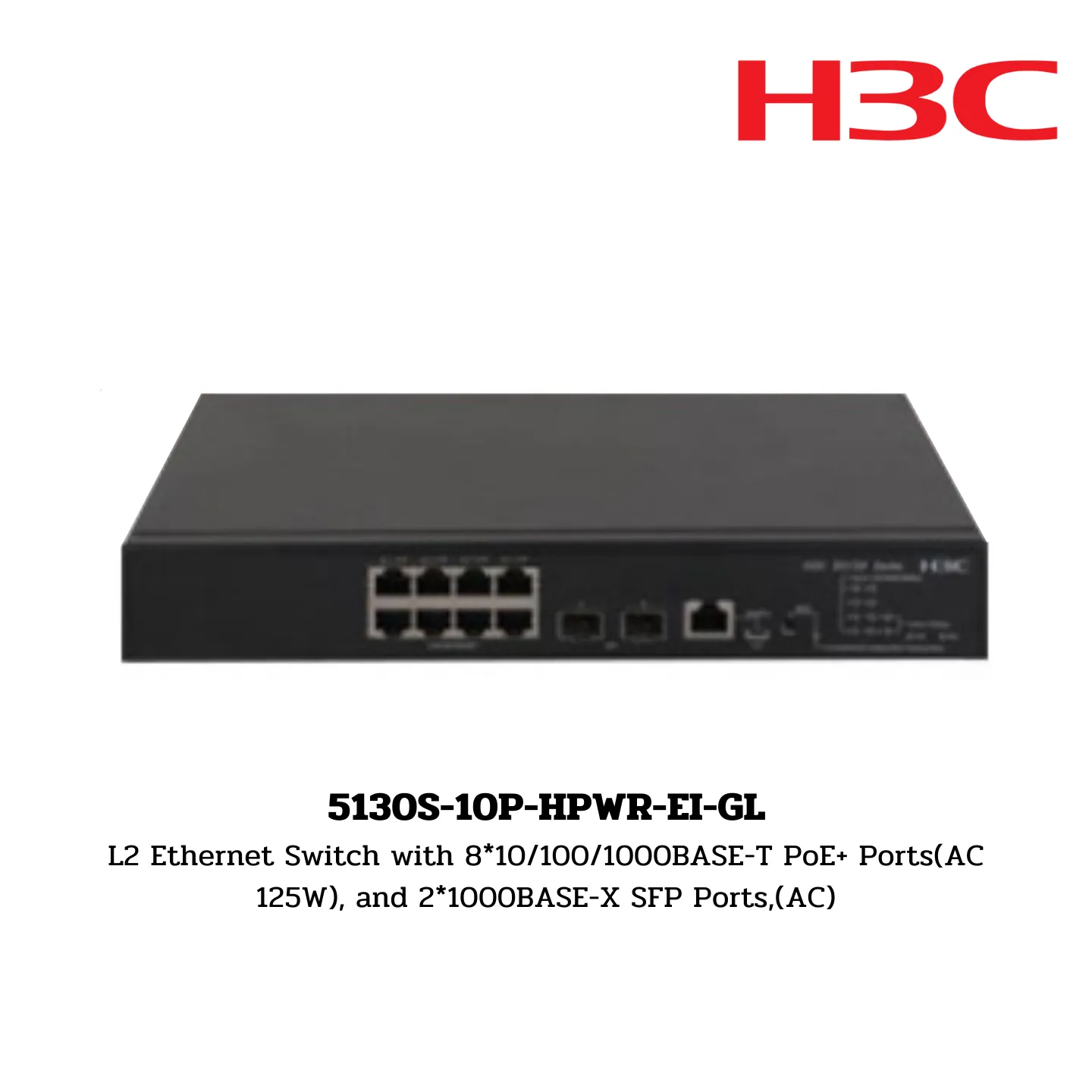

Switch H3C รุ่น 5130S-10P-HPWR-EI-GL

5130S-10P-HPWR-EI-GL
L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports(AC 125W), and 2*1000BASE-X SFP Ports,(AC)

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 20Gbps

Forwarding Capacity:

• 15Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs

Dimensions (W × D × H):

• 330×230×43.6 mm

Weight:

• ≤2.5kg

10/100/1000 Base-T Ports:

• 8

SFP Ports:

• 2

Maximum Stacking Bandwidth:

• 16Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz

Power Consumption:

• MIN: AC: 13W
• MAX: AC: 153W

Fan Number:

• Fanless

MTBF (Mean Time Between Failures):

• 104.12 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
