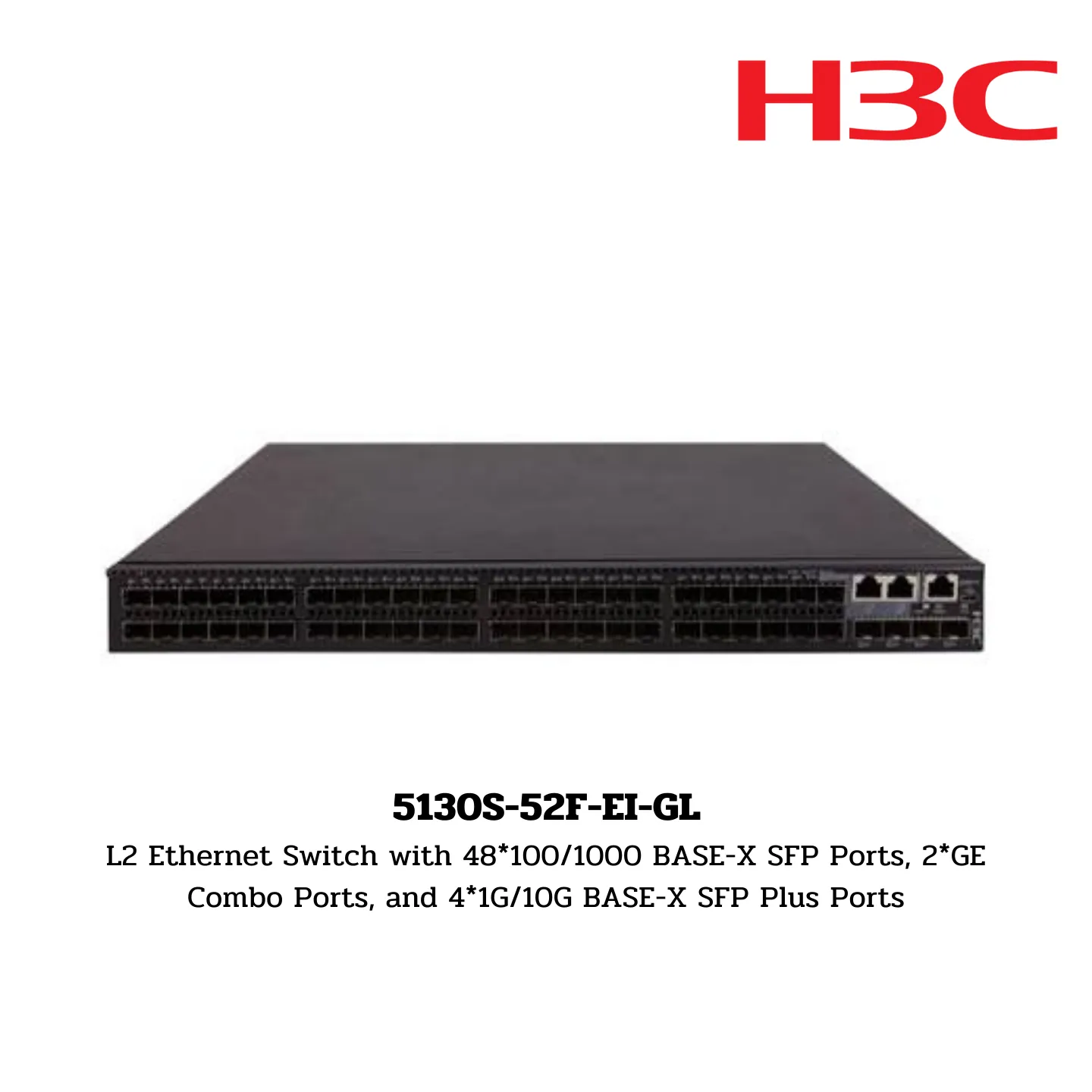

S5130S-52F-EI-GL H3C S5130S Series Switch

S5130S-52F-EI-GL
L2 Ethernet Switch with 48*100/1000 BASE-X SFP Ports, 2*GE Combo Ports, and 4*1G/10G BASE-X SFP Plus Ports

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 176Gbps

Forwarding Capacity:

• 131Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 440 × 360 × 43.6 mm

Weight:

• ≤6.5kg

SFP Ports:

• 48 (2 BASE-T combo)

SFP+ Ports:

• 4

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz
• DC: Rated voltage range: -54V～-57V DC

Power Consumption (full configuration):

• MIN:
  • Single PSR75-12A: 45W
  • Dual PSR75-12A: 48W
  • Single PSR150-A1: 48W
  • Single PSR150-D1: 51W
  • Dual PSR150-A1: 55W
  • Dual PSR150-D1: 57W
• MAX:
  • Single PSR75-12A: 69W
  • Dual PSR75-12A: 72W
  • Single PSR150-A1: 74W
  • Single PSR150-D1: 84W
  • Dual PSR150-A1: 95W
  • Dual PSR150-D1: 95W

Fan Number:

• 2

MTBF (Mean Time Between Failures):

• 125.56 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
