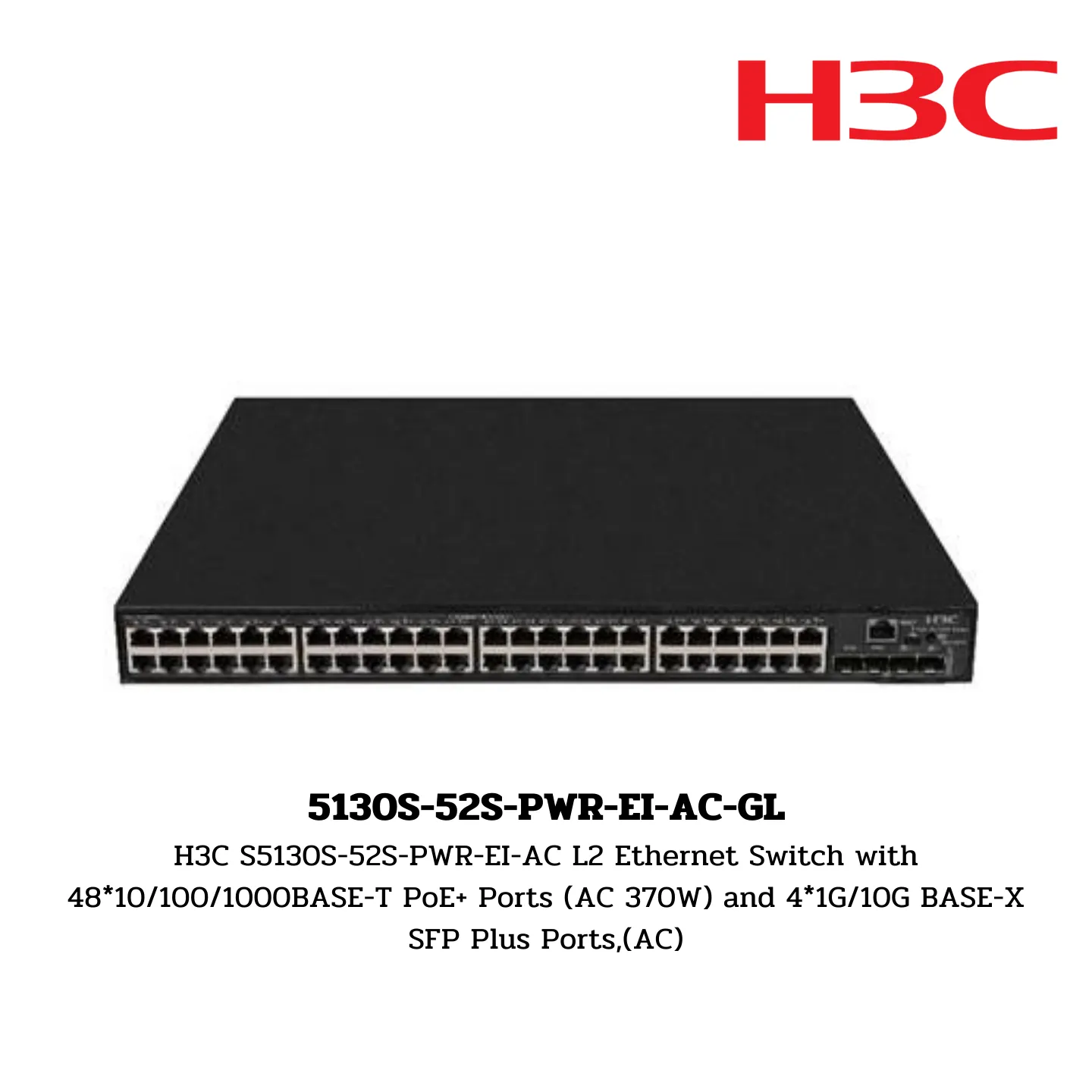

S5130S-52S-PWR-EI-AC-GL H3C S5130S Series Switch

S5130S-52S-PWR-EI-AC-GL
H3C S5130S-52S-PWR-EI-AC L2 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports (AC 370W) and 4*1G/10G BASE-X SFP Plus Ports,(AC)

Hardware Specifications

Port Switching Capacity:

• 176Gbps

Forwarding Capacity:

• 131Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 440 × 400 × 43.6 mm

Weight:

• ≤6kg

SFP Ports:

• 48

SFP+ Ports:

• 4

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz

Power Consumption (full configuration):

• MIN: AC: 36W
• MAX: AC: 467W (PoE 370W)

Fan Number:

• 1

MTBF (Mean Time Between Failures):

• 50.19 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
