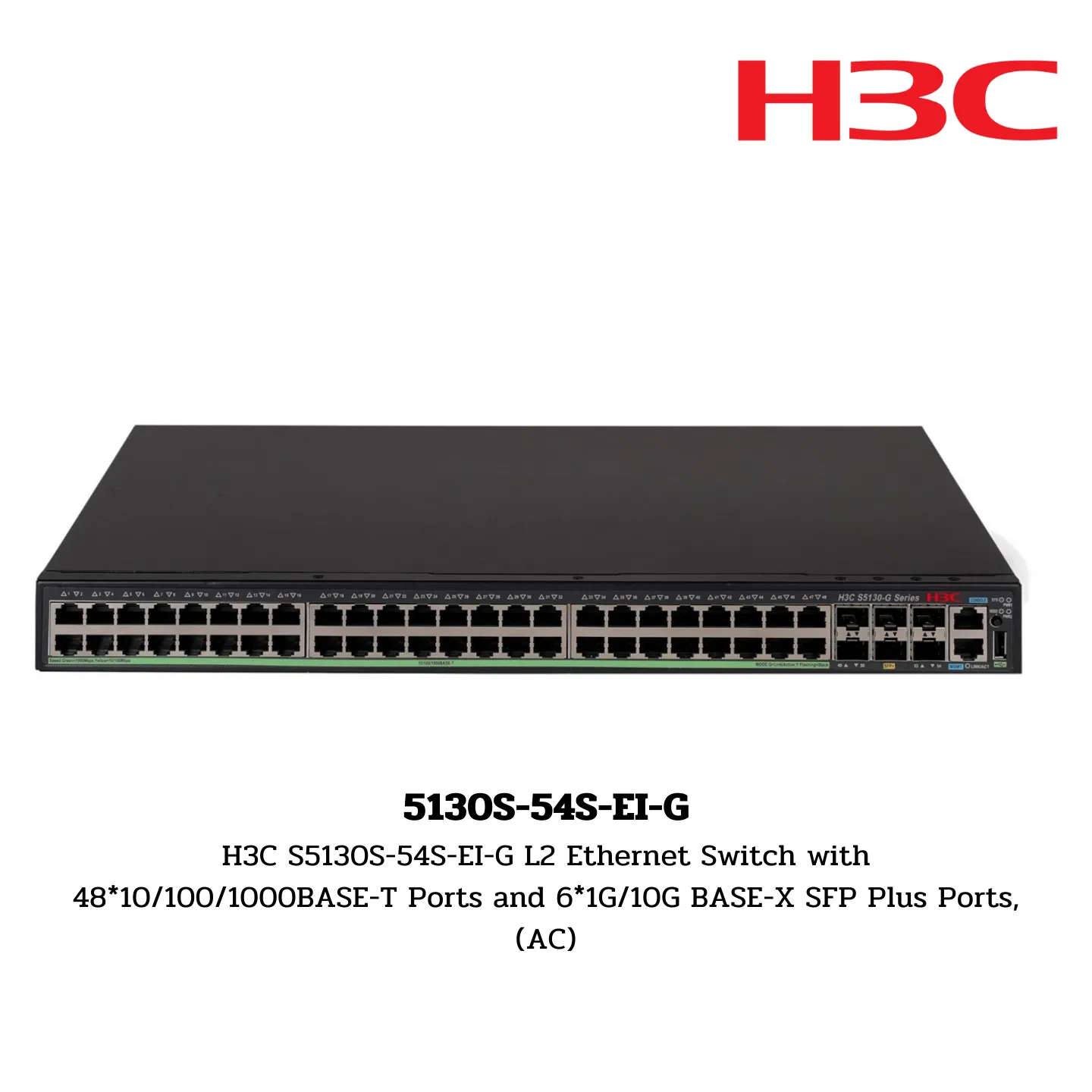

S5130S-54S-EI-G H3C S5130S Series Switch

S5130S-54S-EI-G
L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 6*1G/10G BASE-X SFP Plus Ports,(AC)

Hardware Specifications

Port Switching Capacity:

• 216Gbps

Forwarding Capacity:

• 161Mpps

Box Switching Capacity:

• 336Gbps

Flash/RAM:

• 3.5GB / 1GB

Memory Capacity of Packet Buffer (bytes):

• 3MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 440 × 260 × 43.6 mm

Weight:

• 3.9kg (with APD 70W)

10/100/1000 Base-T Ports:

• 48

SFP+ Ports:

• 6

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz

Power Consumption (full configuration):

• MIN:
  • Single AC: 26.3W
  • Dual AC: 27.0W
• MAX:
  • Single AC: 59.7W
  • Dual AC: 60.1W

Fan Number (fixed):

• 2

MTBF (Mean Time Between Failures):

• 151.15 years

MTTR (Mean Time to Repair):

• 1 hour

Noise (ISO7779):

• 36.7dB / 45.2dB

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
