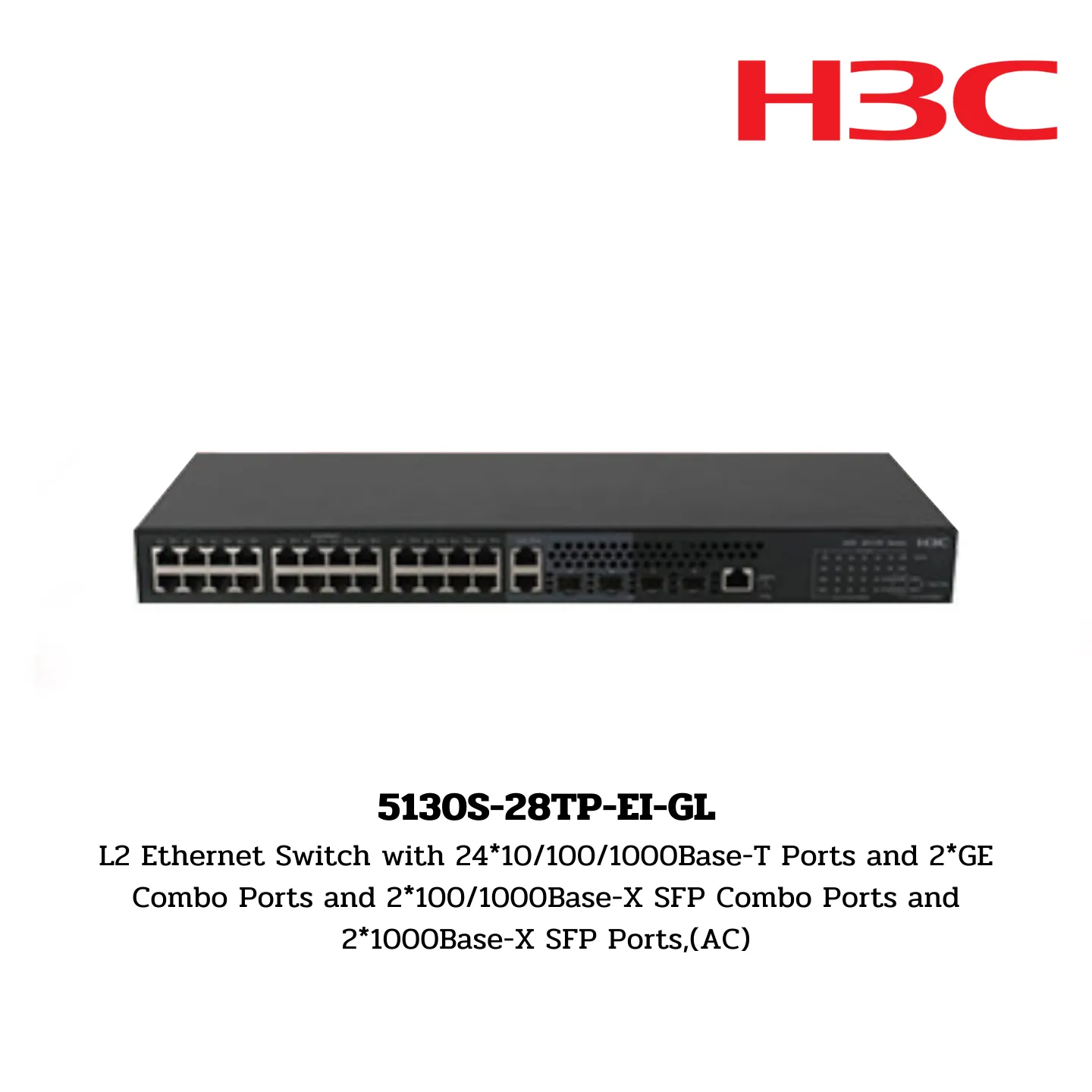

Switch H3C รุ่น 5130S-28TP-EI-GL

5130S-28TP-EI-GL
L2 Ethernet Switch with 24*10/100/1000Base-T Ports and 2*GE Combo Ports and 2*100/1000Base-X SFP Combo Ports and 2*1000Base-X SFP Ports,(AC)

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 56Gbps

Forwarding Capacity:

• 42Mpps

Box Switching Capacity:

• 336Gbps

CPU:

• 1 Core, 800MHz

Flash/SDRAM:

• 256MB/512MB

Latency (64 byte/µs):

• GE: < 5µs
• 10GE: < 3µs

Dimensions (W × D × H):

• 440 × 160 × 43.6 mm

Weight:

• ≤2kg

10/100/1000 Base-T Ports:

• 26 (2 SFP combo)

SFP Ports:

• 2

SFP+ Ports:

• /

Multigiga Ports:

• /

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Stacking Number:

• 9

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz

Power Consumption (full configuration):

• MIN: AC: 10W
• MAX: AC: 24W

Fan Number:

• Fanless

MTBF (Mean Time Between Failures):

• 97.94 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with maximum transmission distance < 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
