S5570S-36F-EI-GL H3C S5570S Series Switch

S5570S-36F-EI-GL

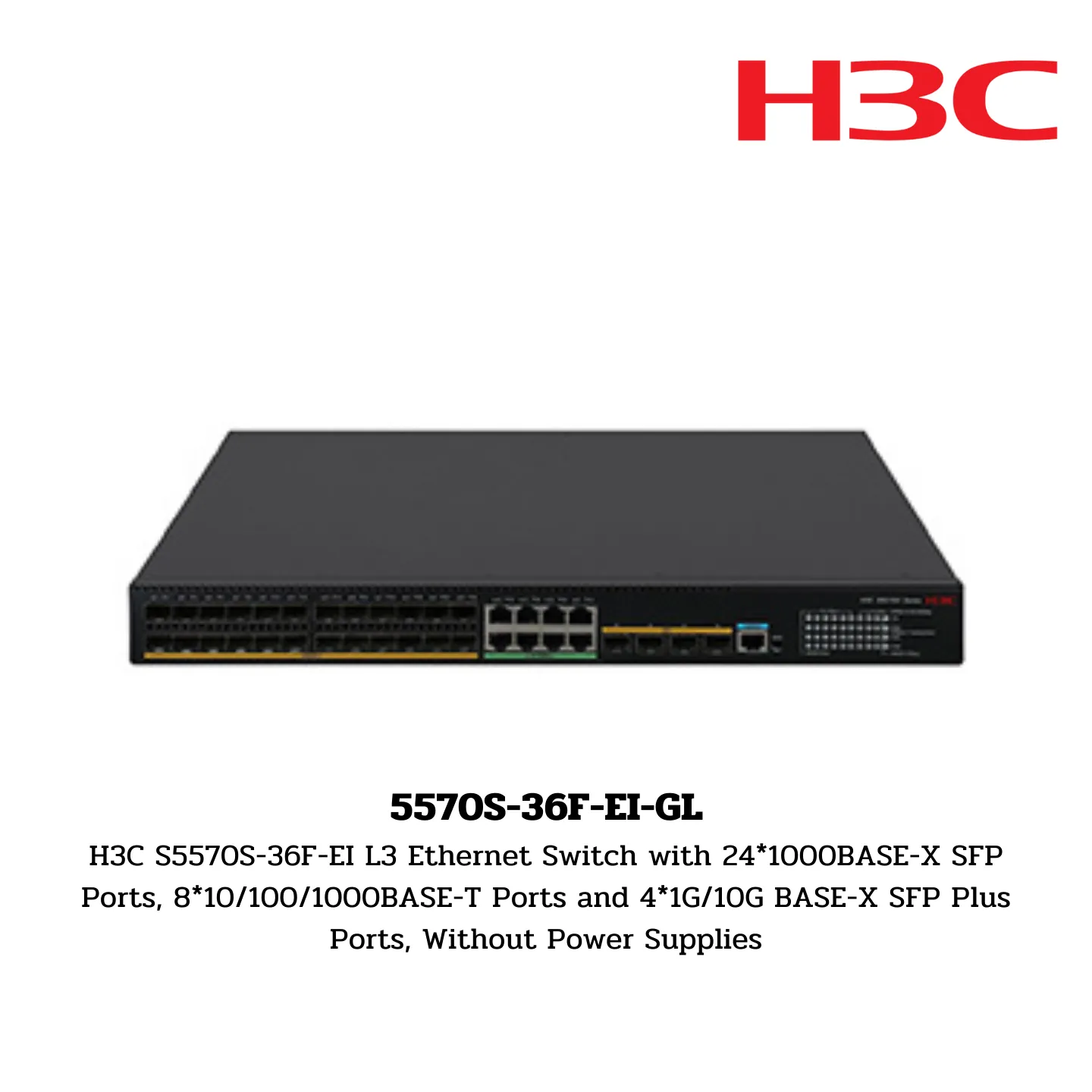

H3C S5570S-36F-EI L3 Ethernet Switch with 24*1000BASE-X SFP Ports, 8*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports, Without Power Supplies

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 144Gbps

System Switching Capacity:

• 598Gbps

Packet Forwarding Rate:

• 108Mpps

Flash:

• 512MB

SDRAM:

• 1GB

Buffer (bytes):

• 2MB

CPU:

• 1GHz, 2 Cores

Console Ports:

• 1 console port (RJ45)

Ethernet Management:

• /

USB Port:

• /

Service Ports:

• 24 × 100/1000Base-X SFP ports
• 8 × 10/100/1000Base-T ports
• 4 × 10G SFP+ ports

PoE+:

• /

Dimensions (W × D × H):

• 440 × 360 × 43.6 mm

Weight:

• ≤4.5kg

Input Voltage:

• AC Input:
  • Rated voltage range: 100V ~ 240V AC, 50/60Hz
  • Maximum voltage range: 90V ~ 264V AC, 47 ~ 63Hz
• DC Input:
  • Rated voltage range: -48V ~ -60V DC
  • Maximum voltage range: -36V ~ -72V DC

80 PLUS Certified:

Power Consumption (Static):

• Single AC: 29W
• Single DC: 30W
• Dual AC: 35W
• Dual DC: 35W

Power Consumption (Full Load):

• Single AC: 52W
• Single DC: 54W
• Dual AC: 58W
• Dual DC: 60W

Fan:

• 3

MTBF (Mean Time Between Failures):

• 67.03 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 45℃

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%

MAC Address Entries:

• 32,768

VLAN Table:

• 4094

VLAN Interface:

• 1022

IPv4 Routing Entries:

• 12,288

IPv4 ARP Entries:

• 8192

IPv4 ACL Entries:

• VFP: 384
• Ingress: 1280
• Egress: 768

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 4000

IPv6 Unicast Routing Entries:

• 4096

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• VFP: 384
• Ingress: 1280
• Egress: 768

IPv6 ND Entries:

• 4096

IPv6 Multicast L2 Entries:

• 2000

IPv6 Multicast L3 Entries:

• 2000

Jumbo Frame Length (Bytes):

• 12,288

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Number in One Link Group:

• 8

Link Group Number:

• 126
