S5570S-54S-PWR-EI-A-GL H3C S5570S Series Switch

S5570S-54S-PWR-EI-A-GL

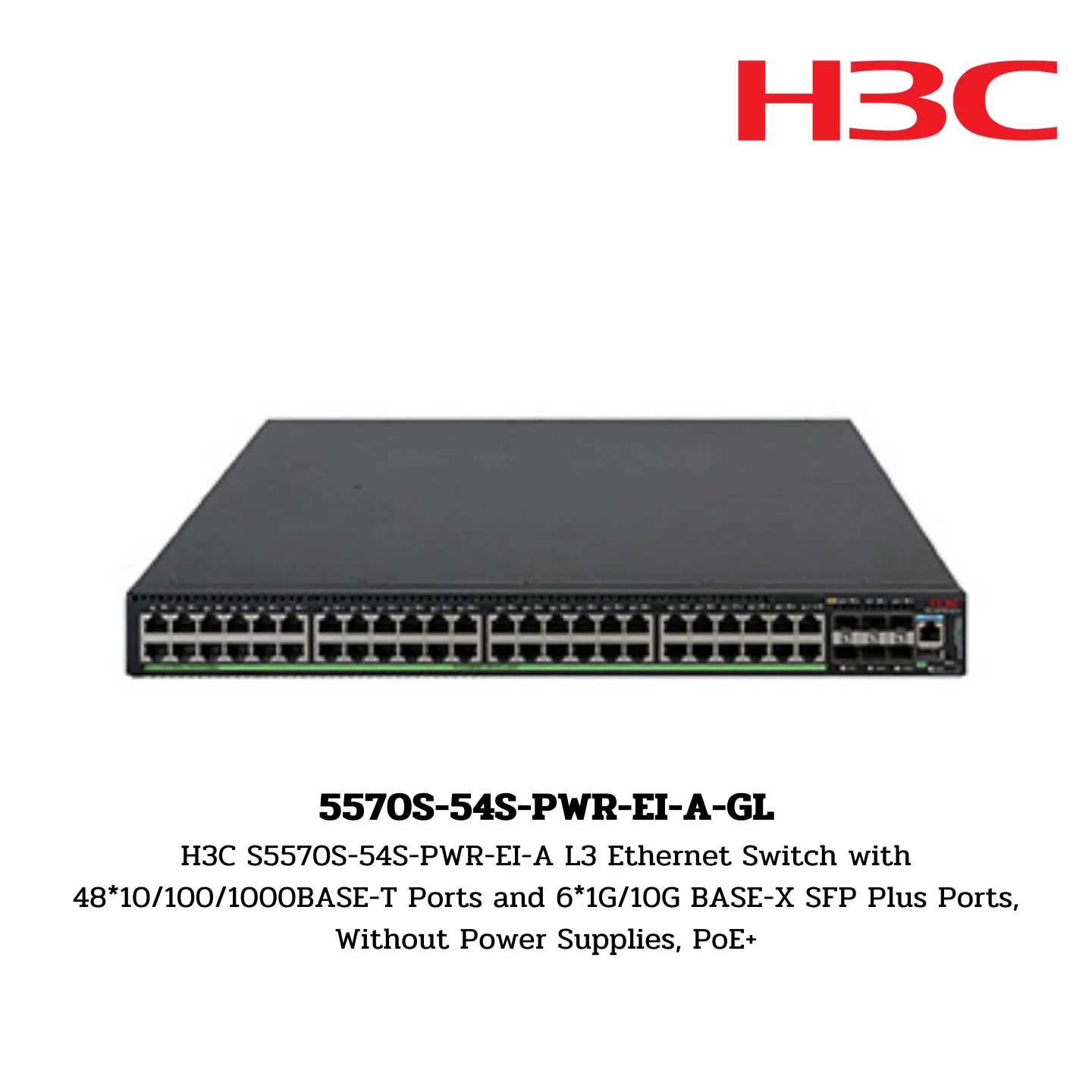

H3C S5570S-54S-PWR-EI-A L3 Ethernet Switch with 48*10/100/1000BASE-T Ports and 6*1G/10G BASE-X SFP Plus Ports, Without Power Supplies, PoE+

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 216Gbps

System Switching Capacity:

• 598Gbps

Packet Forwarding Rate:

• 161Mpps

Flash:

• 512MB

SDRAM:

• 1GB

Buffer (bytes):

• 2MB

CPU:

• 1GHz, 2 Cores

Console Ports:

• 1 console port (RJ45)

Ethernet Management:

• /

USB Port:

• 1

Service Ports:

• 48 × 10/100/1000Base-T adaptive Ethernet ports
• 6 × 10G SFP+ ports

PoE+:

• Yes

Dimensions (W × D × H):

• 440 × 400 × 43.6 mm

Weight:

• ≤7.5kg

Input Voltage:

• Rated Voltage Range: 100V～240V AC, 50/60Hz
• Maximum Voltage Range: 90V～290V AC, 47～63Hz

80 PLUS Certified:

• Yes (80PLUS Platinum)

Power Consumption (Static):

• Single: 42W
• Dual: 50W

Power Consumption (Full Load):

• Single: 1668W (PoE is 1530W)
• Dual: 1935W (PoE is 1680W)

Fan:

• 2

MTBF (Mean Time Between Failures):

• 74.5 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 45℃

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%

MAC Address Entries:

• 32,768

VLAN Table:

• 4094

VLAN Interface:

• 1022

IPv4 Routing Entries:

• 12,288

IPv4 ARP Entries:

• 8192

IPv4 ACL Entries:

• VFP: 384
• Ingress: 1280
• Egress: 768

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 4000

IPv6 Unicast Routing Entries:

• 4096

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• VFP: 384
• Ingress: 1280
• Egress: 768

IPv6 ND Entries:

• 4096

IPv6 Multicast L2 Entries:

• 2000

IPv6 Multicast L3 Entries:

• 2000

Jumbo Frame Length (Bytes):

• 12,288

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 80Gbps

Maximum Number in One Link Group:

• 8

Link Group Number:

• 126
