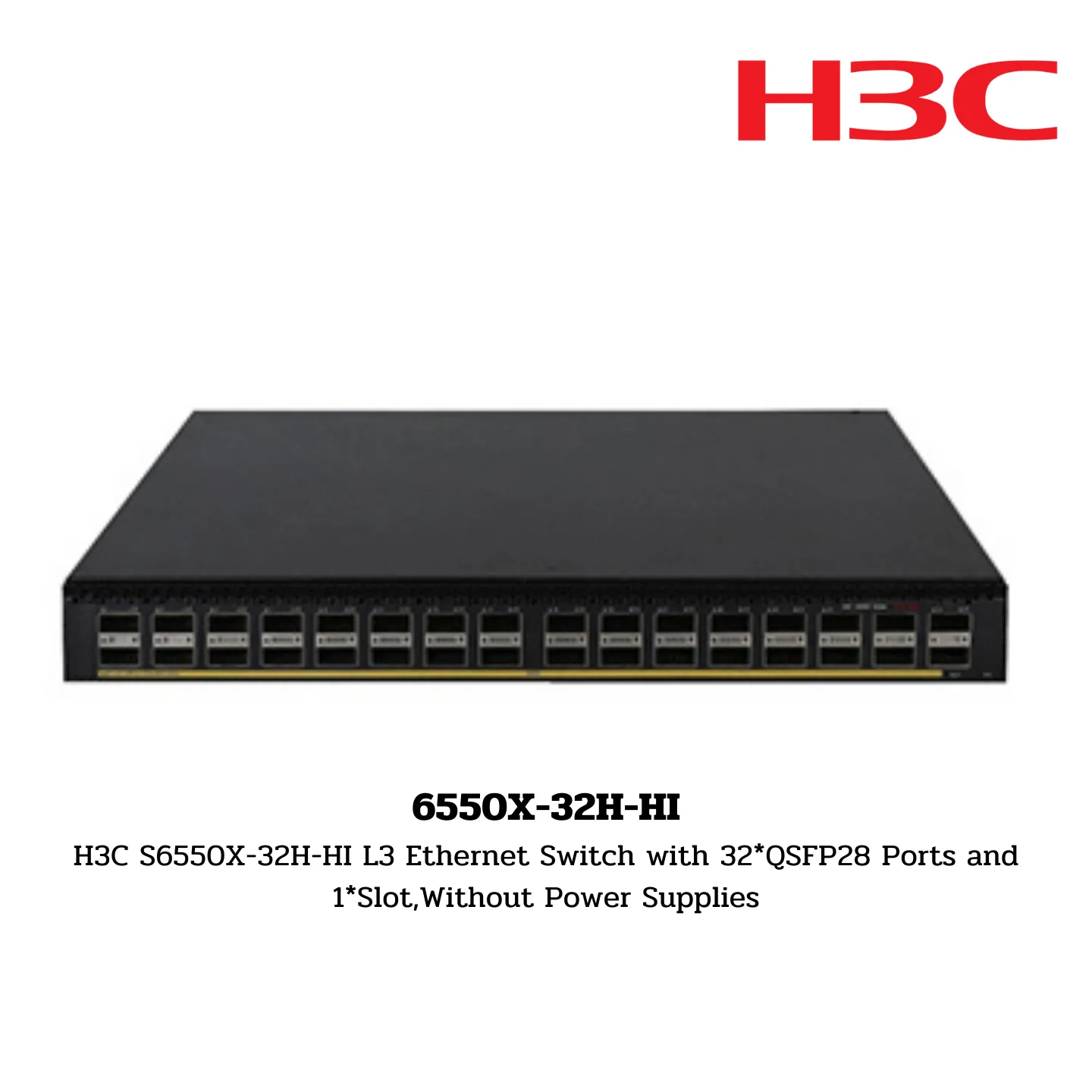

S6550X-32H-HI H3C S6500X Series Switch

S6550X-32H-HI
L3 Ethernet Switch with 32*QSFP28 Ports and 1*Slot,Without Power Supplies

Hardware Specifications

SFP28 Port:

• None

QSFP28 Port:

• 32

QSFP+ Port:

• None

Port Switching Capacity:

• 6.4T

Packet Forwarding Rate:

• 2800Mpps

Weight (Full Loaded):

• ≤ 9kg

Dimensions (W × D × H):

• 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in)

CPU Cores:

• 4

CPU Frequency:

• 2.0GHz

Packet Buffer:

• 24MB

Flash/SDRAM:

• 4GB/8GB

Serial Console Port:

• 1

Out-of-Band Management Port:

• 1 × 10/100/1000Base-T

USB Port:

• 1

Expansion Slot:

• 1

AC-Input Voltage:

• 100V to 240V

DC-Input Voltage:

• 48V to 64V

Power Consumption (Static):

• Single AC: 81.54W
• Single DC: 82.56W
• Dual AC: 92.53W
• Dual DC: 90.28W

Power Consumption (Full Load):

• Single AC: 390.5W
• Single DC: 410.1W
• Dual AC: 386.3W
• Dual DC: 404.2W

Power Module Slot:

• 2

Fan Tray Slot:

• 4

Air Flow Direction:

• From front to rear or from rear to front

Operating Temperature:

• -5℃ to 45℃

Operating Humidity:

• 5% to 95%
