S6520X-54HF-HI H3C S6500X Series Switch

6520X-54HF-HI

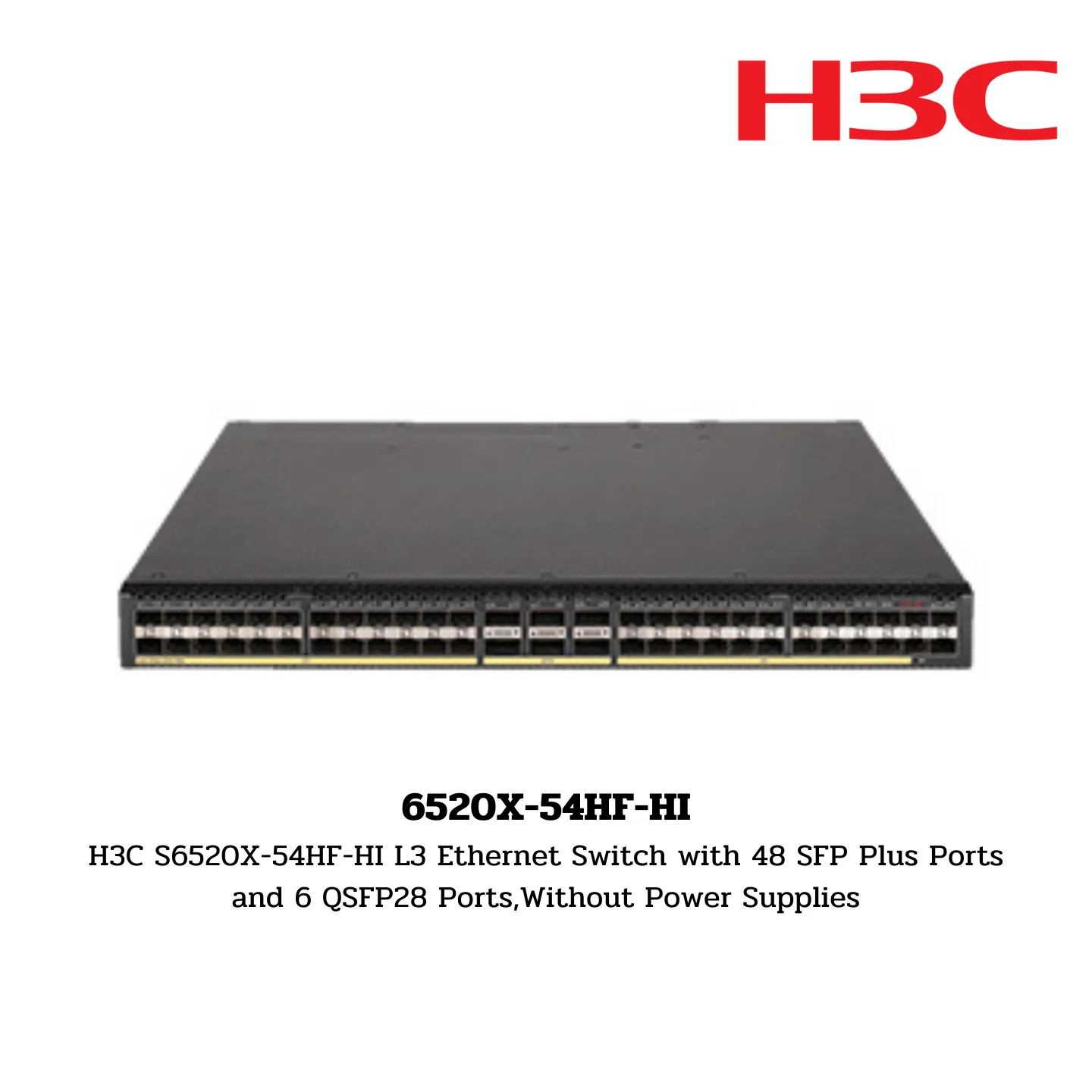

H3C S6520X-54HF-HI L3 Ethernet Switch with 48 SFP Plus Ports and 6 QSFP28 Ports,Without Power Supplies

Brand:

• H3C

Hardware Specifications

CPU:

• Dual-Core, 1.6GHz

Port Switching Capacity:

• 2160Gbps

Packet Forwarding Rate:

• 1050Mpps

Box Switching Capacity:

• 2.56Tbps

Dimensions (W × D × H):

• 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤6.5kg

Flash/SDRAM:

• 1GB/2GB

Packet Buffer:

• 12MB

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Micro USB Ports:

• 1

Service Ports:

• 48 × SFP+ ports
• 6 × QSFP28 ports

Expansion Slots:

• N/A

Compatible Interface Modules:

• N/A

Input Voltage Range:

• Rated voltage range: 100 to 240 VAC @ 50/60 Hz
• Maximum voltage range: 90 to 264 VAC @ 47 to 63 Hz

Power Supply Slots:

• 2

Fan Trays:

• 3 hot swappable fan trays, invertible airflow

Power Consumption:

• Minimum:
  • Single AC: 36W
  • Dual AC: 44W
• Maximum:
  • Single AC: 177W
  • Dual AC: 176W

Operating Temperature:

• 0ºC to 45ºC (32ºF to 113ºF)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33ºC for every 100m increase in altitude.

Storage Temperature:

• -40ºC to 70ºC (-40ºF to 158ºF)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 60.8 years

MTTR (Mean Time to Repair):

• 1 hour

MAC Address Entries (max):

• 262,144

VLAN Table:

• 4094

VLAN Interface:

• 1024

IPv4 Routing Entries (max):

• 131,072

IPv4 ARP Entries (max):

• 131,072

IPv4 ACL Entries:

• Ingress: 4096
• Egress: 512

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 4000

IPv6 Unicast Routing Entries (max):

• 65,792

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• Ingress: 4096
• Egress: 512

IPv6 ND Entries (max):

• 65,792

IPv6 Multicast L2 Entries:

• 2000

IPv6 Multicast L3 Entries:

• 2000

Jumbo Frame Length (Bytes):

• 10000

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 480Gbps
