S6520X-54HC-UPWR-EI H3C S6500X Series Switch

S6520X-54HC-UPWR-EI

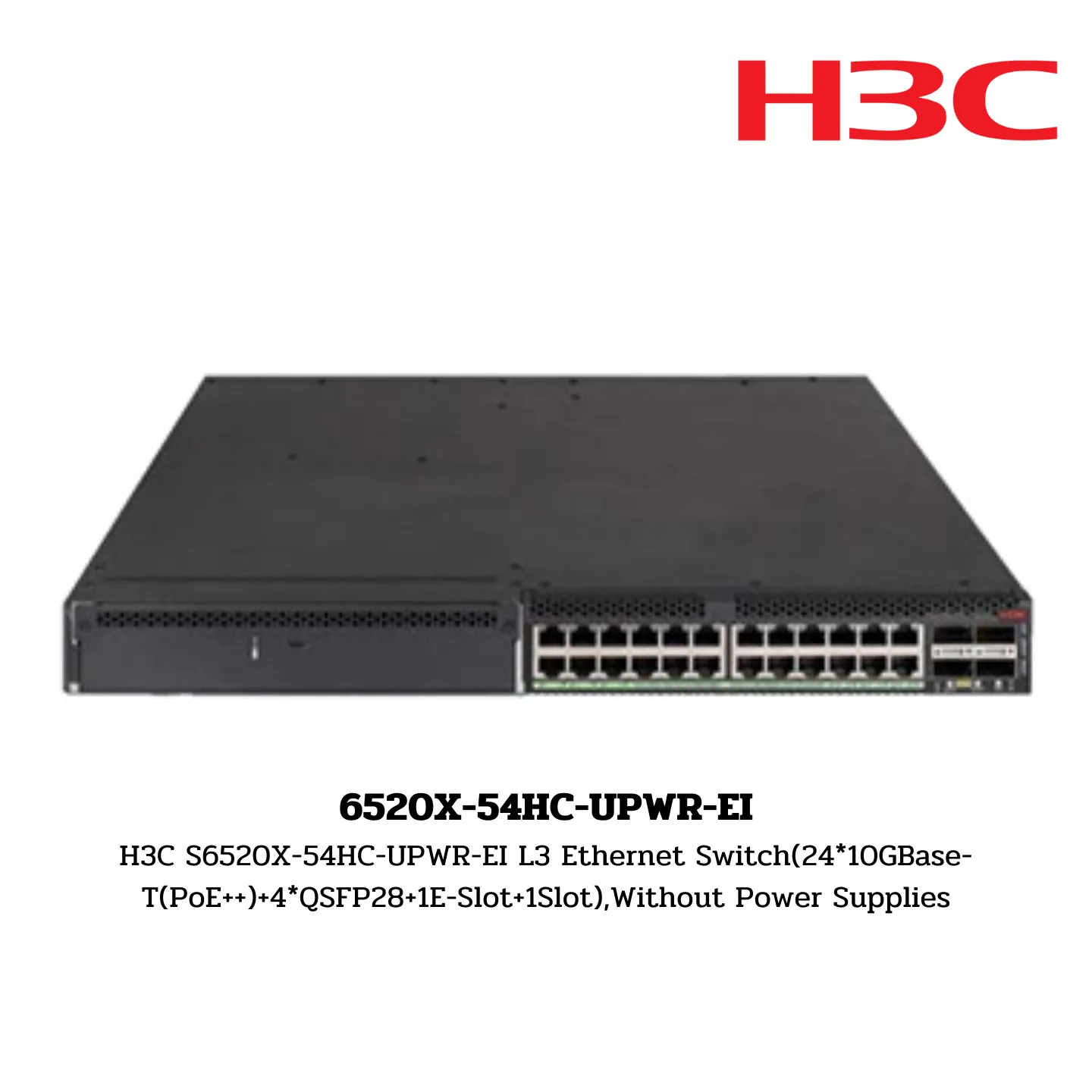

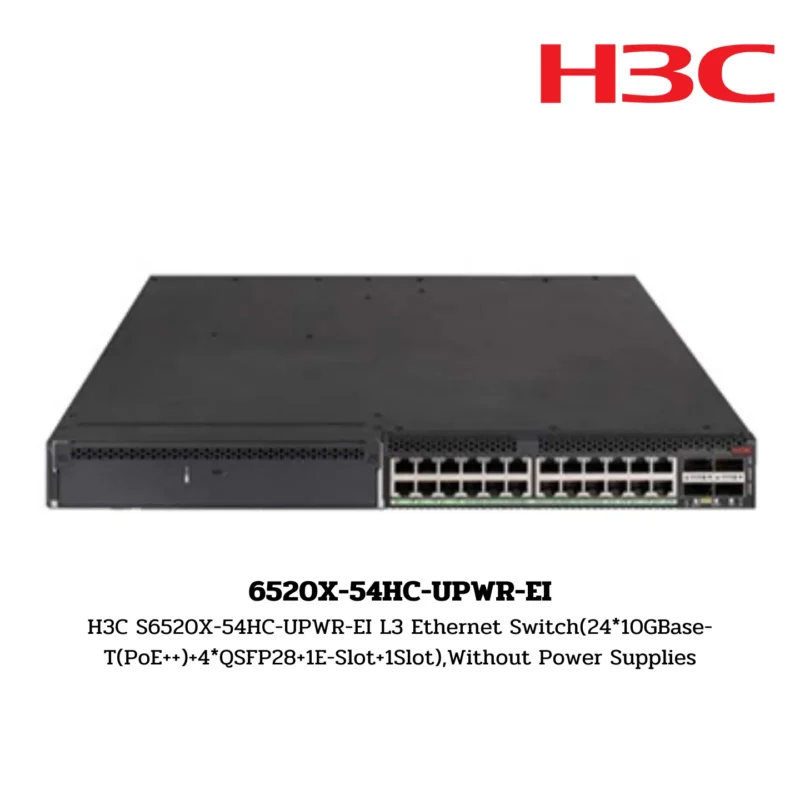

H3C S6520X-54HC-UPWR-EI L3 Ethernet Switch(24*10GBase-T(PoE++)+4*QSFP28+1E-Slot+1Slot),Without Power Supplies

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 2160Gbps

Packet Forwarding Rate:

• 1050Mpps

Box Switching Capacity:

• 2.56Tbps

Dimensions (W × D × H):

• 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤9.6kg

CPU:

• 4 Core, 2.0GHz

SDRAM:

• 4GB

Flash:

• 1GB

Packet Buffer:

• 10MB

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Service Ports:

• 24 × 10GBase-T (PoE++) + 24 optional ports (1G/2.5G/5G/10G Base-T Multi-giga)
• 4 × QSFP28 ports

Expansion Slots:

• 2

Expansion Modules:

• Front Slot:
  • 24 × 10G/1G SFP+ ports module
  • 24 × 100M/1G/2.5G/5G/10G Base-T PoE++ Ports module
• Rear Slot:
  • As shown in “Removable Components Matrix”

Input Voltage Range:

• AC Power Supply:
  • Rated voltage range: 100 to 240 VAC @ 50/60 Hz
  • Maximum voltage range: 90 to 290 VAC @ 47 to 63 Hz

80 PLUS Certified:

• Yes (80PLUS Platinum)

Fan Trays:

• 2 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow

Idle Power Consumption:

• 30% of traffic load, tested according to ATIS standard:
  • Host + SFP module:
    • Single AC: 74W
    • Dual AC: 89W
  • Host + Ethernet module:
    • Single AC: 69W
    • Dual AC: 82W

Max Power Consumption:

• 100% throughput, full speed of fans:
  • Host + SFP module:
    • Single AC: 1580W
    • Dual AC: 2487W
  • Host + Ethernet module:
    • Single AC: 1595W
    • Dual AC: 3061W

Operating Temperature:

• 0℃ to 45℃ (32℉ to 113℉)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33℃ for every 100m increase in altitude.

Storage Temperature:

• -40℃ to 70℃ (-40℉ to 158℉)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 61.7 years

MTTR (Mean Time to Repair):

• 1 hour
