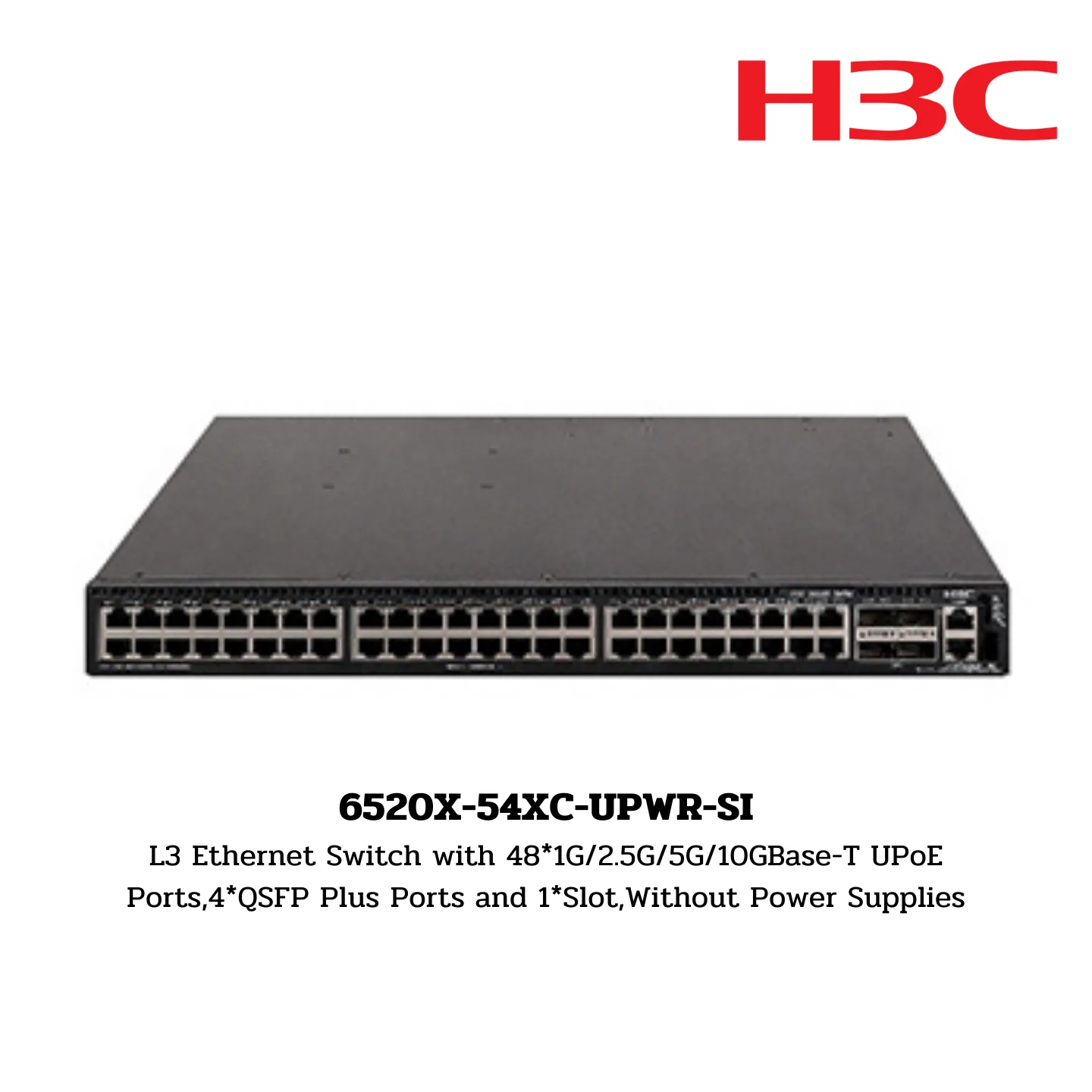

S6520X-54XC-UPWR-SI H3C S6500X Series Switch

S6520X-54XC-UPWR-SI
L3 Ethernet Switch with 48*1G/2.5G/5G/10GBase-T UPoE Ports,4*QSFP Plus Ports and 1*Slot,Without Power Supplies

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 1440Gbps

Packet Forwarding Rate:

• 600Mpps

Box Switching Capacity:

• 1.44Tbps

CPU:

• Dual-Core, 1.6GHz

Flash/SDRAM:

• 1GB/2GB

Buffer:

• 3MB

Dimensions (W × D × H):

• 440 × 460 × 43.6 mm

Weight:

• ≤10.0kg

Service Ports:

• 48 × 100M/1G/2.5G/5G/10G Base-T (UPOE) + 4 × 40G QSFP+

Console Ports:

• 1 (rear panel)

Management Ethernet Ports:

• 1 (rear panel)

USB Ports:

• 1 (rear panel)

Expansion Slots:

• 1

Expansion Modules:

• 2-port 10G SFP+ with MACSec Interface Module
• 2-port 10G BASE-T with MACSec Interface Module
• 2-Port 10G SFP Plus Ethernet Optical Interface Module
• 8-Port 10G SFP+ with MACSec Interface Module
• 4-Port 10/100/1000BASE-T Ethernet, 6-Port SFP (2-Port Combo) Interface Module
• 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module
• 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module
• 2-port 25GE SFP28 interface module
• 2-port 40GE QSFP+ interface module

Fan Trays:

• 2

Power Supply Slots:

• 2

Idle Power Consumption:

• AC: 100W, DC: 85W

Max Power Consumption:

• AC: 2333W, DC: 1039W

Input Voltage Range:

• AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
• DC: -48V to -60V

Operating Temperature:

• 0ºC to 45ºC (32ºF to 113ºF)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33ºC for every 100m increase in altitude.

Storage Temperature:

• -40ºC to 70ºC (-40ºF to 158ºF)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 58.1 years

MTTR (Mean Time to Repair):

• 1 hour

MAC Address Entries (max):

• 32,768

VLAN Table:

• 4094

VLAN Interface:

• 1024

IPv4 Routing Entries (max):

• 8192

IPv4 ARP Entries (max):

• 16,384

IPv4 ACL Entries:

• Ingress: 1024
• Egress: 256

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 1500

IPv6 Unicast Routing Entries (max):

• 4096

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• Ingress: 1024
• Egress: 256

IPv6 ND Entries (max):

• 4864

IPv6 Multicast L2 Entries:

• 2000

IPv6 Multicast L3 Entries:

• 500

Jumbo Frame Length (Bytes):

• 10000

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 160Gbps

Maximum Number in One Link Group:

• 16

Link Group Number:

• 128
