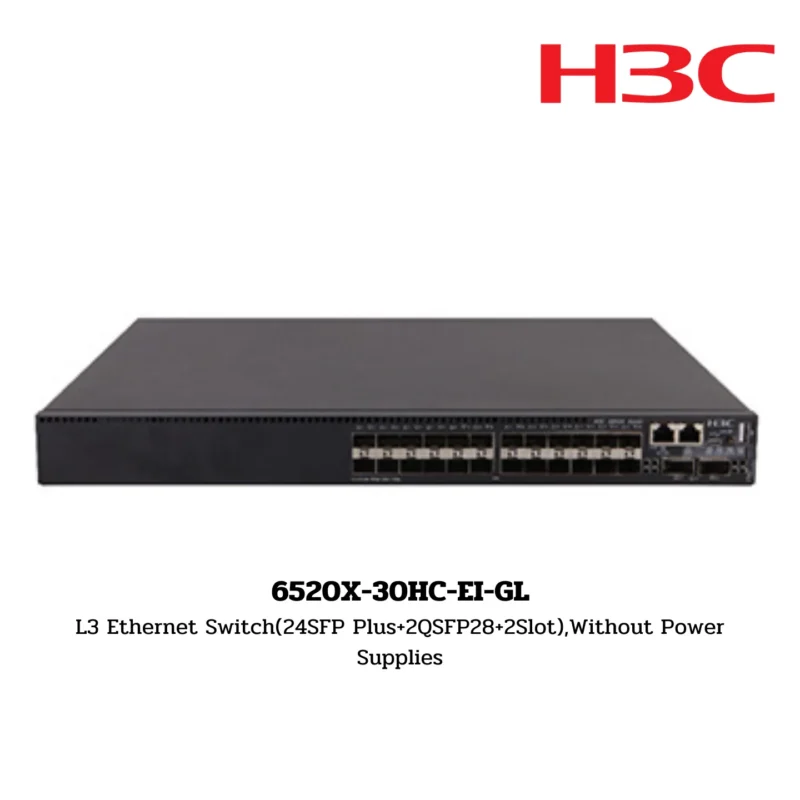

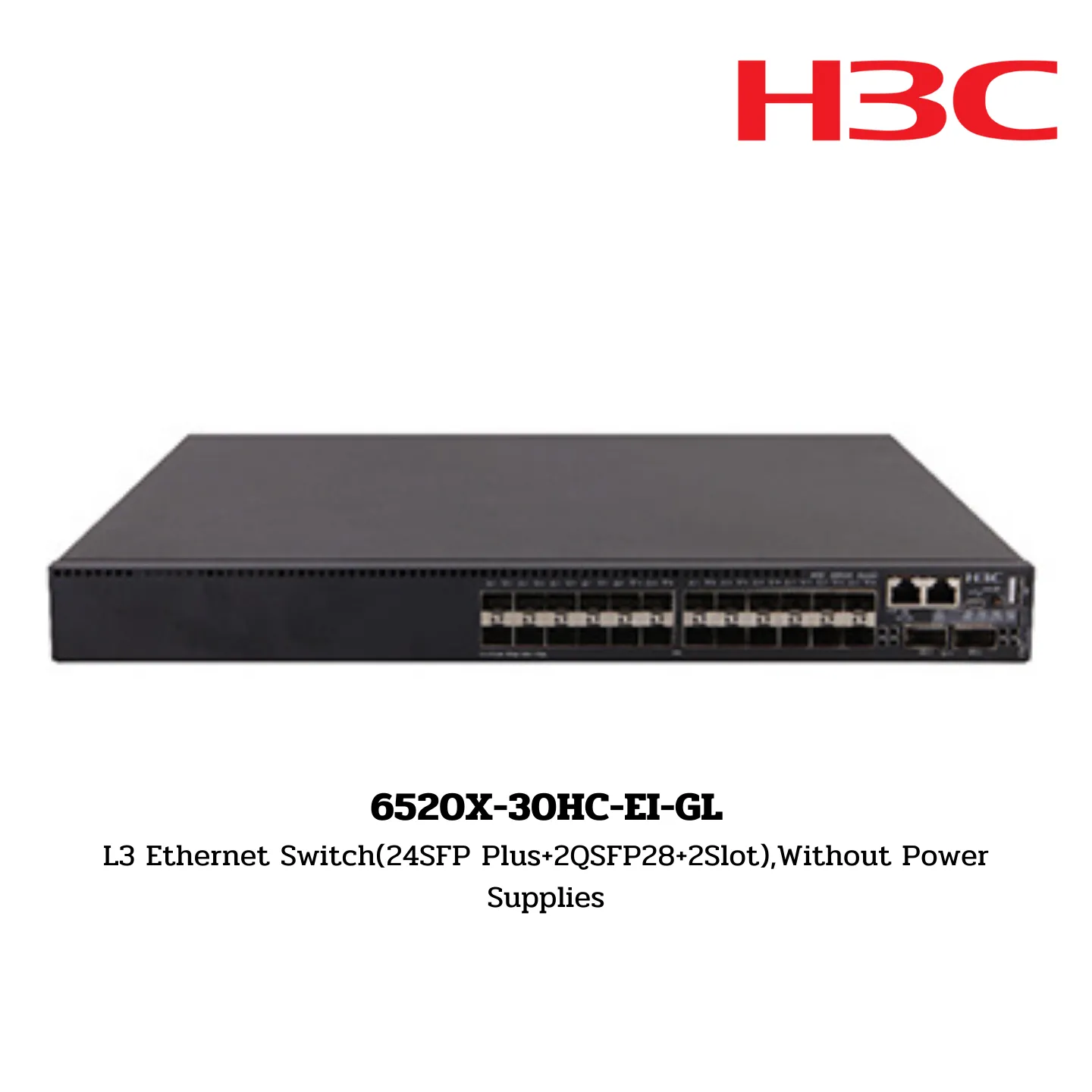

S6520X-30HC-EI-GL H3C S6500X Series Switch

S6520X-30HC-EI-GL
L3 Ethernet Switch(24SFP Plus+2QSFP28+2Slot),Without Power Supplies

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 1680Gbps

Packet Forwarding Rate:

• 705Mpps

Box Switching Capacity:

• 2.56Tbps

Dimensions (W × D × H):

• 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤7.4kg

CPU:

• Dual-Core, 1.6GHz

SDRAM:

• 2GB

Flash:

• 1GB

Packet Buffer:

• 10MB

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Service Ports:

• 24 × SFP+ ports

Expansion Slots:

• 2

Expansion Modules:

• 2-Port 10G SFP+ Ethernet Optical Interface Module
• 4-Port 10G SFP+ Ethernet Optical Interface Module
• 8-Port 10G SFP Plus Interface Card
• 8-Port 10G SFP+ with MACSec Interface Module
• 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module
• 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module
• 2-port 25GE SFP28 interface module
• 2-port 40GE QSFP+ interface module
• 8-port 25GE SFP28 interface module (for S6520X-54HC-EI)
• 2-port 100GE QSFP28 interface module (for S6520X-54HC-EI)

Input Voltage Range:

• AC Power Supply:
  • Rated voltage range: 100 to 240 VAC @ 50/60 Hz
  • Maximum voltage range: 90 to 290 VAC @ 47 to 63 Hz
  • High voltage input: 240V DC
• DC Power Supply:
  • Rated voltage range: –48 to –60VDC
  • Maximum voltage range: –36 to –72VDC

Fan Trays:

• 2 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow

Power Supply Slots:

• 2 (hot swappable)

Idle Power Consumption:

• 30% of traffic load, tested according to ATIS standard:
  • Single: AC: 38W, DC: 43W

Max Power Consumption:

• 100% throughput, full speed of fans:
  • AC: 197W, DC: 200W

Operating Temperature:

• 0℃ to 45℃ (32℉ to 113℉)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33℃ for every 100m increase in altitude.

Storage Temperature:

• -40℃ to 70℃ (-40℉ to 158℉)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 63.4 years

MTTR (Mean Time to Repair):

• 1 hour
