S6530X-24Y8C H3C S6500X Series Switch

S6530X-24Y8C

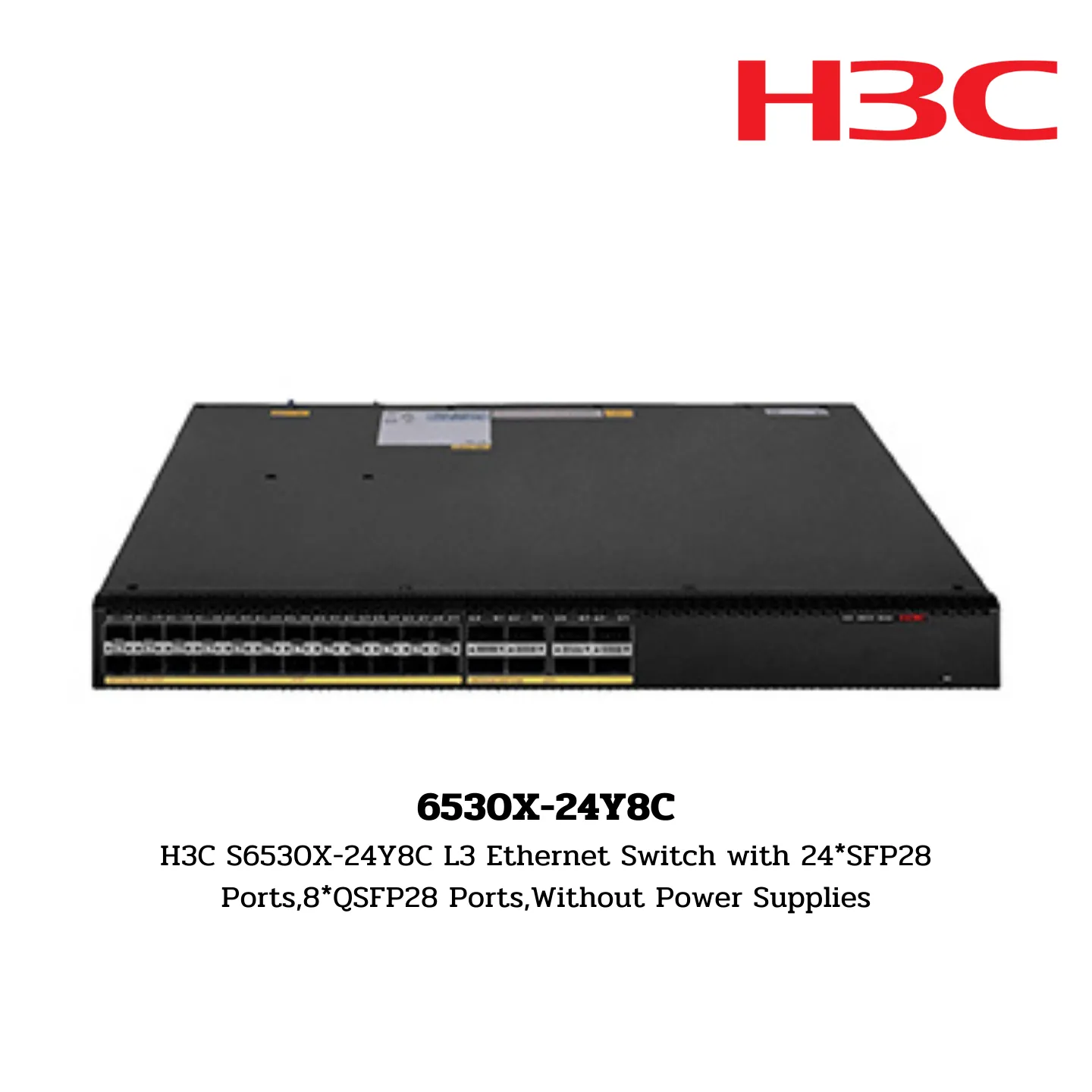

H3C 6530X-24Y8C L3 Ethernet Switch with 24*SFP28 Ports,8*QSFP28 Ports,Without Power Supplies

Hardware Specifications

CPU:

• Quad core, 2GHz

Flash/SDRAM:

• 4GB/4GB

Packet Buffer:

• 36MB

Box Switching Capacity:

• 4.8Tbps

Port Switching Capacity:

• 2.8Tbps

Packet Forwarding Rate:

• 1800Mpps

Latency:

• 25GE: <3 (64byte/us)
• 100GE: <1.2 (64byte/us)

Dimensions (W × D × H):

• 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in)

Weight:

• ≤7.3kg

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Service Ports:

• 24 × SFP+ ports
• 8 × QSFP28 ports

Power Supply Slots:

• 2

OSPF Areas:

• 128

OSPF Adjacencies:

• 512

VRF Number:

• 512

Interface Number per VRF:

• 512

Fan Trays:

• 5 hot swappable fan trays, invertible airflow

Input Voltage Range:

• AC:
  • Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
  • Maximum: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
• HVDC:
  • Rated voltage range: 240V DC
  • Maximum voltage range: 180V to 320V DC
• DC:
  • Rated voltage range: –48 to –60VDC
  • Maximum voltage range: –36 to –72VDC

Power Consumption:

• Minimum:
  • Single AC: 76W
  • Dual AC: 83W
• Maximum:
  • Single AC: 188W
  • Dual AC: 193W

Operating Temperature:

• -5ºC to 45ºC (23ºF to 113ºF)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33ºC for every 100m increase in altitude.

Storage Temperature:

• -40ºC to 70ºC (-40ºF to 158ºF)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 61.4 years

MTTR (Mean Time to Repair):

• 1 hour
