S6520X-54HF-EI H3C S6500X Series Switch

S6520X-54HF-EI

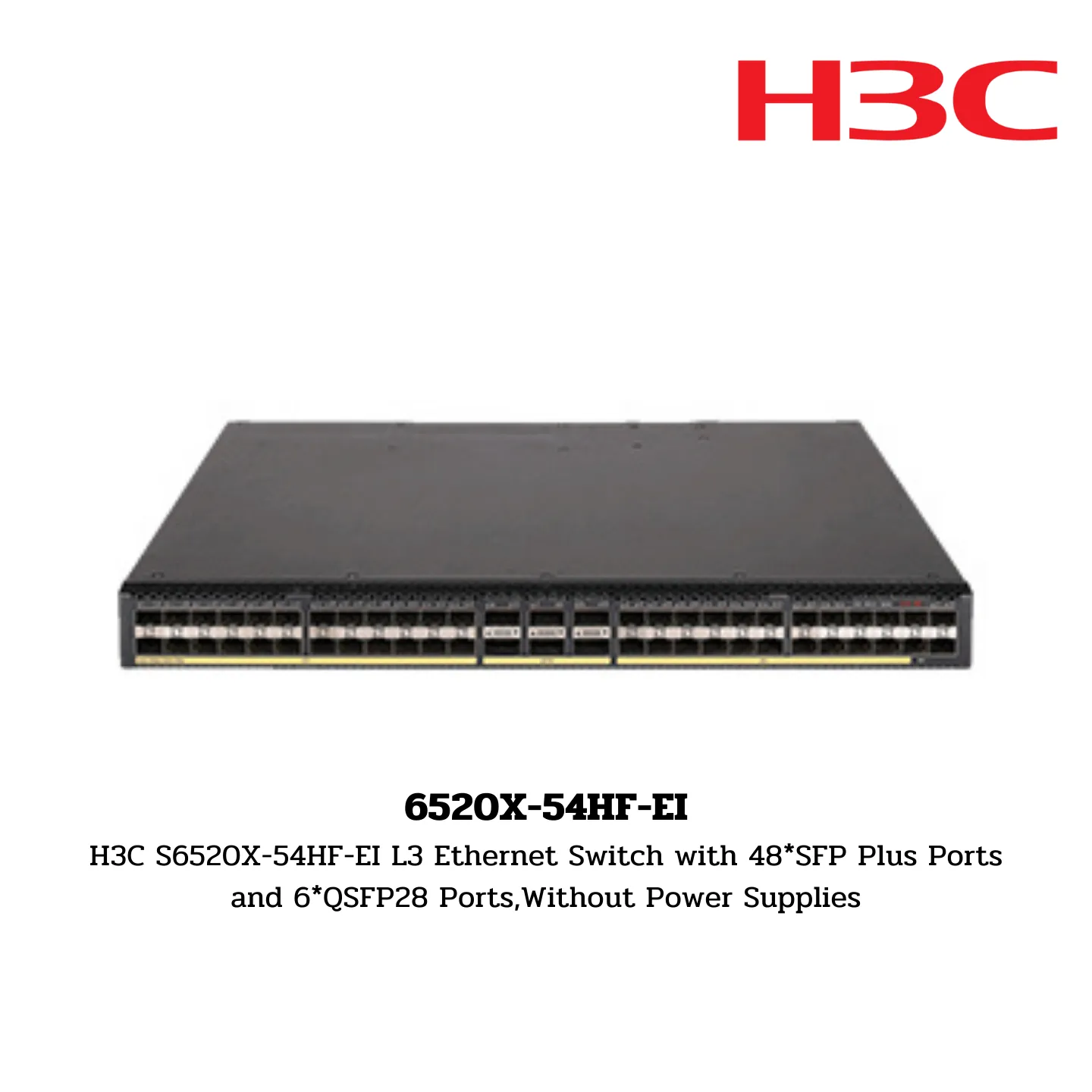

H3C S6520X-54HF-EI L3 Ethernet Switch with 48*SFP Plus Ports and 6*QSFP28 Ports,Without Power Supplies

Hardware Specifications

Port Switching Capacity:

• 2160Gbps

Packet Forwarding Rate:

• 600Mpps

Box Switching Capacity:

• 2.56Tbps

Dimensions (W × D × H):

• 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤6kg

CPU:

• 4 Core, 2.0GHz

SDRAM:

• 4GB

Flash:

• 1GB

Packet Buffer:

• 10MB

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Service Ports:

• 48 × SFP+ ports
• 6 × QSFP28 ports

Expansion Slots:

Expansion Modules:

• N/A

Input Voltage Range:

• AC Power Supply:
  • Rated voltage range: 100 to 240 VAC @ 50/60 Hz
  • Maximum voltage range: 90 to 290 VAC @ 47 to 63 Hz
  • High voltage input: 240V DC
• DC Power Supply:
  • Rated voltage range: –48 to –60VDC
  • Maximum voltage range: –36 to –72VDC

Fan Trays:

• 3 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow

Idle Power Consumption:

• 30% of traffic load, tested according to ATIS standard:
  • Single AC: 29W
  • Dual AC: 36W

Max Power Consumption:

• 100% throughput, full speed of fans:
  • Single AC: 163W
  • Dual AC: 162W

Operating Temperature:

• 0℃ to 45℃ (32℉ to 113℉)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33℃ for every 100m increase in altitude.

Storage Temperature:

• -40℃ to 70℃ (-40℉ to 158℉)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 60.8 years

MTTR (Mean Time to Repair):

• 1 hour
