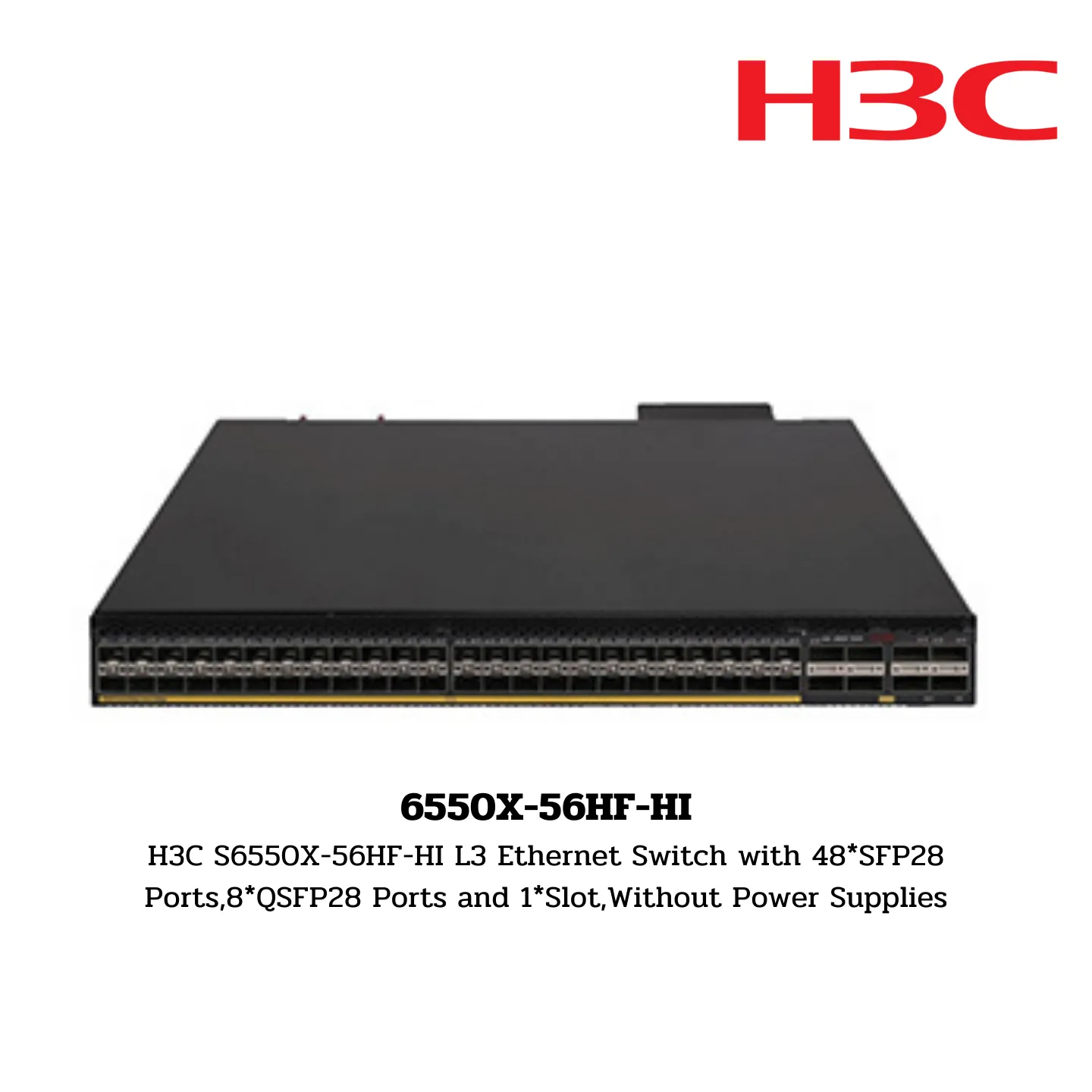

Switch H3C รุ่น 6550X-56HF-HI

6550X-56HF-HI
L3 Ethernet Switch with 48*SFP28 Ports,8*QSFP28 Ports and 1*Slot,Without Power Supplies

Hardware Specifications

SFP28 Port:

• 48

QSFP28 Port:

• 8

QSFP+ Port:

• None

Port Switching Capacity:

• 4.0T

Packet Forwarding Rate:

• 2800Mpps

Weight (Full Loaded):

• ≤ 9kg

Dimensions (W × D × H):

• 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in)

CPU Cores:

• 4

CPU Frequency:

• 2.0GHz

Packet Buffer:

• 24MB

Flash/SDRAM:

• 4GB/8GB

Serial Console Port:

• 1

Out-of-Band Management Port:

• 1 × 10/100/1000Base-T

USB Port:

• 1

Expansion Slot:

• 1

AC-Input Voltage:

• 100V to 240V

DC-Input Voltage:

• 48V to 64V

Power Consumption (Static):

• Single AC: 67.72W
• Single DC: 68.39W
• Dual AC: 77.86W
• Dual DC: 75.09W

Power Consumption (Full Load):

• Single AC: 315.4W
• Single DC: 324.5W
• Dual AC: 313.5W
• Dual DC: 328W

Power Module Slot:

• 2

Fan Tray Slot:

• 4

Air Flow Direction:

• From front to rear or from rear to front

Operating Temperature:

• -5℃ to 45℃

Operating Humidity:

• 5% to 95%
