Switch H3C รุ่น 6520X-30QC-HI-GL

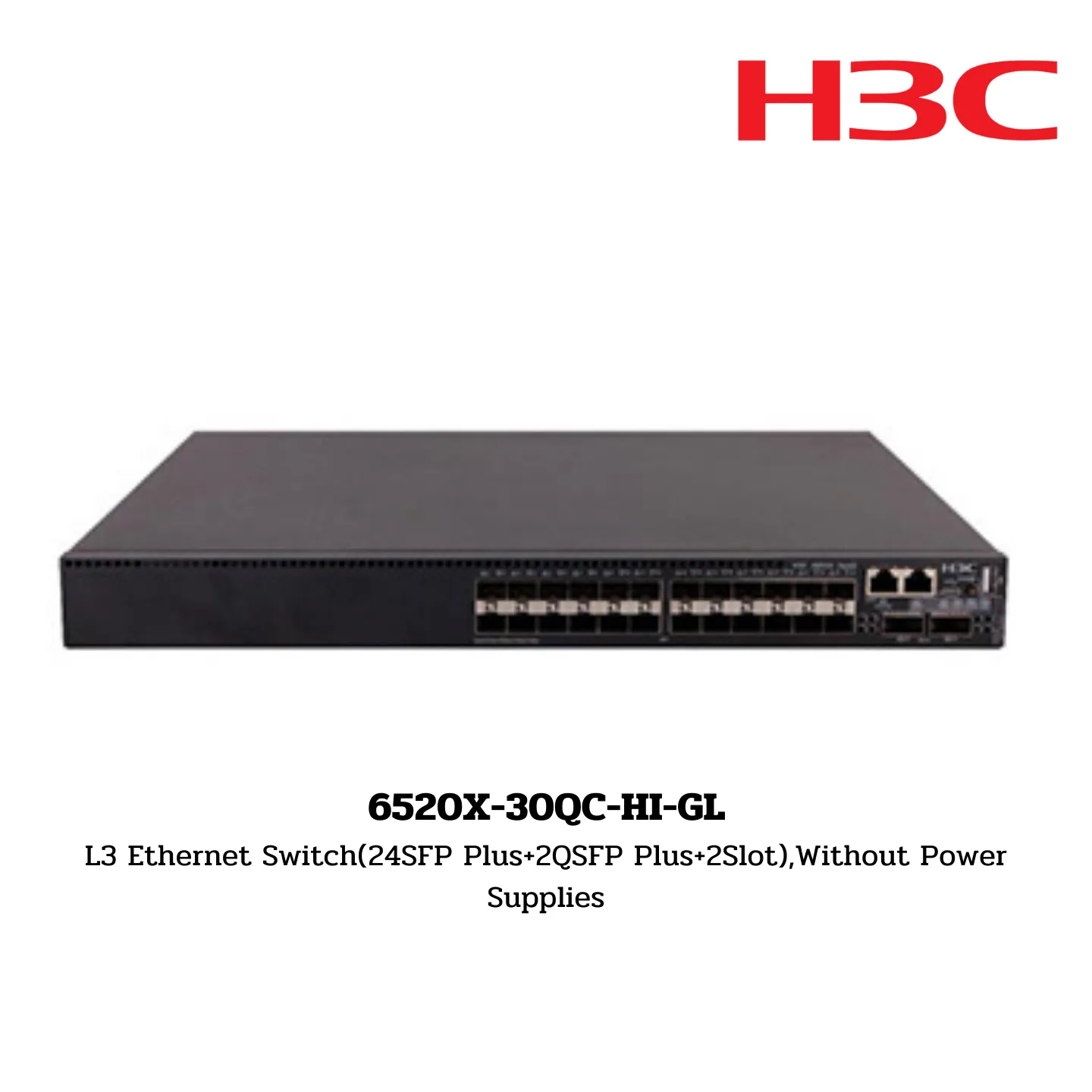

6520X-30QC-HI-GL
L3 Ethernet Switch(24SFP Plus+2QSFP Plus+2Slot),Without Power Supplies

Brand:

• H3C

Hardware Specifications

CPU:

• Dual-Core, 1.6GHz

Port Switching Capacity:

• 960Gbps

Packet Forwarding Rate:

• 705Mpps

Box Switching Capacity:

• 2.56Tbps

Dimensions (W × D × H):

• 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤7kg

Flash/SDRAM:

• 1GB/2GB

Packet Buffer:

• 12MB

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Micro USB Ports:

• 1

Service Ports:

• 24 × SFP+ ports
• 2 × QSFP+ ports

Expansion Slots:

• 2

Compatible Interface Modules:

• 2-Port 10G SFP Plus Ethernet Optical Interface Module
• 8-Port 10G SFP+ with MACSec Interface Module
• 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module
• 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module
• 2-port 25GE SFP28 interface module
• 2-port 40GE QSFP+ interface module
• 8-port 25GE SFP28 interface module (for S6520X-54HC-HI)
• 2-port 100GE QSFP28 interface module (for S6520X-54HC-HI)

Input Voltage Range:

• AC Power Supply:
  • Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
  • Maximum: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
• DC Power Supply:
  • Rated: –48 to –60VDC
  • Maximum: –36 to –72VDC

Power Supply Slots:

• 2

Fan Trays:

• 2 hot swappable fan trays, invertible airflow

Power Consumption:

• Minimum:
  • Single AC: 38W
  • Dual AC: 43W
• Maximum:
  • Single AC: 179W
  • Dual AC: 183W

Operating Temperature:

• 0ºC to 45ºC (32ºF to 113ºF)
• Altitude: From 0m to 5000m, the maximum operating temperature decreases by 0.33ºC for every 100m increase in altitude.

Storage Temperature:

• -40ºC to 70ºC (-40ºF to 158ºF)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 62.8 years

MTTR (Mean Time to Repair):

• 1 hour

MAC Address Entries (max):

• 262,144

VLAN Table:

• 4094

VLAN Interface:

• 1024

IPv4 Routing Entries (max):

• 131,072

IPv4 ARP Entries (max):

• 131,072

IPv4 ACL Entries:

• Ingress: 4096
• Egress: 512

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 4000

IPv6 Unicast Routing Entries (max):

• 65,792

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• Ingress: 4096
• Egress: 512

IPv6 ND Entries (max):

• 65,792

IPv6 Multicast L2 Entries:

• 2000

IPv6 Multicast L3 Entries:

• 2000

Jumbo Frame Length (Bytes):

• 10000

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 480Gbps
