Switch Aruba OS-CX HPE รุ่น R8N87A

R8N87A

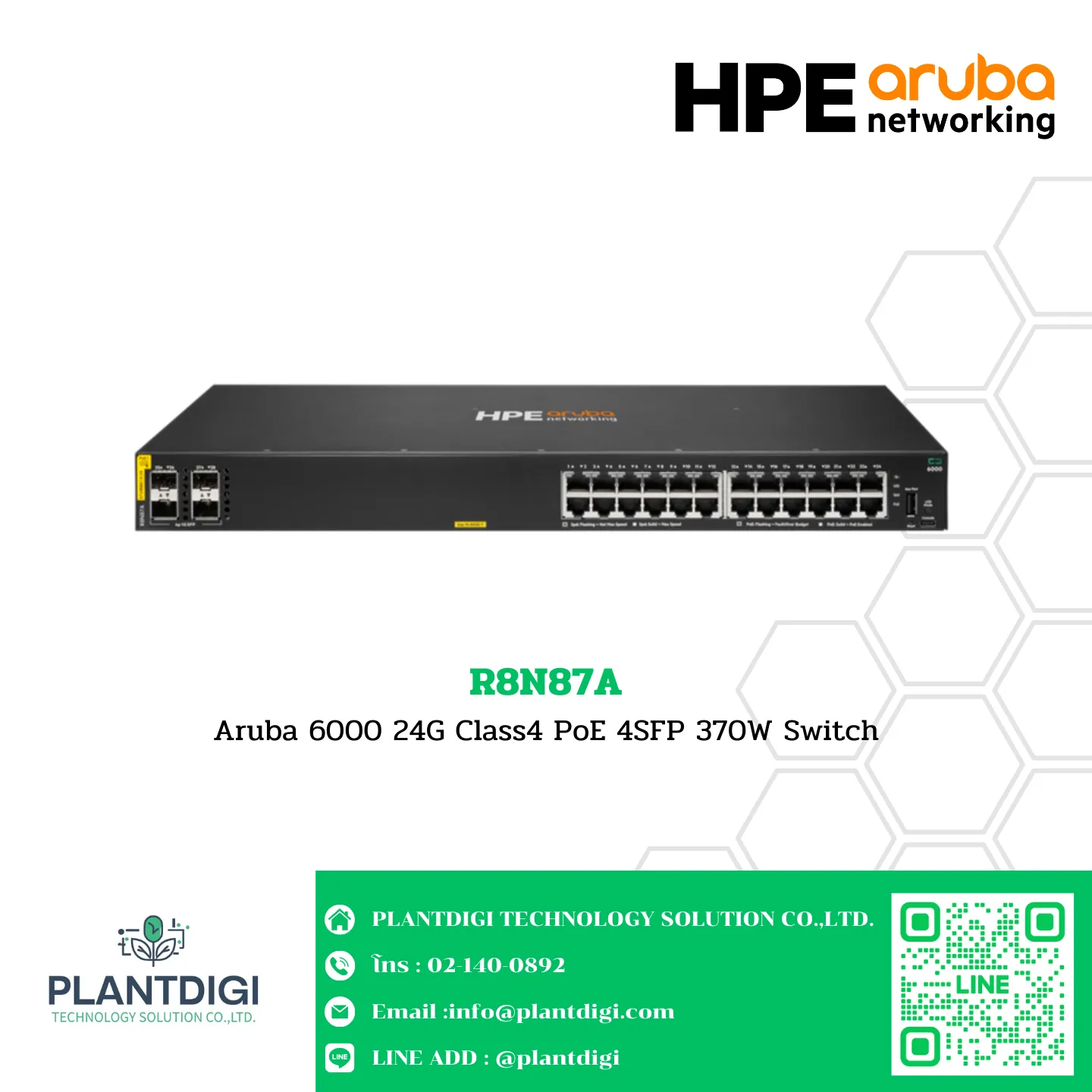

Aruba 6000 24G Class4 PoE 4SFP 370W Switch

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 32.7W
• Max Power (with PoE): 455W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• (24) 10/100/1000BASE-T ports
• (4) 1G SFP ports

Latency:

• 1 Gbps: 1.5 μs

Routing Capabilities:

• Static

Switching Capacity:

• 56 Gbps

Throughput:

• 41.6 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 8 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 370W Class 4 PoE/PoE+

Operating Temperature:

• 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
• Derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Weight:

• 4.2 kg (9.24 lbs)

Dimensions:

• 4.4 × 44.2 × 26.8 cm (1.73 × 17.4 × 10.56 in)
