Switch Aruba OS-CX HPE รุ่น R8N89A

R8N89A

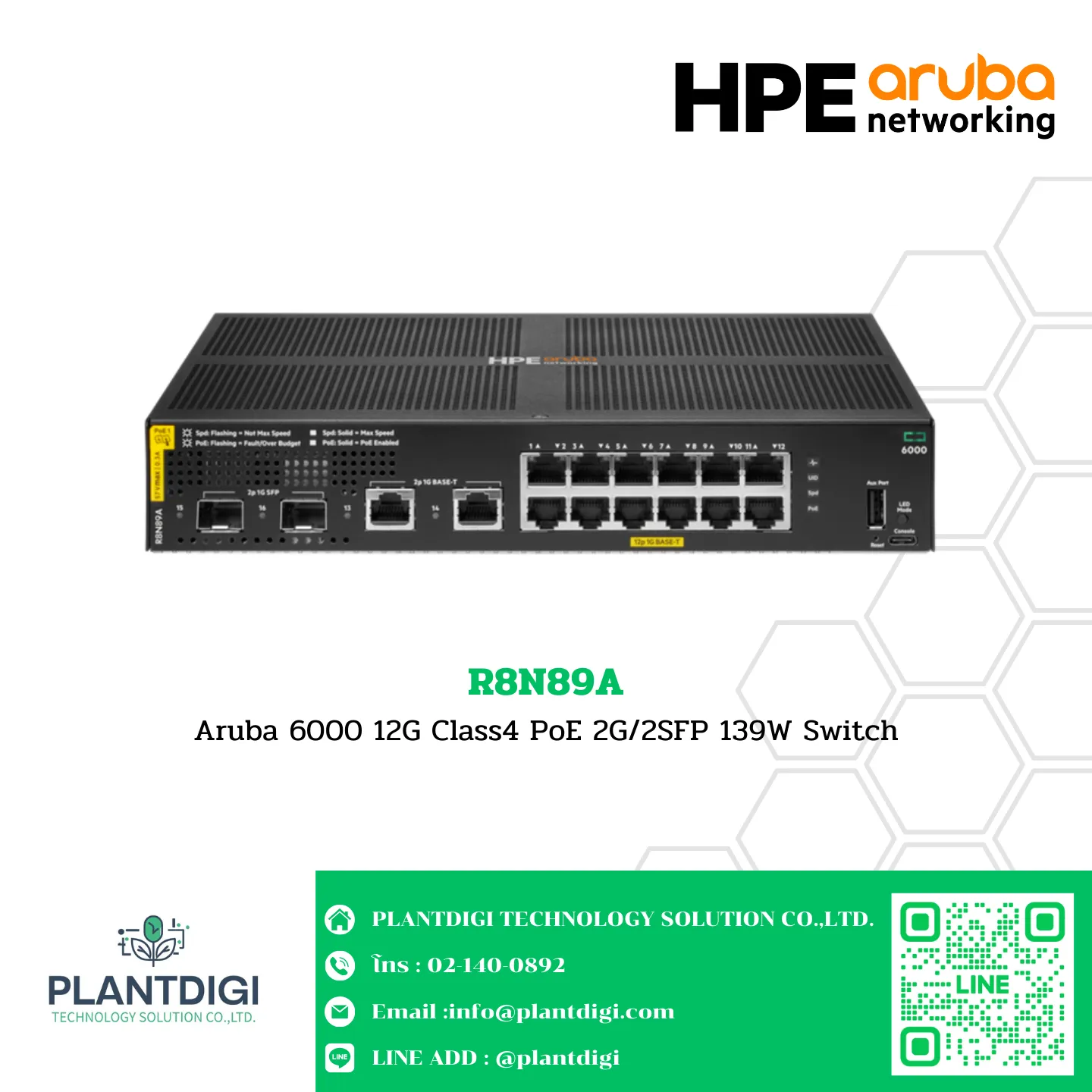

Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 21.9W
• Max Power (with PoE): 170W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• (12) 10/100/1000BASE-T ports
• (2) 1G SFP ports
• (2) 1GbE ports

Latency:

• 1 Gbps: 2.3 μs

Routing Capabilities:

• Static

Switching Capacity:

• 32 Gbps

Throughput:

• 23.8 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 8 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 139W Class 4 PoE/PoE+

Operating Temperature:

• 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
• Derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Weight:

• 2.8 kg (6.13 lbs)

Dimensions:

• 4.4 × 25.4 × 25.5 cm (1.73 × 10.0 × 10.4 in)
