Switch Aruba OS-CX HPE รุ่น JL724B

JL724B

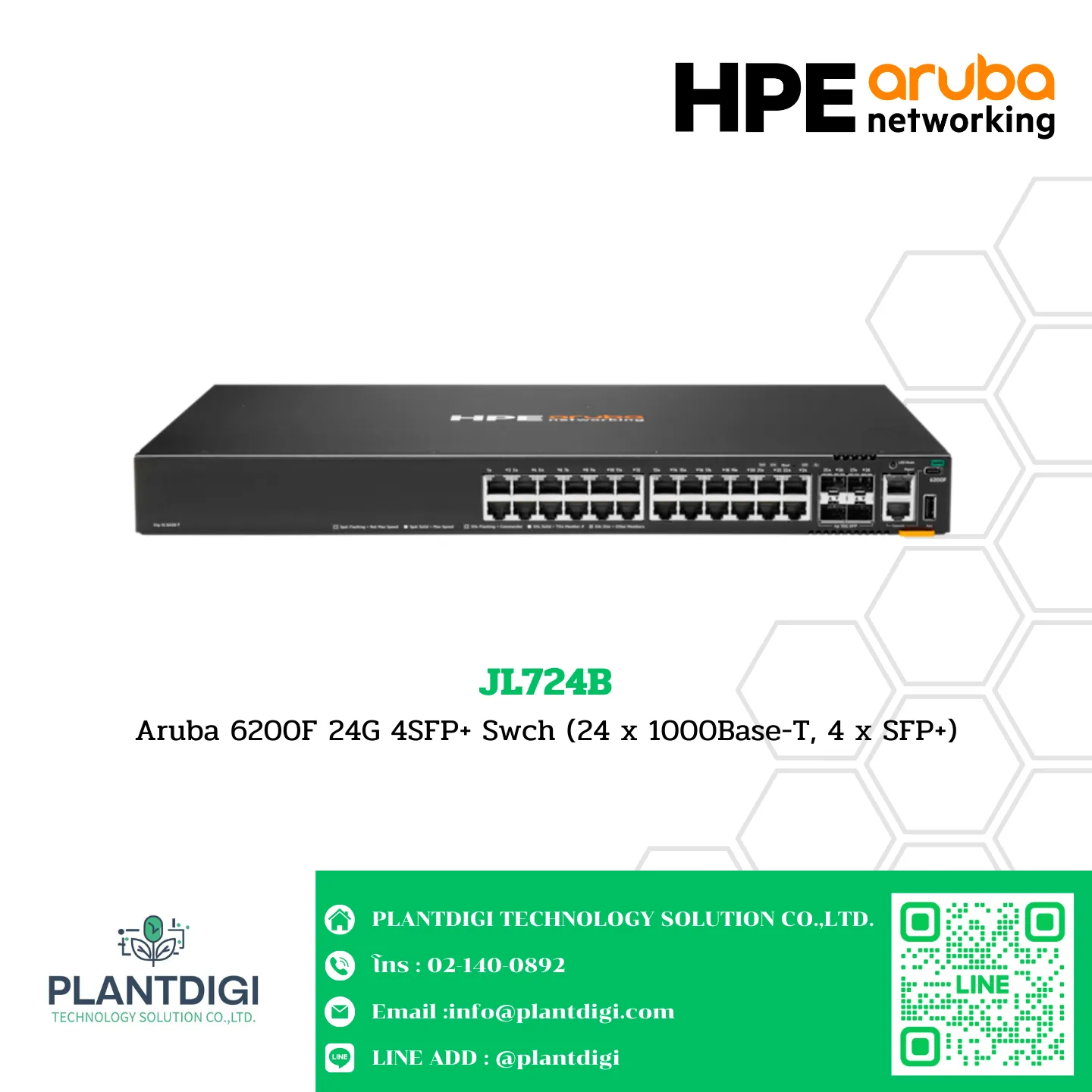

Aruba 6200F 24G 4SFP+ Swch (24 x 1000Base-T, 4 x SFP+)

Differentiator:

• Next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. This model has 24 × 10/100/1000BASE-T and 4 × 1/10G SFP ports.

Hardware Specifications

Power Consumption:

• 59W at 230 VAC

Input Voltage:

• 100V-120V / 200V-240V

Ports:

• (24) 10/100/1000BASE-T ports
• (4) 100M/1/10G SFP+ ports
• (1) USB-C Console Port
• (1) RJ-45 Console Port
• (1) OOBM (Out-of-Band Management)
• (1) USB Type-A Host port

Latency:

• 1 Gbps: 2.28 μs
• 10 Gbps: 1.46 μs

Routing/Switching Capacity:

• 128 Gbps

Stacking Capabilities:

• 8 members

Throughput:

• Up to 95.2 Mpps

Memory and Processor:

• Quad Core ARM Cortex™ A72 @ 1.8 GHz

Power Supply:

• Fixed power supply

Detailed Product Description:

• Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
• Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
• Min=0 / Max = 4 SFP/SFP+ 1/10G Transceiver
• 1U Height

Weight:

• 5.10 kg (11.24 lbs), max, depending on model

Dimensions:

• 4.39 × 44.2 × 32.7 cm (1.73 × 17.4 × 12.9 in)
