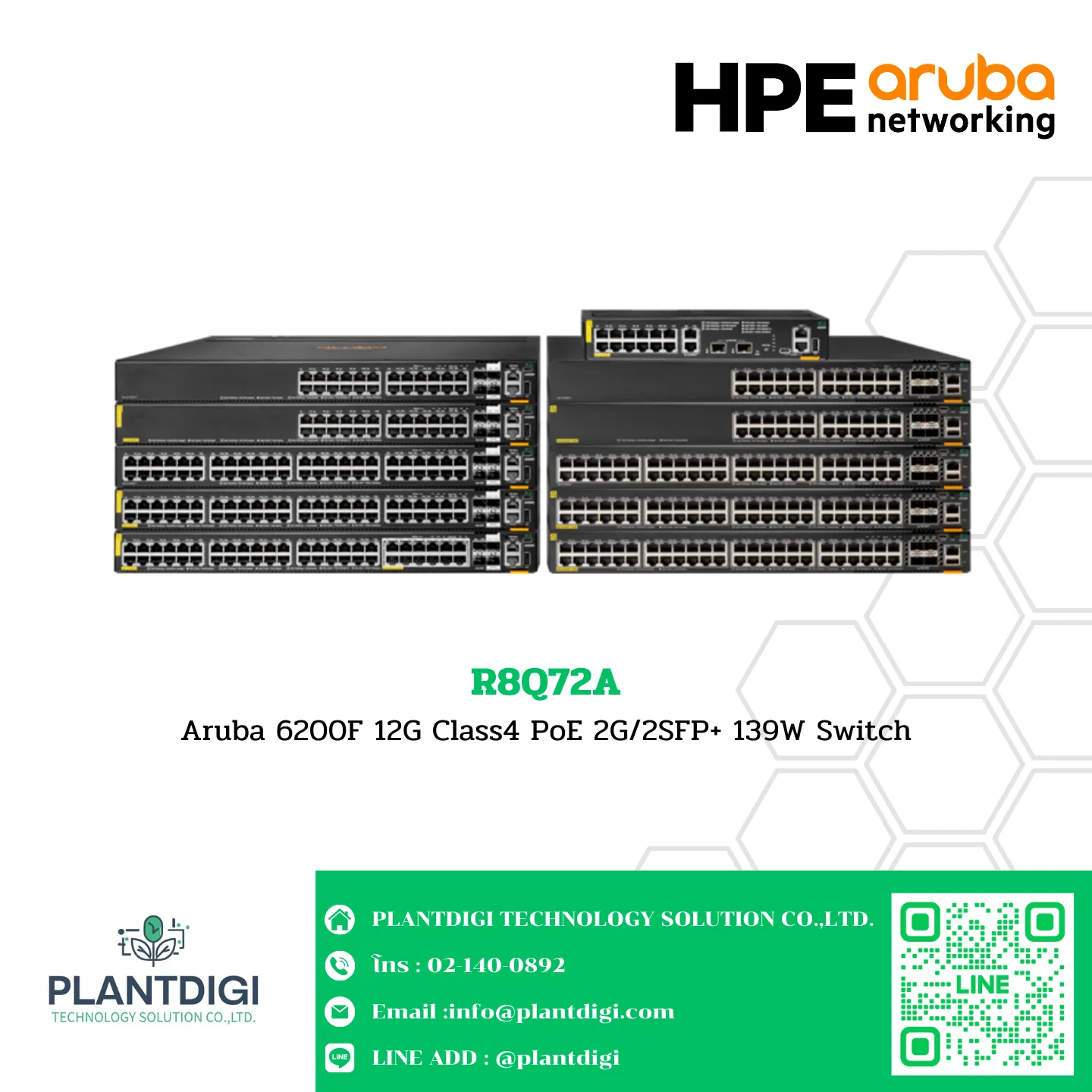

Switch Aruba OS-CX HPE รุ่น R8Q72A

R8Q72A
Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch

Hardware Specifications

Power Consumption:

• 170W at 230 VAC

Input Voltage:

• 100V-120V / 200V-240V

Ports:

• (12) 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port
• (2) 1G/10G SFP ports; PHY-less
• (2) 1GbE ports
• Supports PoE Standards IEEE 802.3af, 802.3at
• (1) RJ-45 Console Port
• (1) USB-C Console Port
• (1) OOBM (Out-of-Band Management)
• (1) USB Type-A Host port

Latency:

• 1 Gbps: 2.28 μs
• 10 Gbps: 1.46 μs

Routing/Switching Capacity:

• 68 Gbps

Stacking Capabilities:

• 8 members

Throughput:

• Up to 45.1 Mpps

Memory and Processor:

• Quad Core ARM Cortex™ A72 @ 1.2 GHz

Power Supply:

• Fixed power supply
• Up to 139W of Class 4 PoE Power

PoE Capability:

• 139W

Detailed Product Description:

• Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
• Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
• Fanless Switch
• Min=0 / Max = 2 SFP/SFP+ 1/10G Transceiver
• 1U Height

Weight:

• 5.09 kg (11.22 lbs)

Dimensions:

• 4.39 × 44.247 × 32.54 cm (1.73 × 17.42 × 12.81 in)
