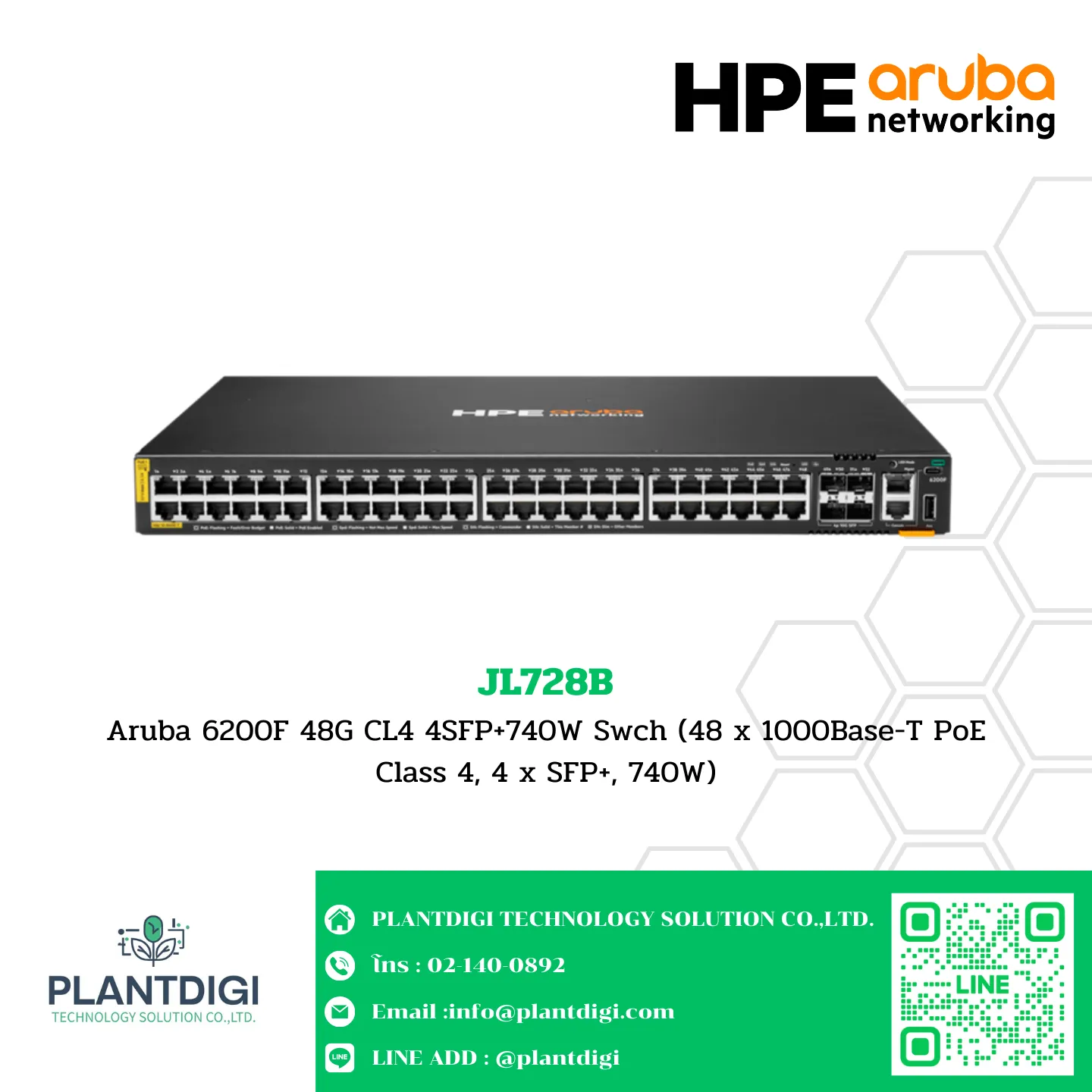

JL728B
Aruba 6200F 48G CL4 4SFP+740W Swch (48 x 1000Base-T PoE Class 4, 4 x SFP+, 740W)
Differentiator:
- Next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. This model has 48 × 10/100/1000BASE-T and 4 × 1/10G SFP ports, with 740W of available Class 4 PoE power.
Hardware Specifications
Power Consumption:
- 76W at 230 VAC
Input Voltage:
- 100V-120V / 200V-240V
Ports:
- (48) 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port
- (4) 100M/1/10G SFP+ ports
- Supports PoE Standards IEEE 802.3af, 802.3at
- (1) USB-C Console Port
- (1) RJ-45 Console Port
- (1) OOBM (Out-of-Band Management)
- (1) USB Type-A Host port
Latency:
- 1 Gbps: 2.28 μs
- 10 Gbps: 1.46 μs
Routing/Switching Capacity:
- 176 Gbps
Stacking Capabilities:
- 8 members
Throughput:
- Up to 130.9 Mpps
Memory and Processor:
- Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power Supply:
- Fixed power supply
- Up to 740W of Class 4 PoE Power
PoE Capability:
- 740W
Detailed Product Description:
- Aruba 6200F 48G Class-4 PoE 4SFP+ 740W Switch
- Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
- Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
- Min=0 / Max = 4 SFP/SFP+ 1/10G Transceiver
- 1U Height
Weight:
- 5.10 kg (11.24 lbs), max, depending on model
Dimensions:
- 4.39 × 44.2 × 32.7 cm (1.73 × 17.4 × 12.9 in)
