Switch HPE Transceiver รุ่น JD119B

JD119B

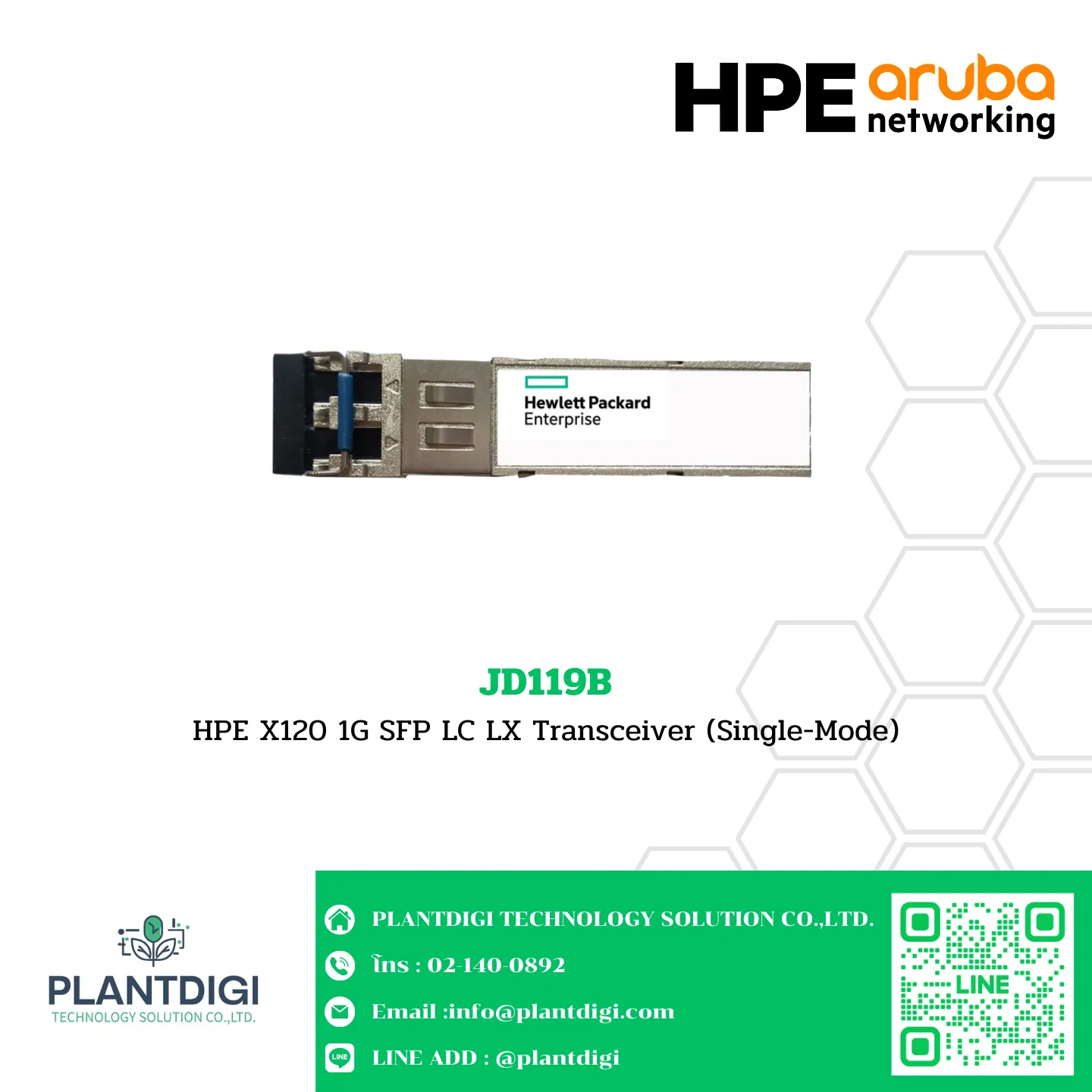

HPE X120 1G SFP LC LX Transceiver (Single-Mode)

Key Features

• High-Speed Data Transfer: Supports 1 Gb/s data rates, ideal for high-performance networking applications.
• Long Range (LR): Suitable for transmission distances up to 5 kilometers (3.1 miles).
• Single-Mode Fiber (SMF): Uses 1310 nm wavelength for long-distance data transmission.
• Hot Swappable: Allows for easy installation and replacement without interrupting network operations.
• Digital Optical Monitoring (DOM): Provides real-time monitoring of parameters such as optical output power, optical input power, and laser bias current.
• Multi-Source Agreement (MSA) Compliant: Ensures compatibility with a wide range of HP Aruba networking products.
• Low Power Consumption: Less than 1.0 W, making it energy efficient.
• RoHS Compliant: Environmentally friendly.
• Secure Connection: SFP+ form factor provides a reliable and secure connection.
• Firmware Upgradeable: Allows for future updates and enhancements.
• Transparent Operational Mode: Ensures smooth and efficient data transmission across various applications.

Specifications

Type:

• SFP

Transfer Speed:

• 1 Gb/s

Family:

• HPE Networking Comware

Ports:

• 1 LC 1000BASE-LX port

Connector Type:

• LC

Wavelength:

• 1310 nm

Cabling Distance (Maximum):

• Up to 5 kilometers (3.1 miles)

Fiber Type:

• Single-Mode

Power Consumption (Typical):

• 0.8 W

Power Consumption (Maximum):

• 1.0 W

Dimensions:

• 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Weight:

• 0.04 lb
