(IFGS-620TF) PLANET INDUSTRIAL 4-PORT 10/100BASE-TX + 2-PORT 1000BASE-X SFP RING ETHERNET SWITCH(-40 TO 75 DEGREE C, DUAL 9~48V DC/24V AC, FIBER PORTS SWITCH/RING MODE VIA DIP SWITCH, SUPER-FAST, FAULT-TOLERANT RING REDUNDANCY, PROFINET TRAFFIC PASS-THROUGH WITH QOS)
Planet IFGS-620TF เป็นสวิตช์อุตสาหกรรม (Industrial Switch) แบบ Unmanaged ที่มีความสามารถพิเศษในการทำระบบสำรองเครือข่ายแบบวงแหวน (Fast Ring Redundancy) โดยใช้เวลาในการกู้คืนระบบเร็วสูงสุดเพียง 1ms ออกแบบมาเพื่อใช้งานในสภาพแวดล้อมที่โหดร้ายอุณหภูมิ -40 ถึง 75 องศาเซลเซียส ตัวเครื่องมีขนาด Slim ประหยัดพื้นที่บนราง DIN-rail พร้อมรองรับการส่งผ่านข้อมูล PROFINET และมีระบบจัดการลำดับความสำคัญของข้อมูล (QoS) ในตัว เหมาะสำหรับงานระบบควบคุมอัตโนมัติในโรงงานอุตสาหกรรม
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |

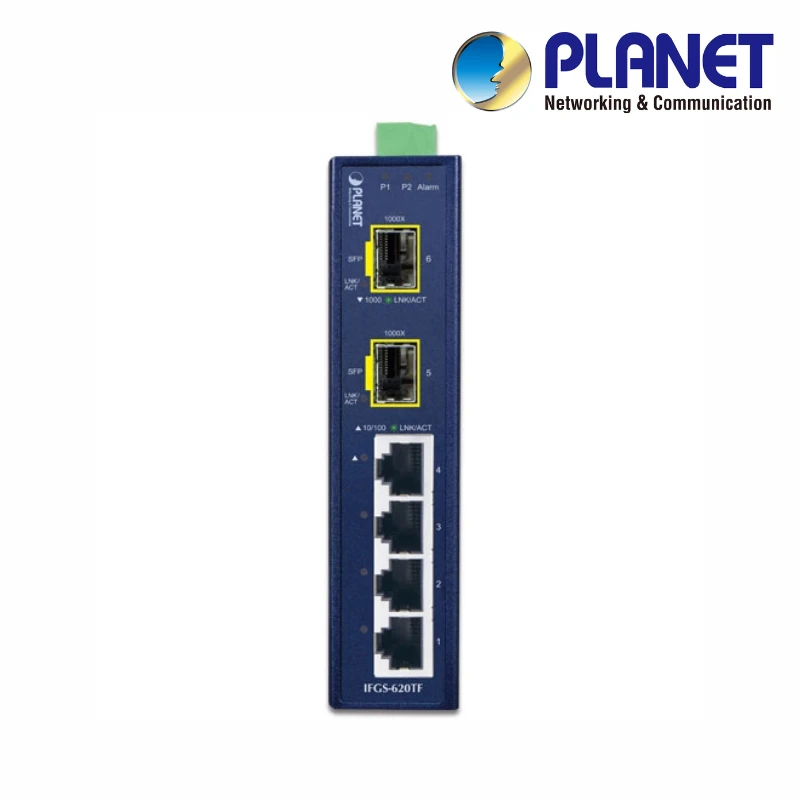

| Copper Ports | 4 x 10/100BASE-TX RJ45 (Auto-MDI/MDI-X, Auto-negotiation) |
| SFP Slots | 2 x 1000BASE-X SFP interfaces |
| Ring Function | Recovery time up to 1ms (Supports up to 8 units in ring) |
| DIP Switch Mode | OFF: Ring Mode / ON: Switch Mode (Default) |
| Switch Fabric | 4.8Gbps |
| Throughput (pps) | 3.57Mpps @ 64bytes |
| Address Table | 4K entries |
| Jumbo Frame | 16K bytes |
| Flow Control | Back pressure (Half duplex) / IEEE 802.3x pause frame (Full duplex) |

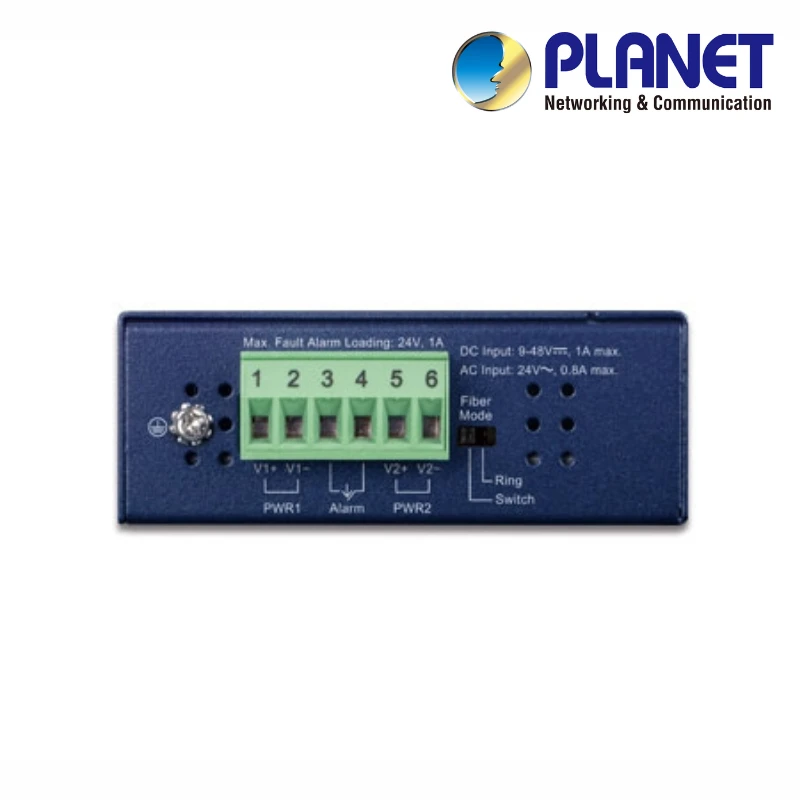

| Connector | Removable 6-pin terminal block (P1, P2, Fault Alarm) |
| Power Requirements | DC 9~48V or AC 24V (Redundant power with reverse polarity protection) |
| Power Consumption | 3.4 watts / 11.6 BTU |
| Dimensions (W x D x H) | 32 x 87.8 x 135 mm |
| Weight | 430g |
| Enclosure / IP Rating | IP30 type metal case |
| Protection | ESD ±6KV (Air/Contact) / Surge 6KV DC |
| Operating Temp | -40 ~ 75 degrees C |
| Stability Testing | IEC 60068-2-32 (Free fall), 2-27 (Shock), 2-6 (Vibration) |
| Standard Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p CoS |
