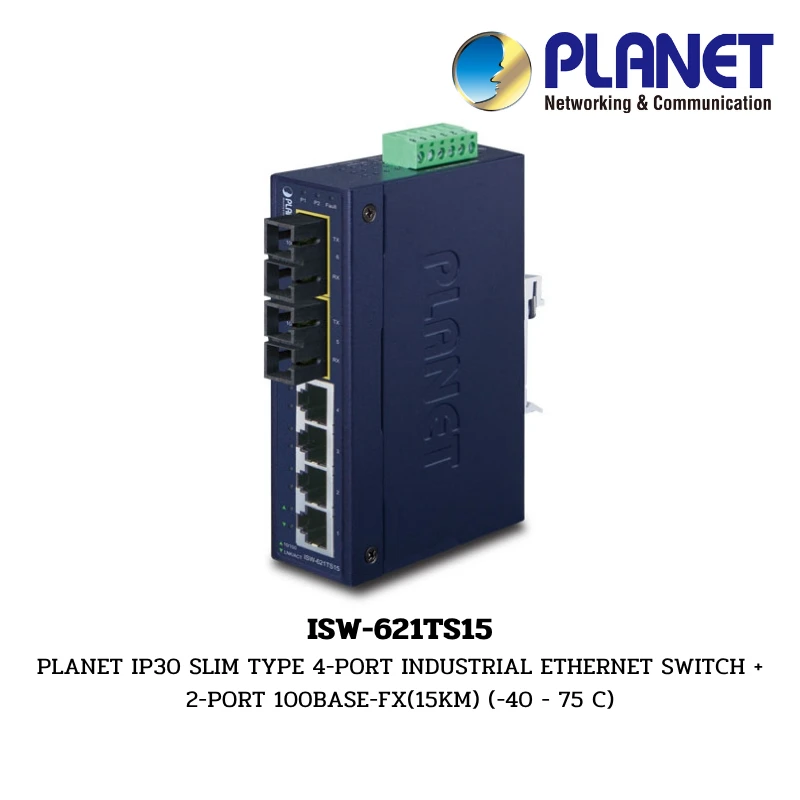

(ISW-621TS15) PLANET IP30 SLIM TYPE 4-PORT INDUSTRIAL ETHERNET SWITCH + 2-PORT 100BASE-FX(15KM) (-40 – 75 C)
Planet ISW-621TS15 เป็นสวิตช์อุตสาหกรรม (Industrial Switch) แบบ Slim Type ที่มาพร้อมพอร์ตไฟเบอร์ออปติกแบบ Single-mode (SC) จำนวน 2 พอร์ต ช่วยให้สามารถเชื่อมต่อเครือข่ายแบบ Fiber Daisy Chain หรือทำระบบสำรองเส้นทางได้ไกลถึง 15 กิโลเมตร ตัวเครื่องออกแบบมาเพื่อความทนทานสูงสุดในสภาวะอุณหภูมิสุดขั้ว -40 ถึง 75 องศาเซลเซียส พร้อมระบบสำรองไฟคู่และตัวเครื่องโลหะมาตรฐาน IP30 เหมาะสำหรับงานระบบขนส่งมวลชน ระบบรักษาความปลอดภัย และโรงงานอุตสาหกรรมที่ต้องการความเสถียรของเครือข่ายในระยะไกล
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |

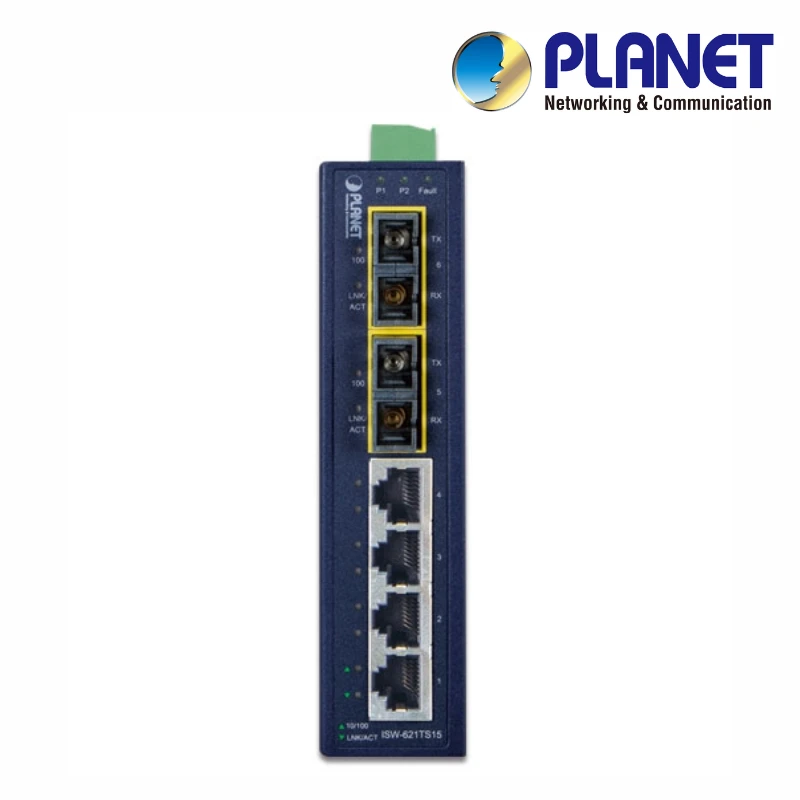

| Copper Interface | 4 x 10/100Base-TX (Auto negotiation, Auto-MDI / MDI-X) |
| Optical Interface | 2 x 100Base-FX (Single-mode) |
| Fiber Connector | SC interface |
| Cable Distance | 15km |
| Wavelength | 1310nm |
| Launch Power (dBm) | Max. 0 / Min. -20 |
| Receive Sensitivity | -32 dBm |
| Max. Input Power | 0 dBm |
| Switch Fabric | 1.2Gbps |
| Throughput (pps) | 0.89Mpps @ 64Bytes |
| Address Table | 2K entries |
| Shared Data Buffer | 1Mbit |

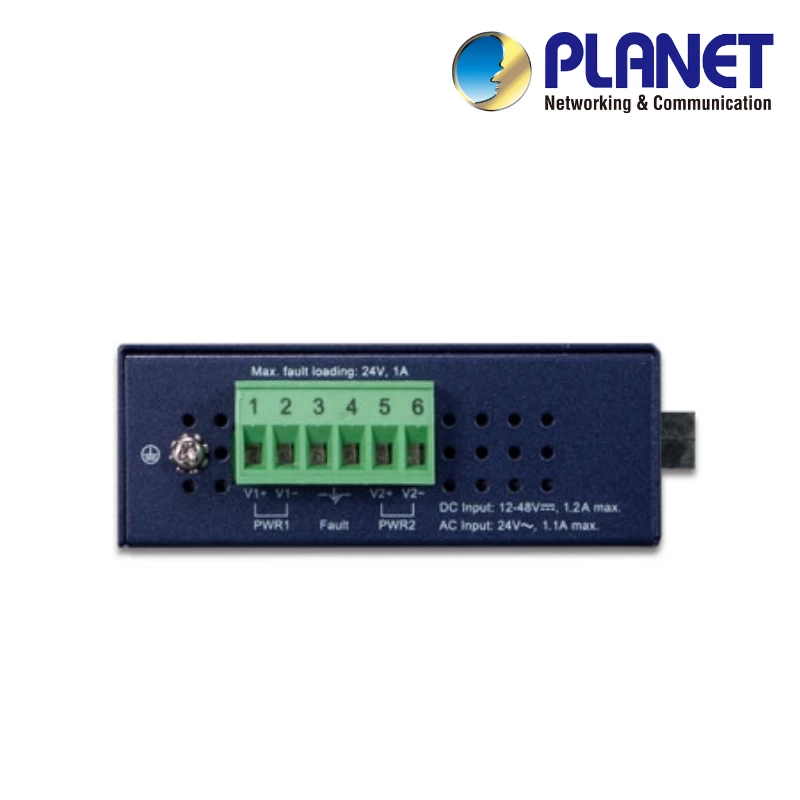

| Power Requirements | 12 to 48V DC (Redundant power with polarity reverse protection) |
| Power Consumption | Max. 16 watts / 54 BTU |
| Alarm | 1 x Relay output for power failure (1A @ 24V DC) |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Enclosure / IP Rating | IP30 slim type metal case |
| Installation | DIN rail kit and wall mount ear |
| Operating Temp | -40 ~ 75 degrees C |
| Stability Testing | IEC 60068-2-32 (Free fall), 2-27 (Shock), 2-6 (Vibration) |
| Standard Compliance | IEEE 802.3, 802.3u, 802.3x |
