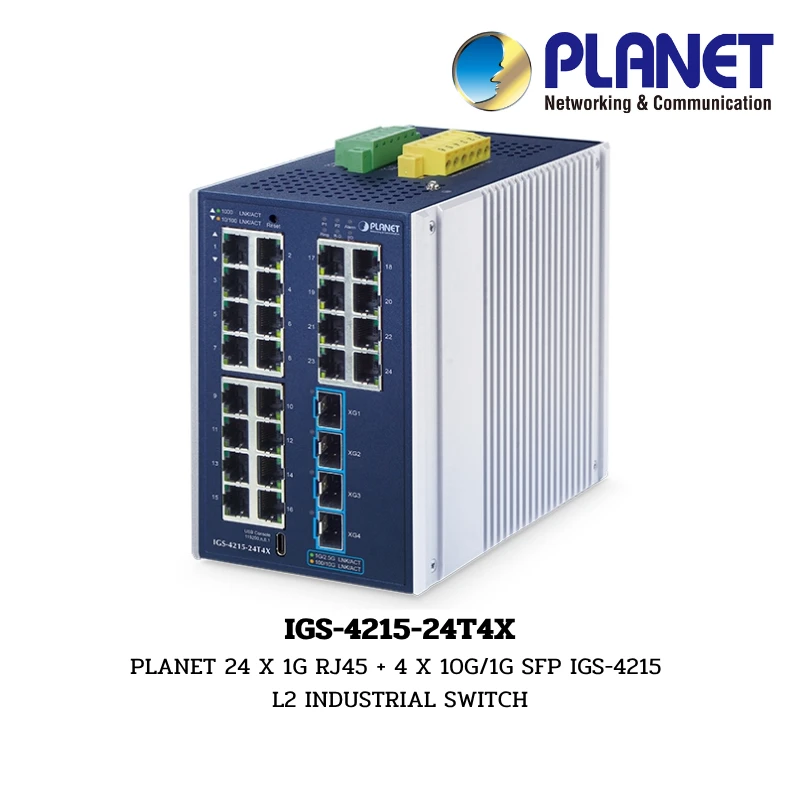

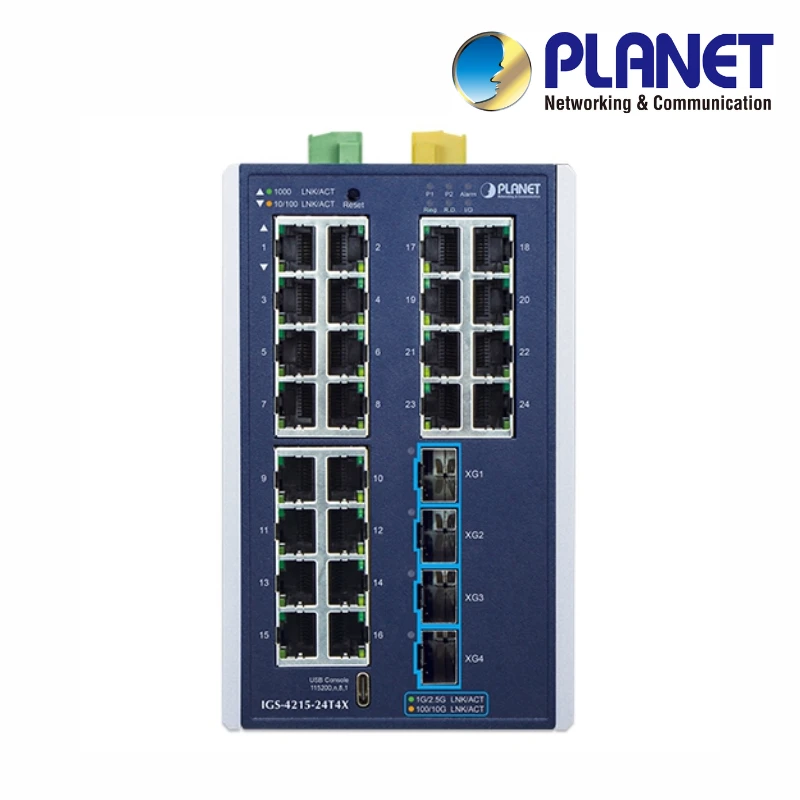

(IGS-4215-24T4X) PLANET 24 X 1G RJ45 + 4 X 10G/1G SFP IGS-4215 L2 INDUSTRIAL SWITCH

4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)

Backward compatible with 1G/2.5G SFP transceivers

2 Digital Input (DI) / 2 Digital Output (DO)

Removable 6-pin terminal block

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3ae 10Gb/s Ethernet

IEEE 802.3x Flow Control and Back Pressure

IEEE 802.3ad Port Trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.1ab LLDP

RFC 768 UDP

RFC 783 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

RFC 2710 MLD v1

RFC 3810 MLD v2

ITU-T G.8032 ERPS Ring

Port Mirroring (TX/RX/Both, Many-to-1)

802.1Q tagged VLAN, Q-in-Q, Voice VLAN, Private VLAN, GVRP

IEEE 802.3ad LACP and static trunk (8 groups, 8 ports per trunk)

STP, RSTP, MSTP

IPv4 IGMP snooping v2, v3 / IPv6 MLD snooping v2, v3

QoS (8 priority queues, Strict priority/WRR)

Ingress/Egress Rate Limit per port bandwidth control

Supports ERPS Ring (Recovery time < 450ms)

Max. 64 VLAN interfaces

Max. 32 routing entries

IPv4/IPv6 hardware static routing

IPv4/IPv6 IP-based ACL/MAC-based ACL (Max. 256 entries)

RADIUS/TACACS+ user access authentication

IP-MAC port binding, MAC filtering, Static MAC address (Max. 512 entries)

DHCP Snooping and DHCP Option82

DoS attack prevention

ARP inspection / IP source guard

USB to RS232 Console, Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLSv1.2

Firmware upgrade by HTTP/TFTP, LLDP, SNTP

PLANET Smart Discovery Utility / NMS System / CloudViewer Pro

Remote/Local Syslog
