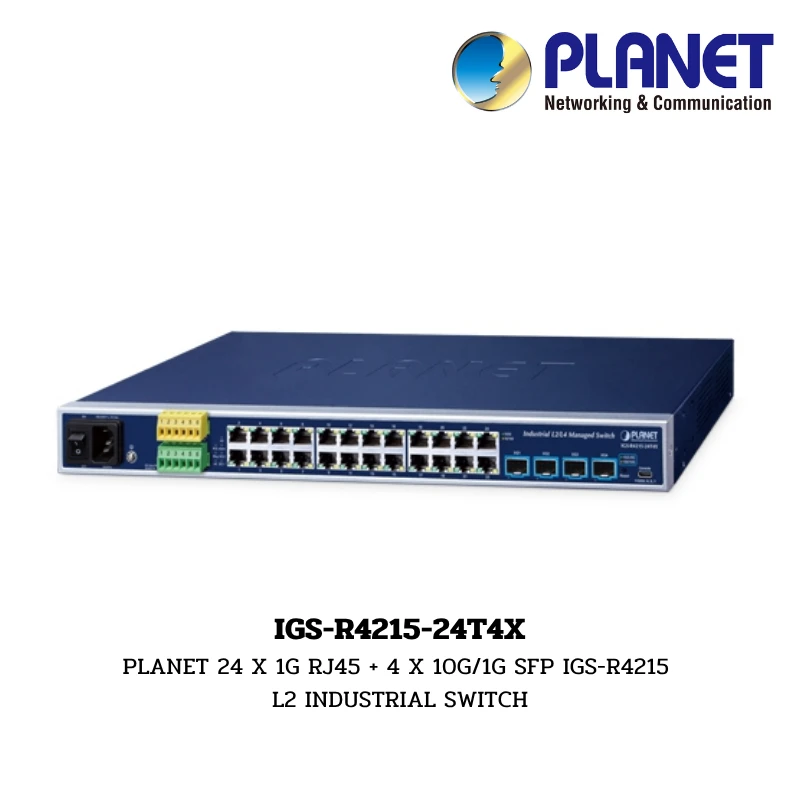

(IGS-R4215-24T4X) PLANET 24 X 1G RJ45 + 4 X 10G/1G SFP IGS-R4215 L2 INDUSTRIAL SWITCH
Planet IGS-R4215-24T4X เป็น Industrial Managed Switch แบบติดตั้งในแร็ค (Rack-mount 1U) ที่ออกแบบมาเพื่อรองรับการใช้งานหนักในโครงสร้างพื้นฐานระดับอุตสาหกรรม มาพร้อมพอร์ต Gigabit Ethernet 24 พอร์ต และพอร์ต 10G SFP+ ถึง 4 พอร์ต ให้แบนด์วิธรวมสูงถึง 128Gbps จุดเด่นคือระบบ Triple Power Input ที่รองรับทั้ง AC 100~240V และ Dual DC 24~60V ในเครื่องเดียว พร้อมฟังก์ชัน DI/DO และระบบสำรองเครือข่าย ERPS Ring ที่กู้คืนระบบได้รวดเร็วเพียง 450ms เหมาะสำหรับห้องควบคุมอัจฉริยะและระบบเครือข่ายที่ต้องการความเสถียรสูงสุด
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24) |
| SFP+ Ports |
4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4) Backward compatible with 100M/1G/2.5G SFP |
| Console | 1 x USB Type C to RS232 serial port (115200,8, N, 1) |
| DI/DO Interface |
2 Digital Input (DI) / 2 Digital Output (DO) Removable 6-pin terminal block |
| Connector |
Removable 6-pin terminal block (Pin 1/2 Power 1; 3/4 Fault; 5/6 Power 2) AC Power Socket |
| Alarm | One relay output for port breakdown and power failure (1A @ 24V AC) |
| Power Requirements |
DC: 24-60V, 1.5A (max.) AC: 100~240V, 50/60Hz, 1A (max.) |
| Power Consumption | DC: Max. 24.06 watts (Full loading) / AC: Max. 19.3 watts (Full loading) |
| Enclosure | IP30 metal case, 1U height, Rack-mount kit |
| Protection | EFT Protection 6KV DC / ESD Protection 6KV DC |
| Switch Architecture | Store-and-Forward, 128Gbps non-blocking fabric |
| Switch Throughput | 95.23Mpps @ 64Bytes |
| MAC Address Table | 16K entries, 12Mbits Shared Data Buffer |
| Jumbo Frame | 12KBytes |
| Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3bz 2.5GBASE-X IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control* IEEE 802.1ab LLDP IEEE 802.3az Energy Efficient Ethernet (EEE) RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
| Layer 2 Functions |
Port Mirroring (TX/RX/both, Many-to-1) 802.1Q tag-based VLAN, Q-in-Q, Voice VLAN, Private VLAN, GVRP IEEE 802.3ad LACP/Static Trunk (8 groups, 8 ports per group) STP, RSTP, MSTP IPv4 IGMP (v1/v2/v3) Snooping / IPv6 MLD snooping v2, v3 QoS (8 priority queues, Strict priority/WRR) Ingress/Egress Rate Limit per port bandwidth control Supports ERPS Ring (Recovery time < 450ms) |
| Security Functions |
IPv4/IPv6 IP-based ACL/MAC-based ACL (Max. 256 entries) IEEE 802.1X Port-based authentication RADIUS/TACACS+ user access authentication IP-MAC port binding, MAC filter, Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection / IP source guard |
| Management |
USB to RS232 Console, Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLS v1.2 Firmware upgrade by HTTP/TFTP, LLDP, SNTP PLANET Smart Discovery Utility / NMS System / CloudViewer Pro Remote/Local Syslog |
| Weight | 2826 g |
| Dimensions (W x D x H) | 440 x 200 x 44.5 mm (1U) |
| Environment |
Operating: -10~60 °C (AC) / -40~75 °C (DC) Humidity: 5 ~ 95% (non-condensing) |
| Compliance | FCC Part 15 Class A, CE |
