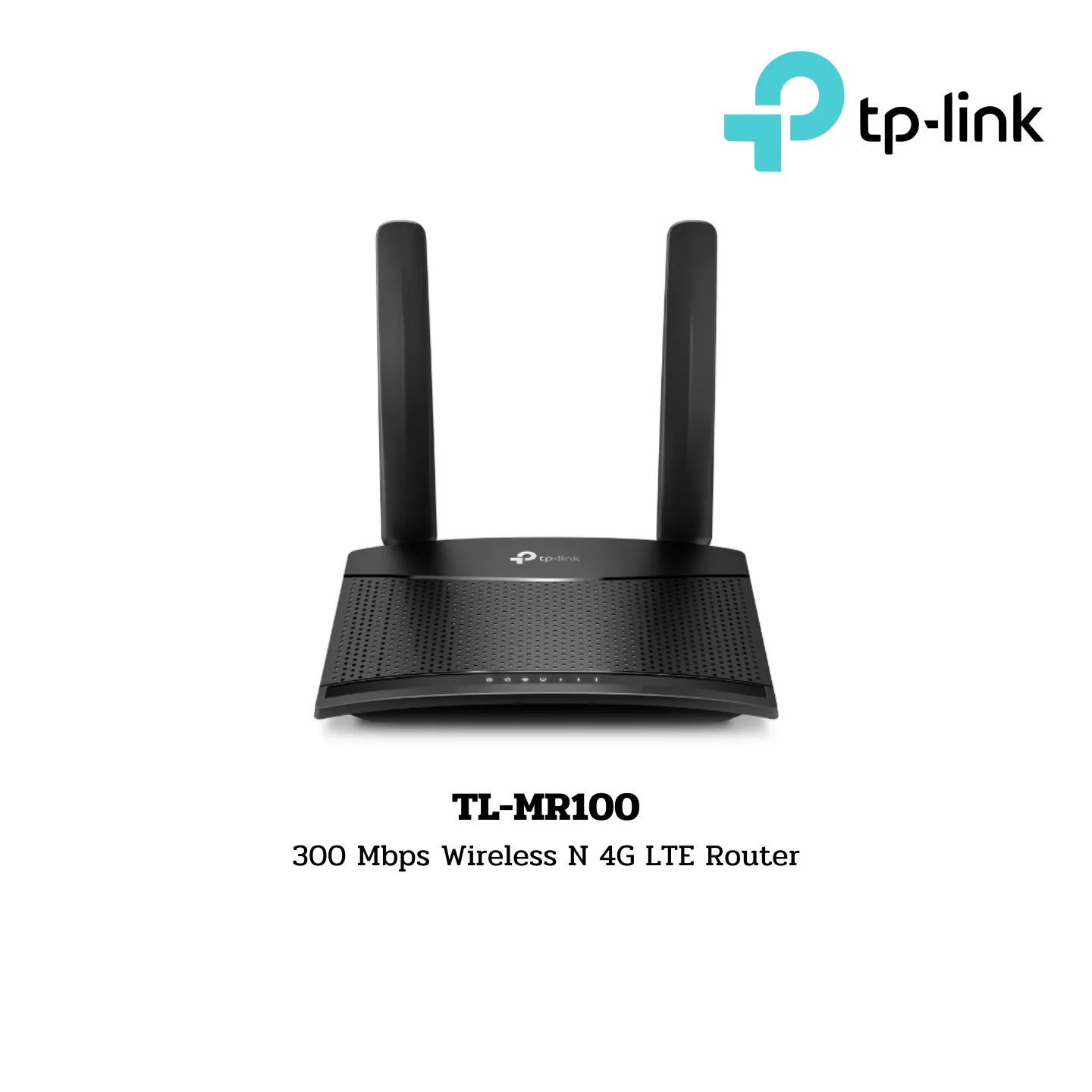

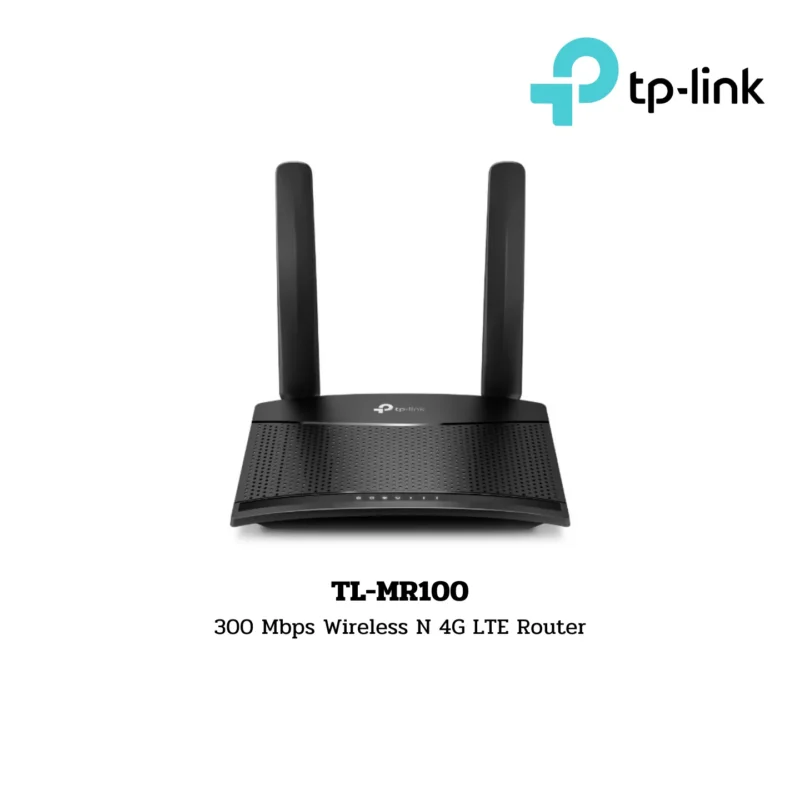

TP-Link Network รุ่น TL-MR100 300 Mbps Wireless N 4G LTE Router

TL-MR100
300 Mbps Wireless N 4G LTE Router

• Build-In 150Mbps 4G LTE Modem
• Speed: 300 Mbps at 2.4 GHz, 4G Cat4 150/50 Mbps
• Specification: 2× Antennas, 1× Fast Ethernet LAN Port, 1× Fast Ethernet WAN/LAN Port, LTE-FDD/LTE-TDD/DC-HSPA+/UMTS
• Feature: Parental Controls

Hardware Features:

• Interface:
  • 1× 10/100Mbps LAN Port
  • 1× 10/100Mbps LAN/WAN Port
  • 1× Nano SIM Card Slot
• Button:
  • WPS/Reset Button
• External Power Supply (EU):
  • 9V/0.85A
• Dimensions (W x D x H):
  • 6.06×4.49×1.42 in (154×114×36 mm)
• Antenna:
  • 2 Detachable External 4G LTE Antennas

Wireless Features:

• Wireless Standards:
  • IEEE 802.11b/g/n
• Frequency:
  • 2.4 GHz
• Signal Rate:
  • 300 Mbps
• Reception Sensitivity:
  • 11g 54M: -74 dBm
  • 11n HT20: -71 dBm
  • 11n HT40: -68 dBm
• Transmit Power:
  • < 20 dBm (2.4 GHz)
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • Wireless Schedule
  • WMM
  • Wireless Statistics
• WAN Failover: Yes
• Wireless Security:
  • 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type:

• 4G:
  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
  • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features:

• Security:
  • IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes:
  • 3G/4G Router, Wireless Router
• WAN Type:
  • Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
• Management:
  • Local Management
  • Remote Management
• DHCP:
  • Server
  • DHCP Client List
  • Address Reservation
• Port Forwarding:
  • ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS:
  • DynDns
  • NO-IP
• Protocols:
  • IPv4, IPv6
• Guest Network:
  • 2.4 GHz Guest Network
• Administration:
  • Upgrade Firmware
  • Factory Default
  • System Log
  • Diagnostic Tools

Others:

• Certification:
  • CE, RoHS
• Package Contents:
  • 300 Mbps Wireless N 4G LTE TL-MR100
  • 1.5m Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
• Requirements:
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
  • Nano SIM Card

Environment:

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
