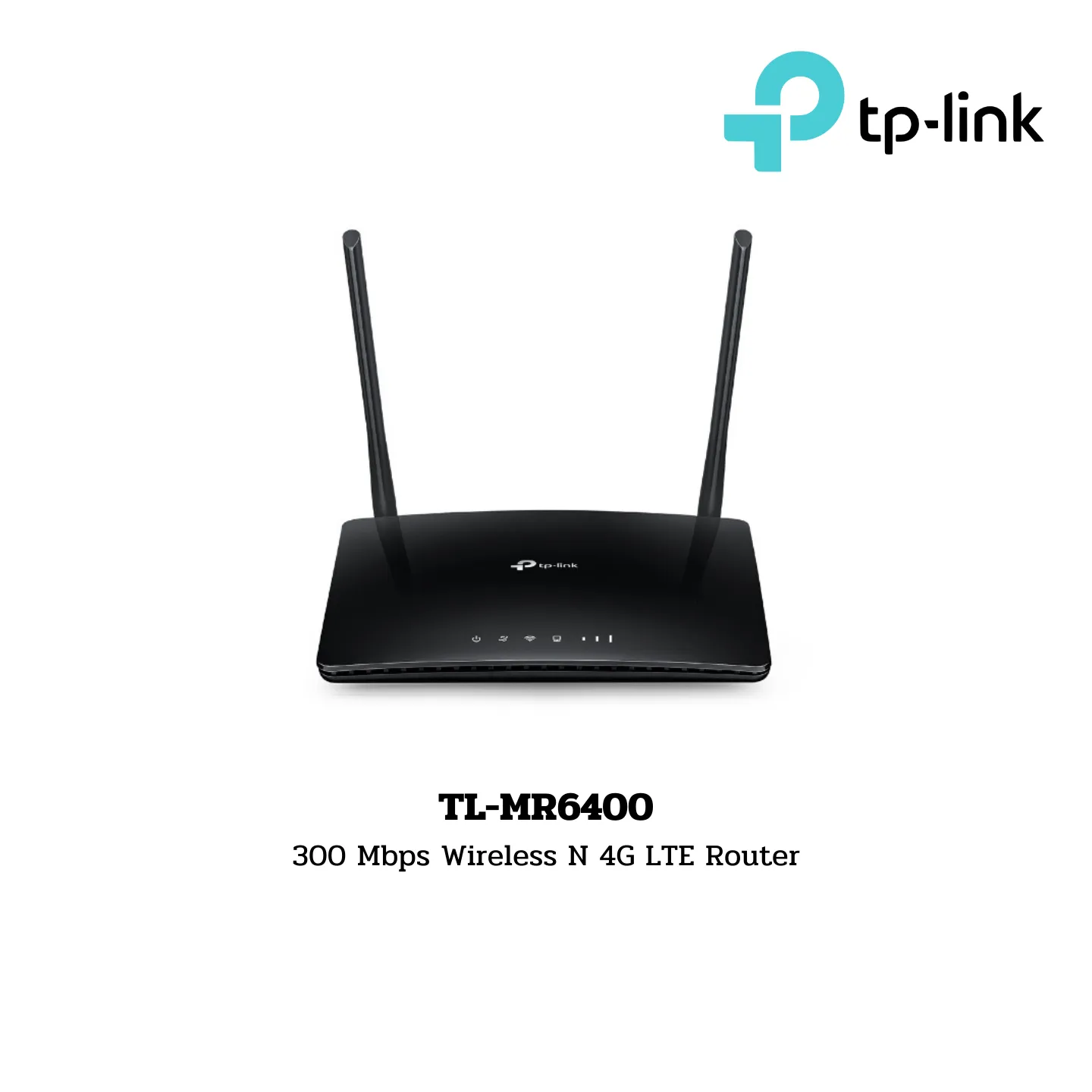

TP-Link Network รุ่น TL-MR6400 300 Mbps Wireless N 4G LTE Router

TL-MR6400
300 Mbps Wireless N 4G LTE Router

• Build-In 150Mbps 4G LTE Modem
• Speed: 300 Mbps at 2.4 GHz, 4G Cat4 150/50 Mbps
• Specification: 2× Antennas, 3× Fast Ethernet LAN Ports, 1× Fast Ethernet WAN/LAN Port, LTE-FDD/LTE-TDD/DC-HSPA+/HSPA+/HSPA/UMTS
• Feature: Tether App, Cloud Support, Parental Controls, QoS

Hardware Features:

• Ports:
  • 3× 10/100 Mbps LAN ports
  • 1× 10/100 Mbps LAN/WAN Port
  • 1× Nano SIM Card Slot
  • 2× External SMA-F Antenna Interface
• Button:
  • WPS/RESET Button
  • WiFi ON/OFF Button
• External Power Supply (EU):
  • 9V/0.85A
• Dimensions (W x D x H):
  • 6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm)
• Antenna Type:
  • 2× Detachable External 4G LTE Antennas

Wireless Features:

• Wireless Standards:
  • IEEE 802.11b, 802.11g, 802.11n
• Frequency:
  • 2.4 GHz
• Signal Rate:
  • 300 Mbps at 2.4 GHz
• Reception Sensitivity:
  • 11g 54M: -74 dBm
  • 11n HT20: -71 dBm
  • 11n HT40: -67 dBm
• Transmit Power:
  • <20 dBm (2.4 GHz)
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • Wireless Schedule
  • WMM
  • Wireless Statistics
• WAN Failover: Yes
• Wireless Security:
  • 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type:

• 4G:
  • FDD-LTE Cat4 (800/900/1800/2100/2600 MHz)
  • TDD-LTE (2300/2500/2600 MHz)
• 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz)

Software Features:

• Quality of Service:
  • WMM, QoS
• Operating Modes:
  • 3G/4G Router
  • Wireless Router
• Management:
  • Access Control
  • Local Management
  • Remote Management
• WAN Connection Type:
  • Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
• DHCP:
  • Server
  • Client
  • DHCP Client List
  • Address Reservation
• Port Forwarding:
  • Virtual Server
  • Port Triggering
  • UPnP
  • DMZ
• Dynamic DNS:
  • TP-Link DDNS
  • DynDns
  • NO-IP
• VPN Pass-Through:
  • PPTP
  • L2TP
  • IPSec
• Access Control:
  • Parental Controls
  • Local Management Control
  • Host List
  • Access Control
• Firewall Security:
  • DoS
  • SPI Firewall
  • IP and MAC Address Binding
• Protocols:
  • Supports IPv4 and IPv6
• Guest Network:
  • 2.4 GHz Guest Network
• VPN Server:
  • PPTP VPN
  • OpenVPN

Others:

• Certification:
  • CE, RoHS
• Package Contents:
  • 300Mbps Wireless N 4G LTE Router TL-MR6400
  • 1.5m Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
• System Requirements:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers
  • Nano SIM Card

Environment:

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
