Switch TP-Link รุ่น SG3218XP-M2

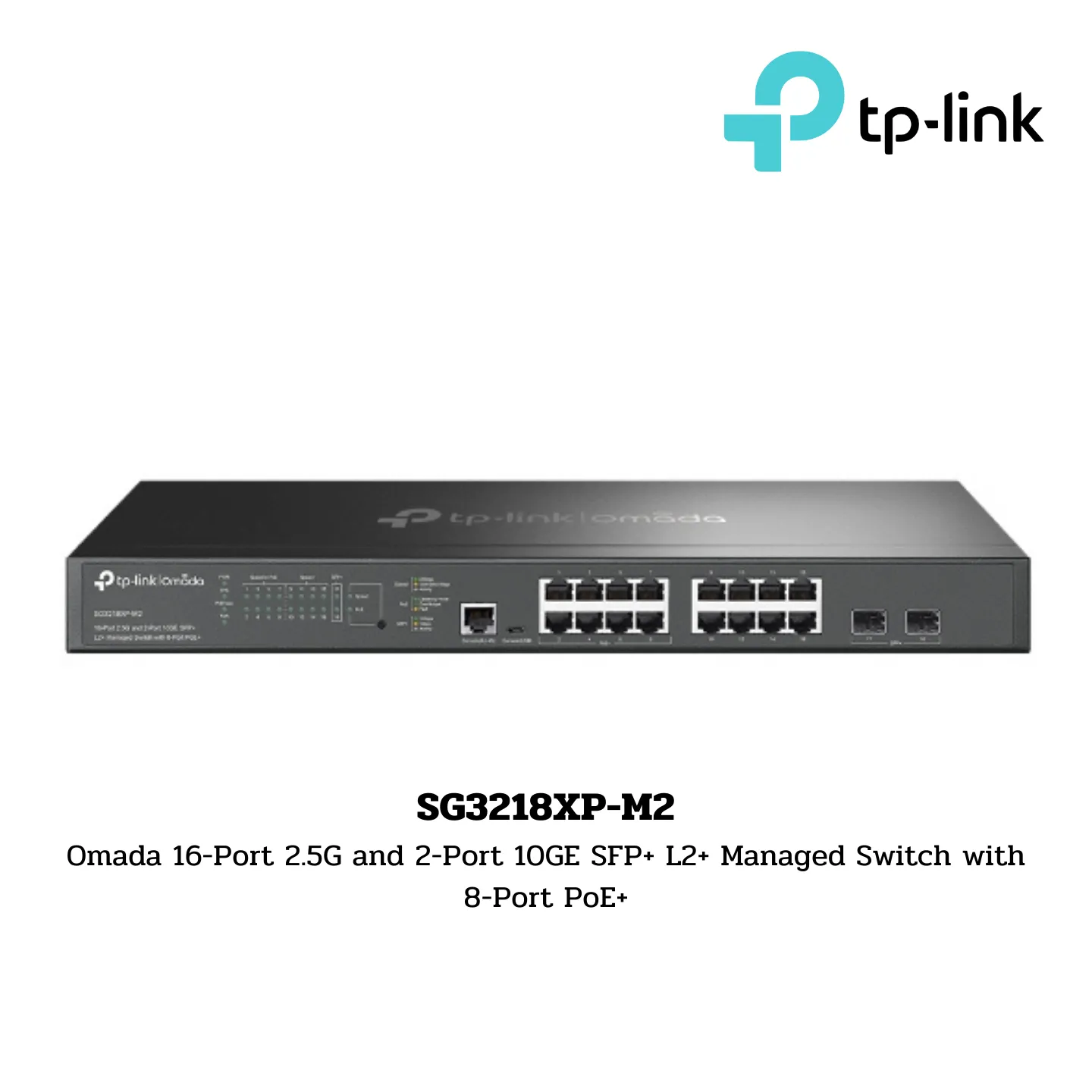

SG3218XP-M2
Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

• Ports:
  • 8× 2.5G PoE+ Ports
  • 8× 2.5G Non-PoE Ports
  • 2× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Specification:
  • 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Integration with Omada SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Hardware Features:

• Interface:
  • 16× 2.5 Gbps RJ45 Ports
  • 2× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Fan Quantity:
  • 2
• Power Supply:
  • 100-240 V AC~50/60 Hz
• PoE Ports (RJ45):
  • Standard: 802.3at/af compliant
  • PoE+ Ports (802.3at PoE): 8 Ports, up to 30 W per port
  • Power Budget: 240 W
• Dimensions (W x D x H):
  • 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting:
  • Rack Mountable
• Max Power Consumption:
  • 299.4 W (110V/60Hz) (with 240 W PD connected)
• Max Heat Dissipation:
  • 1021.64 BTU/h (110 V/60 Hz) (with 240 W PD connected)

Performance:

• Switching Capacity:
  • 120 Gbps
• Packet Forwarding Rate:
  • 89.28 Mpps
• MAC Address Table:
  • 16 K
• Packet Buffer Memory:
  • 12 Mbit
• Jumbo Frame:
  • 9 KB

Software Features:

• Quality of Service:
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
  • Bandwidth Control: Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

L3 Features:

• 32 IPv4/IPv6 Interfaces
• Static Routing: 48 static routes
• Static ARP: 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay

L2 and L2+ Features:

• Link Aggregation: static link aggregation, 802.3ad LACP, up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection: Port based, VLAN based
• Flow Control: 802.3x Flow Control, HOL Blocking Prevention
• Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication
• MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
