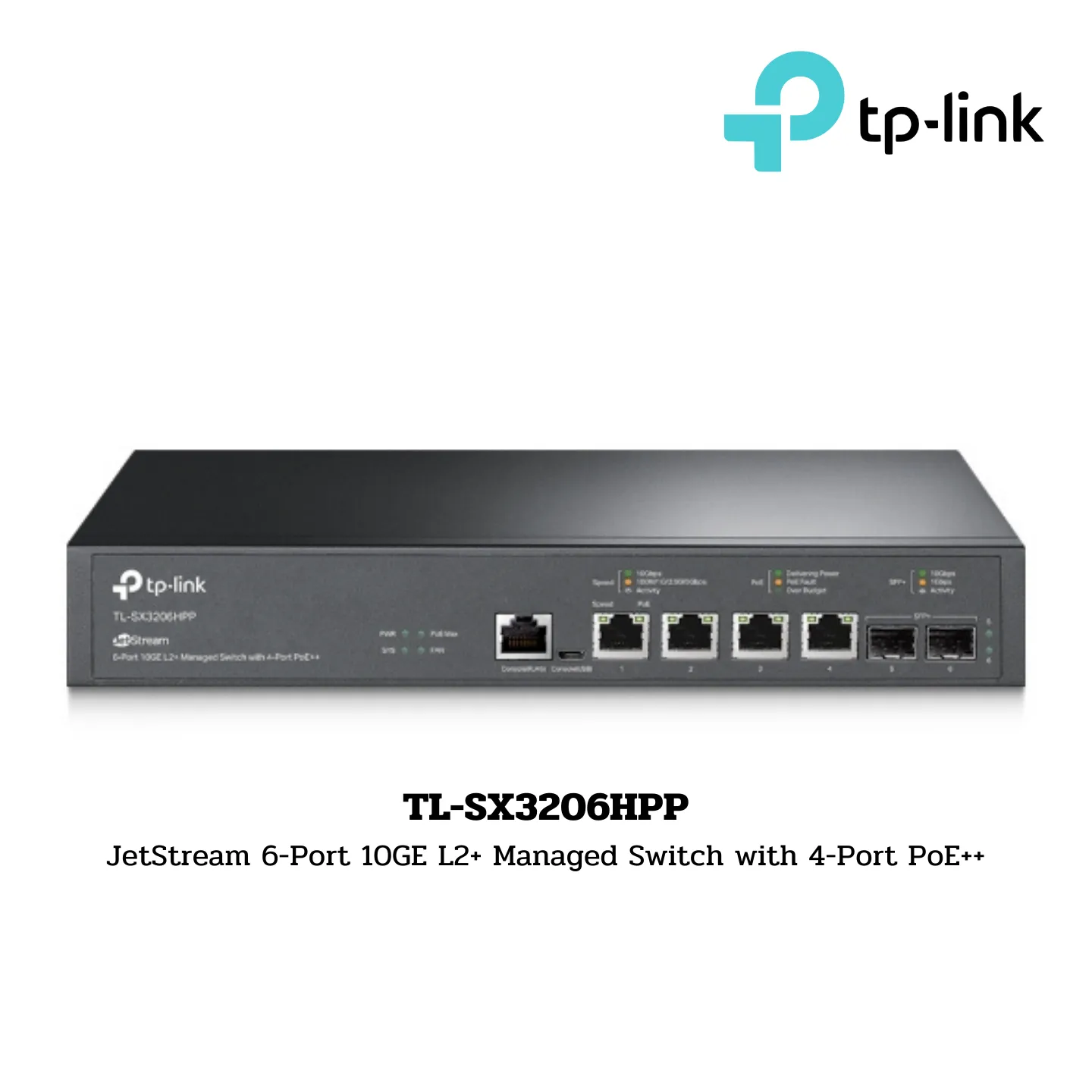

Switch TP-Link รุ่น TL-SX3206HPP

• Ports:
  • 4× 10G PoE++ Ports
  • 2× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Specification:
  • 802.3bt/at/af, 200 W PoE Power, 1U 13-inch Rack-mountable Steel Case
• Feature:
  • Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Hardware Features:

• Interface:
  • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports
  • 2× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Fan Quantity:
  • 2
• Power Supply:
  • 100-240 V AC~50/60 Hz
• PoE Ports (RJ45):
  • Standard: 802.3bt/at/af compliant
  • PoE+ Ports: 4 Ports, up to 60 W per port
  • Power Budget: 200 W
• Dimensions (W x D x H):
  • 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)
• Mounting:
  • Rack Mountable
  • Desktop

Max Power Consumption:

• 27.29 W (110V/60Hz) (no PD connected)
• 244.90 W (110V/60Hz) (with 200 W PD connected)

Max Heat Dissipation:

• 93.12 BTU/h (110 V/60 Hz) (no PD connected)
• 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)

Performance:

• Switching Capacity:
  • 120 Gbps
• Packet Forwarding Rate:
  • 89.28 Mpps
• MAC Address Table:
  • 32 K
• Jumbo Frame:
  • 9 KB

Software Features:

• Quality of Service:
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
  • Bandwidth Control: Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

L3 Features:

• 16 IPv4/IPv6 Interfaces
• Static Routing: 48 static routes
• Static ARP: 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay

L2 and L2+ Features:

• Link Aggregation: static link aggregation, 802.3ad LACP, up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection: Port based, VLAN based
• Flow Control: 802.3x Flow Control, HOL Blocking Prevention
• Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication
• MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

VLAN:

• VLAN Group: Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 10 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
• Voice VLAN

Access Control List:

• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL apply to Port/VLAN

Security:

• IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
• 802.1X: Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6:

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs:

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Management:

• Omada App: Yes, requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access: Yes, requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes, requiring the use of Omada Cloud-Based Controller.

Management Features:

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Others:

• Certification: CE, FCC, RoHS
• Package Contents:
  • TL-SX3206HPP Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
