- Ports:
- 4× Gigabit PoE+ Ports
- 4× Gigabit Non-PoE Ports
- Specification:
- 802.3af/at, 64 W PoE Power, Desktop Steel Case
- Feature:
- Plug and Play
Hardware Features:
- Interface:
- 8× 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity:
- Fanless
- Physical Security Lock:
- Yes
- External Power Supply:
- External Power Adapter (Output: 53.5VDC / 1.31A)
- PoE Ports (RJ45):
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 64 W
- Packet Forwarding Rate:
- 11.904 Mpps
- Mac Address Table:
- 4K
- Jumbo Frame:
- 16 KB
- Switching Capacity:
- 16 Gbps
- Dimensions (W x D x H):
- 6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption:
- 4.7 W (220/50 Hz no PD connected)
- 74.39 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation:
- 16.03 BTU/h (no PD connected)
- 253.67 BTU/h (with 64 W PD connected)
Software Features:
- Transmission Method:
- Store-And-Forward
- Advanced Functions:
- Compatible With IEEE 802.3af/at Compliant PDs
- IGMP Snooping
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control
- 802.1p/DSCP QoS
- Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
Others:
- Certification:
- CE, FCC, RoHS
- Package Contents:

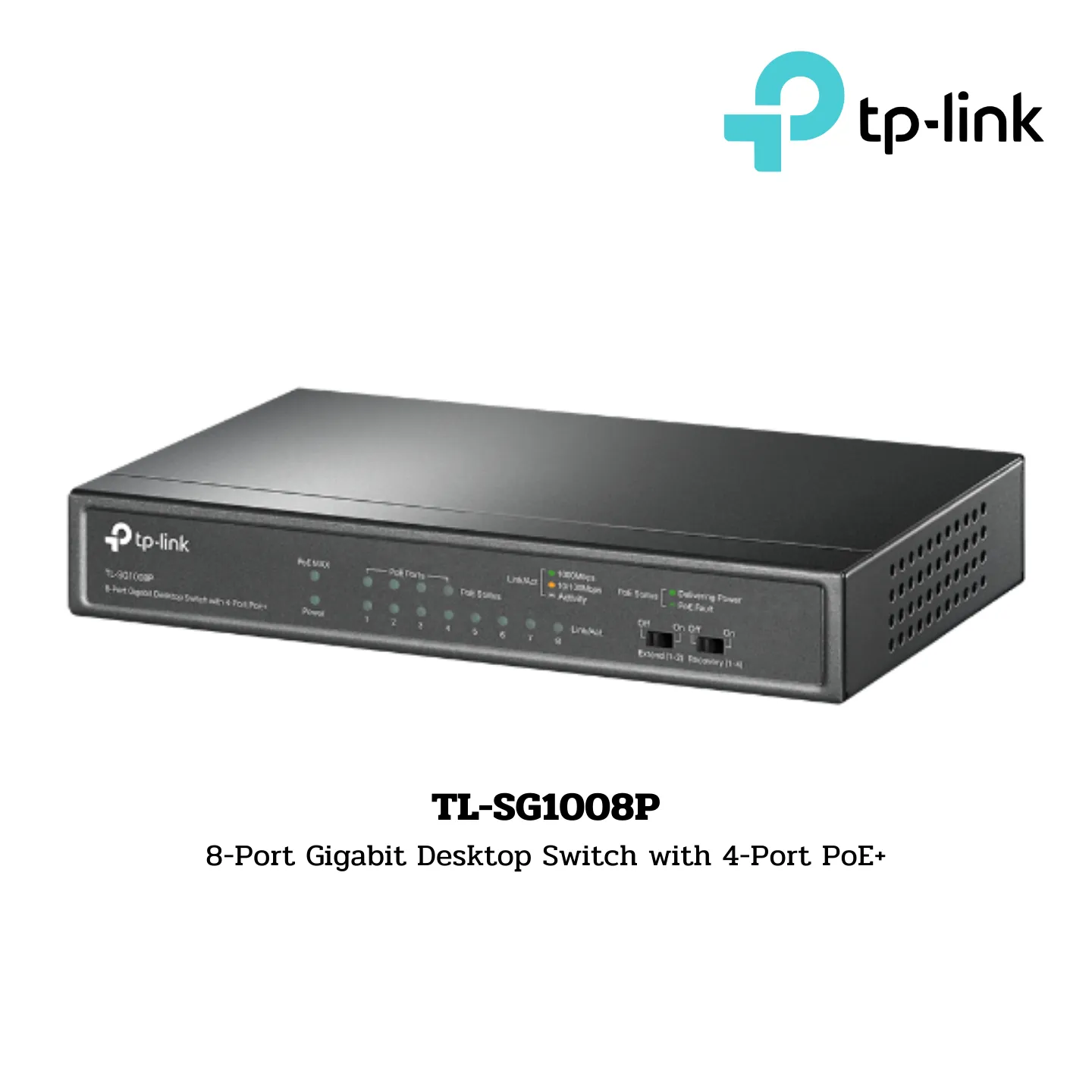

- TL-SG1008P
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
