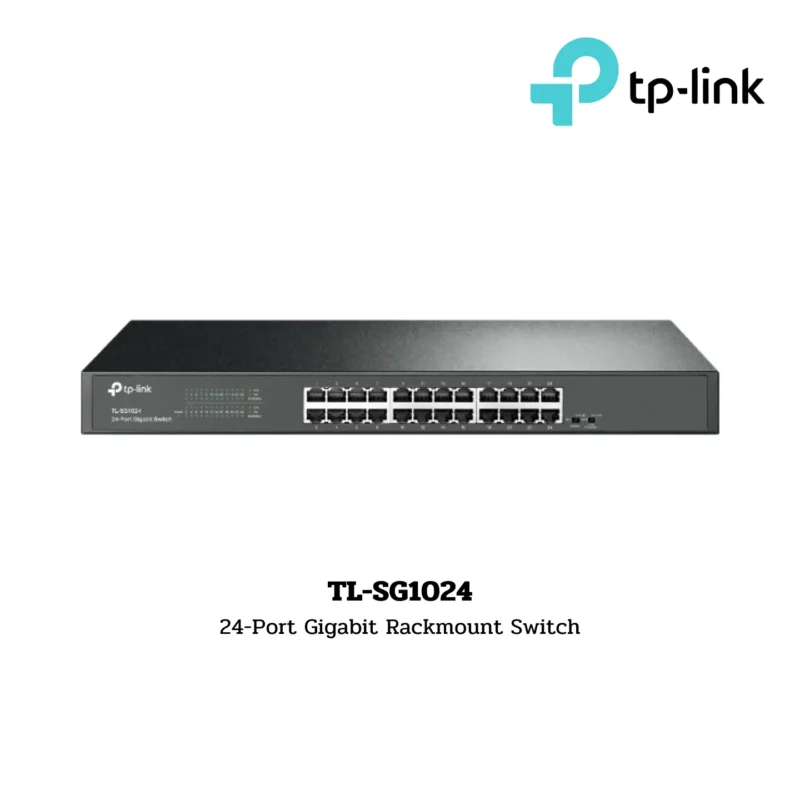

Switch TP-Link รุ่น TL-SG1024

TL-SG1024
24-Port Gigabit Rackmount Switch

• Ports:
  • 24× Gigabit RJ45 Ports
• Specification:
  • 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface:
  • 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100-240VAC, 50/60Hz
• Dimensions (W x D x H):
  • 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm)
• Mounting:
  • Rack-Mountable

Max Power Consumption:

• 13.62W

Max Heat Dissipation:

• 46.44 BTU/h

Performance:

• Switching Capacity:
  • 48Gbps
• Packet Forwarding Rate:
  • 35.7Mpps
• MAC Address Table:
  • 8K

Advanced Functions:

• Isolation Mode:
  • Ports 1-22
• Loop Prevention:
  • Ports 1-24
• Jumbo Frame:
  • 10KB
• QoS:
  • 802.1p/DSCP QoS* (*Only for V11 and later version)
• Green Technology:
  • Yes
• Transfer Method:
  • Store-and-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SG1024 24-Port Gigabit Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet

Environment:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
