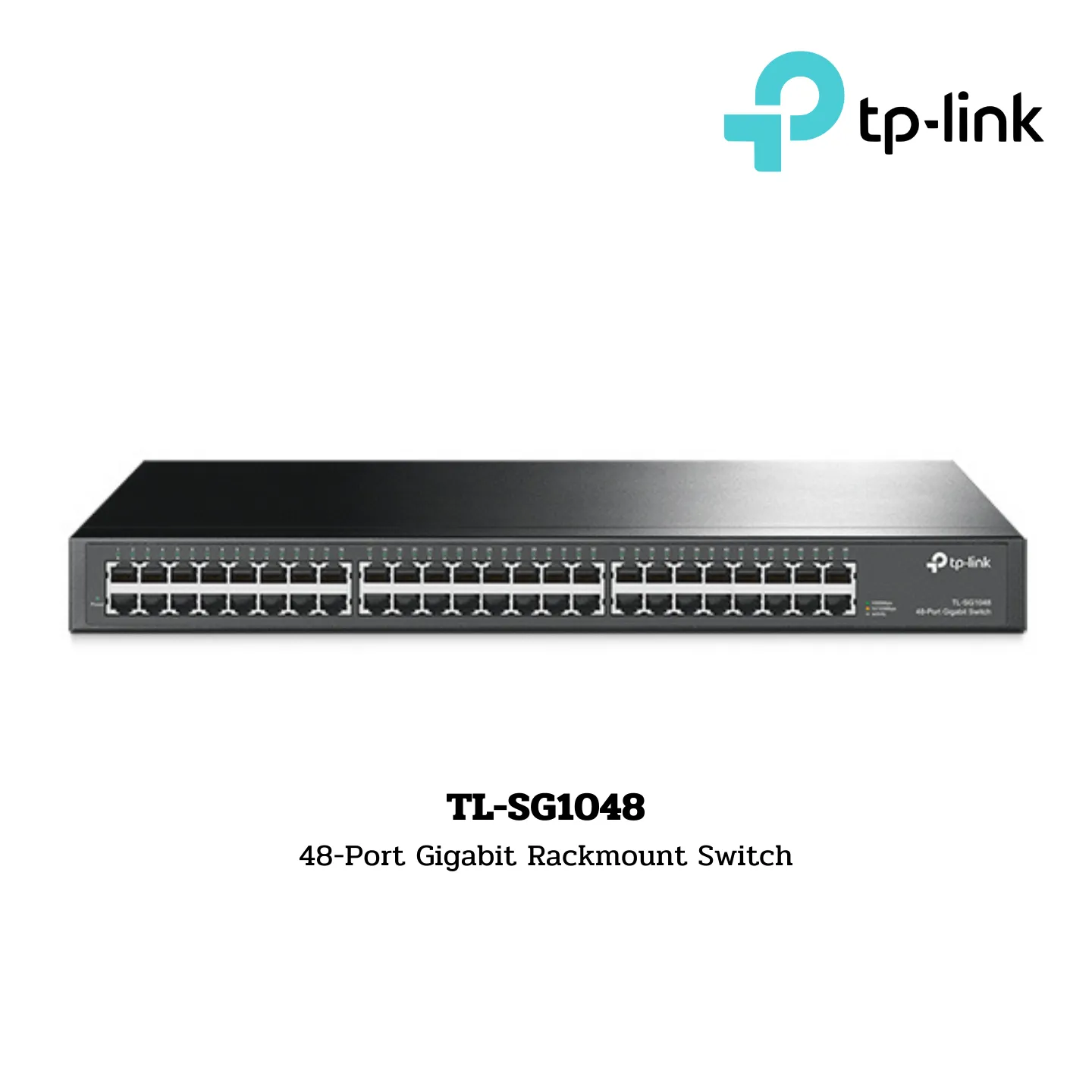

Switch TP-Link รุ่น TL-SG1048 48-Port Gigabit Rackmount Switch

TL-SG1048
48-Port Gigabit Rackmount Switch

• Ports:
  • 48× Gigabit RJ45 Ports
• Specification:
  • 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface:
  • 48× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Physical Security Lock:
  • No
• Power Supply:
  • 100-240VAC, 50/60Hz
• Dimensions (W x D x H):
  • 17.32 × 8.7 × 1.73 in. (440 × 220 × 44 mm)
• Mounting:
  • Rack Mountable

Max Power Consumption:

• 32.29W (220V/50Hz)

Max Heat Dissipation:

• 110.17 BTU/h

Performance:

• Switching Capacity:
  • 96Gbps
• Packet Forwarding Rate:
  • 71.4Mpps
• MAC Address Table:
  • 16K
• Buffer Memory:
  • 12Mb
• Jumbo Frame:
  • 12KB

Transfer Method:

• Store-and-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SG1048 48-Port Gigabit Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet

Environment:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
