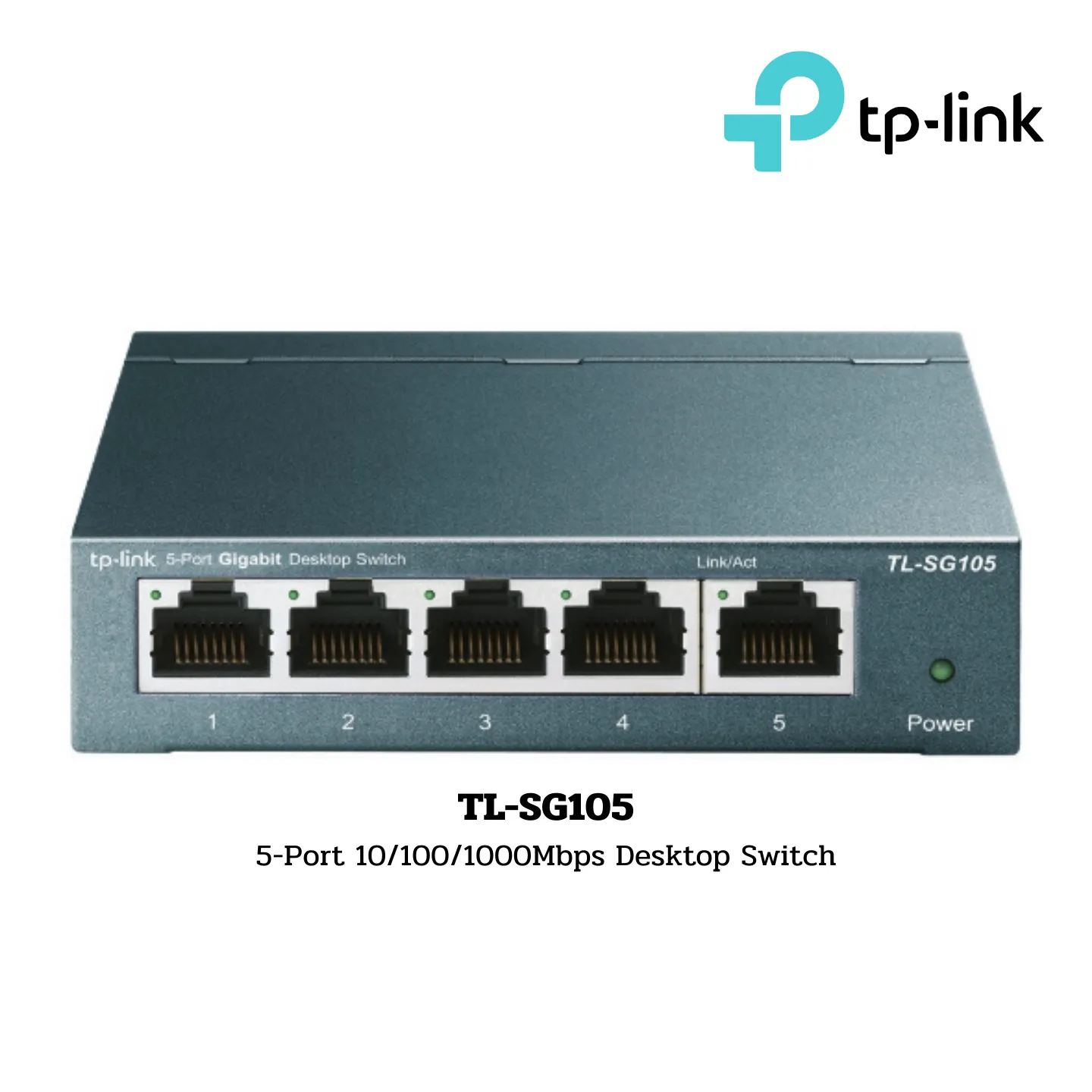

Switch TP-Link รุ่น TL-SG105 5-Port 10/100/1000Mbps Desktop Switch

TL-SG105
5-Port 10/100/1000Mbps Desktop Switch

• Ports:
  • 5× Gigabit RJ45 Ports
• Specification:
  • Desktop Steel Case
• Feature:
  • Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Interface:
  • 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity:
  • Fanless
• External Power Supply:
  • External Power Adapter (Output: 5 V DC / 0.6A)
• LED Indicator:
  • System Power, Link/Act indicators per port built into each RJ-45 port
• Dimensions (W x D x H):
  • 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption:

• 3.0 W (220 V/ 50 Hz)

Max Heat Dissipation:

• 10.23 BTU/h

Performance:

• Packet Forwarding Rate:
  • 7.4 Mpps
• MAC Address Table:
  • 2K
• Packet Buffer Memory:
  • 1 Mb
• Jumbo Frame:
  • 16 KB

Software Features:

• Advanced Features:
  • Green Technology
  • 802.3X Flow Control
  • 802.1P/DSCP QoS (for V2 and later version)
  • IGMP Snooping
  • Loop Prevention
• Transfer Method:
  • Store and Forward

Others:

• Certification:
  • CE, FCC, RoHS
• Package Contents:
  • TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide

Environment:

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
