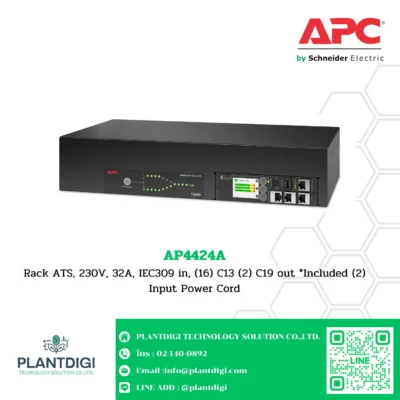

APC Rack-mount Transfer Switches รุ่น AP4424A

AP4424A
Rack ATS, 230V, 32A, IEC309 in, (16) C13 (2) C19 out *Included (2) Input Power Cord

The AP4424A is a rack PDU by Schneider Electric, featuring 24 C13 outlets for efficient power distribution. It supports 230V input voltage and offers remote management capabilities. This unit is designed for high-density IT environments, ensuring reliable power delivery without occupying additional rack space. Ideal for data centers and server rooms.

– Seamless switching with transfer time 10ms
– Minimized downtime disruption with Field-replaceable NMC
– Monitor temperature and humidity efficiently
– Dual input power cords to enhance uptime for critcal loads
– Connect and manage up to 32 Rack ATSs from one IP address

———
Overview
———
Lead time: Usually in Stock

—–
Main
—–
Main Input Voltage: 230 V AC 1 phase
Product or component type: Automatic transfer switch
Main Output Voltage: 230 V AC 1 phase
Input Connection Type: IEC 60320 IEC 60309 32 A 2P + E, IEC 60320
number of rack unit: 2U
Cable length: 2.4 m
Number of cables: 2
Provided equipment: Mounting hardware, Rack mounting brackets

———
Physical
———
Colour: Black
Height: 8.8 cm
Width: 43.2 cm
Depth: 23.6 cm
Net weight: 6.94 kg
mounting location: Front, Rear
Mounting preference: No preference
mounting mode: Rack-mounted
mounting position: Horizontal

——
Input
——
Network frequency: 50/60 Hz
Permissible voltage: 207…253 V
Load capacity: 7400 VA

——-
Output
——-
Max current draw: 32 A
Number of power socket outlets: 18
Protection type: Circuit breaker

————-
Conformance
————-
product certifications: EN 55022 class A, FCC part 15 class A
Standards: EN 55022 class A, FCC part 15 class A

————–
Environmental
————–
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 21 cm
Package 1 Width: 58.4 cm
Package 1 Length: 35.6 cm
Package 1 Weight: 9.43 kg
Unit Type of Package 2: PAM
Number of Units in Package 2: 20
Package 2 Height: 120 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 201.2 kg

———————
Contractual warranty
———————
Warranty: 2 years repair or replace
