H3C MSR1000 Series Router รุ่น MSR1008

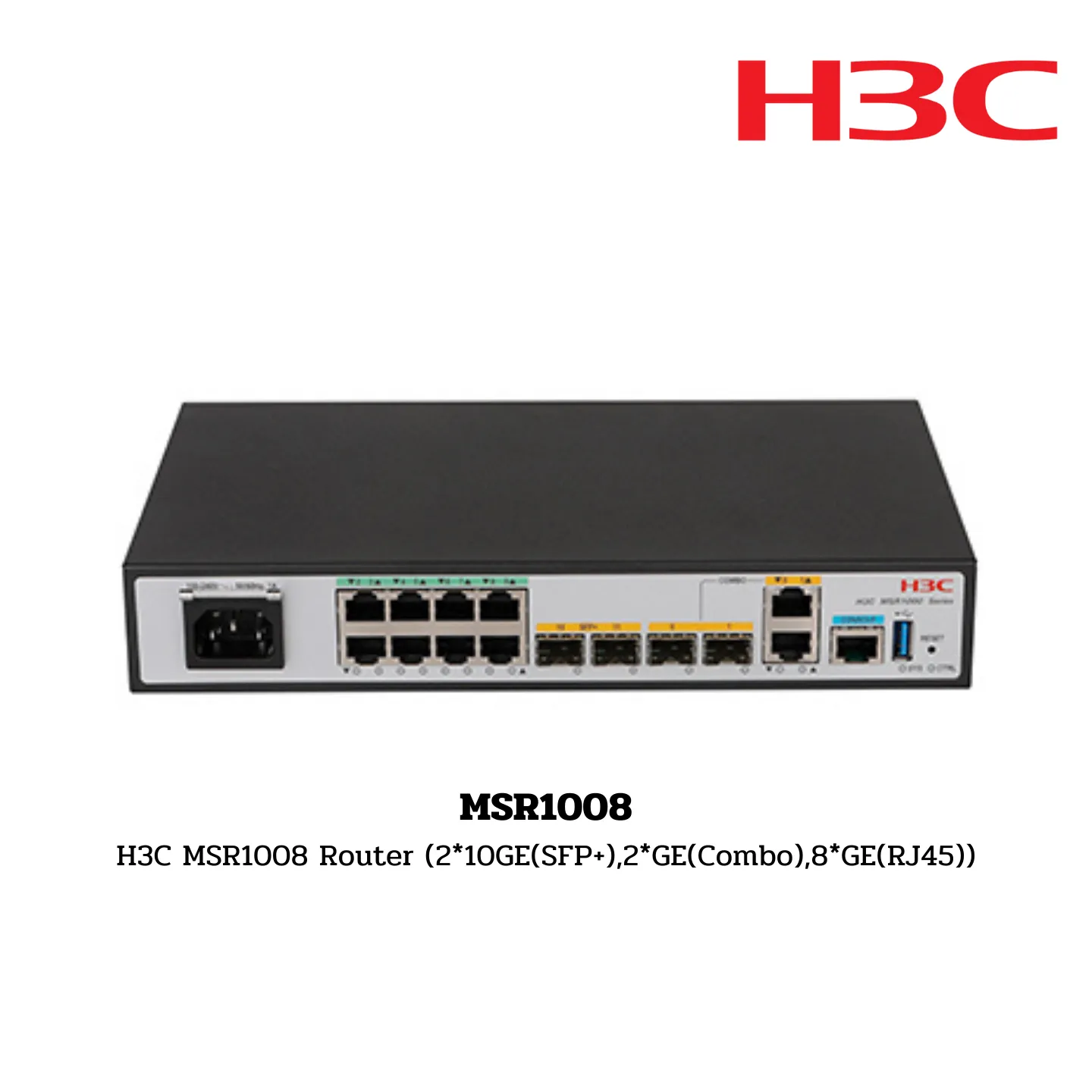

MSR1008

H3C MSR1008 Router (2*10GE(SFP+),2*GE(Combo),8*GE(RJ45))



Hardware Specifications

IP Forwarding Performance (IMIX):

• 7.5 Gbps

Forwarding Performance with ACL+NAT+QOS (IMIX):

• 4 Gbps

IPSec Forwarding Performance (1400 byte):

• 3 Gbps

CPU:

• 4 cores, 1.6 GHz

Memory:

• 2 GB

Flash:

• 4 GB

Console Ports:

• 1

USB 2.0 Port:

• 1

WAN Ports:

• 2 × 10GE SFP+ ports
• 2 × GE combo interfaces

LAN Ethernet Ports:

• 8 × GE copper ports (Four of them can be switched to routing mode.)

5G/4G:

• N/A

5G/4G Antenna:

• N/A

SIM Cards:

• N/A

Wi-Fi:

• N/A

Wi-Fi Antenna:

• N/A

Dying Gasp:

• Supported

Max Power Consumption:

• 36 W

Power Supply:

• Internal power adapter: 100 to 240 V, 50/60 Hz

Dimensions (H × W × D):

• 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in)

Operating Temperature:

• 0°C to 45°C

Ambient Relative Humidity:

• 5% to 95%, non-condensing

Software Specifications

Layer 2 Switching:

• Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server

IP Services:

• TCP, UDP, IP option, IP unnumbered
• Policy-based routing, NetStream, sFlow
• ECMP
• UCMP

IP Applications:

• Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, UDP Helper, NTP, SNTP

IPv4 Routing:

• Static routing
• Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS
• Route iteration
• Routing policy
• Multicast routing protocols: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP

IPv6:

• IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, DS-LITE
• IPv6 tunnel: manually configured IPv6 tunnel, automatic IPv6 tunnel, GRE tunnel, 6to4 tunnel, ISATAP tunnel
• Static routing
• Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+
• IPv6 multicast protocols: MLDv1/v2, PIM-DM, PIM-SM

QoS:

• LR, port-based mirroring, priority trust mode on a port, and port priority
• Committed access rate (CAR)
• FIFO, WFQ, CBQ
• Generic Traffic Shaping (GTS)
• Traffic classification

5G/4G:

• N/A

Security:

• Portal, 802.1X
• Local authentication, RBAC authentication, RADIUS authentication, TACACS+ authentication
• ASPF, ACL, filter, security zone-based firewall, connection limit, IPS
• IKE/IPsec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN
• NAT/NAPT, PKI, RSA, URPF
• DDoS attack prevention, ARP attack prevention, URL filtering
• EAD
• DPI
• SM2, SM3, SM4 encryption algorithms

SDN:

• NETCONF, OpenFlow, telemetry
• VXLAN, EVPN
• Segment routing
• ZTP through USB drive, URL, and DHCP
• SRv6:
  • OSPFv3 for SRv6
  • IS-IS for SRv6
  • SRv6 policy
  • SRv6 policy-based traffic steering
  • EVPN L3VPN over SRv6
  • EVPN L3VPN over SRv6 policy
  • SRv6 policy-based traffic statistics
  • SRv6 OAM
  • BFD for SRv6
  • SRv6 TI-LFA

MPLS:

• LDP, Static LSP
• L3VPN: Inter-domain MPLS VPN (Option1/2/3), nested MPLS VPN, hierarchy PE (HoPE), CE dual homing, MCE, and multi-role host
• L2VPN: Martini, Kompella, CCC and SVC
• MPLS TE, RSVP TE

High Availability:

• VRRP, VRRPv3
• Multi-link load balancing and backup
• Network quality analyzer (NQA), supporting collaboration with routing, VRRP, and interface backup

Management and Maintenance:

• SNMP v1/v2c/v3, TR069, syslog, RMON
• Telnet, SSHv1.5/2.0, FTP
• EAA
• CLI management, file system management, dual image
• NQA DHCP test, NQA FTP test, NQA HTTP test, NQA ICMP test, NQA UDP public test, NQA UDP private test, NQA TCP public test, NQA TCP private test, and NQA SNMP test
