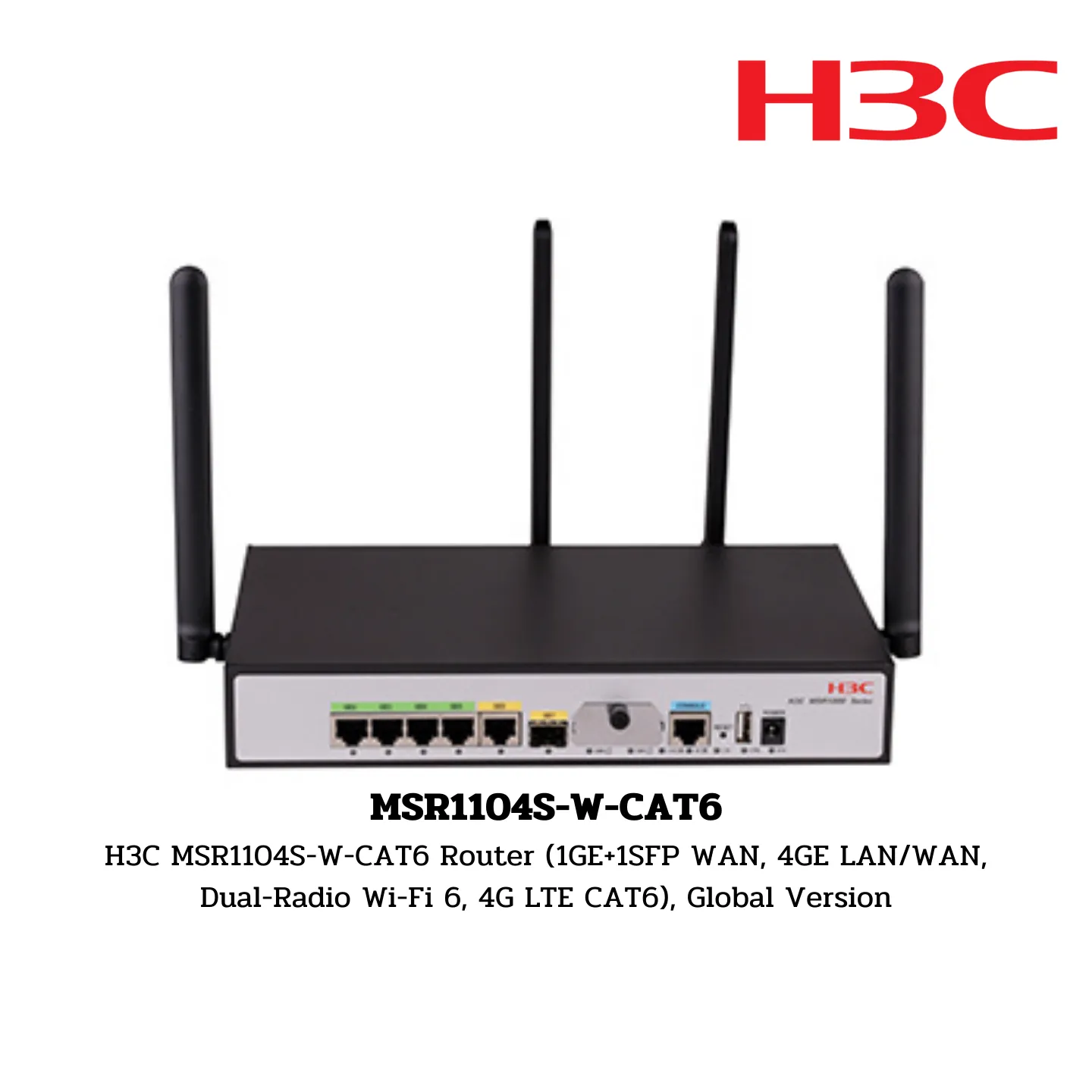

H3C Router รุ่น MSR1104S-W-CAT6

MSR1104S-W-CAT6
Router (1GE+1SFP WAN, 4GE LAN/WAN, Dual-Radio Wi-Fi 6, 4G LTE CAT6), Global Version

Hardware Specifications

IP Forwarding Performance (IMIX):

• 1.8 Gbps

Forwarding Performance with ACL+NAT+QOS (IMIX):

• 1.4 Gbps

IPSec Forwarding Performance (1400 byte):

• 900 Mbps

CPU:

• 4 cores, 1.7 GHz

Memory:

• 1 GB

Flash:

• 256 MB

Console Ports:

• 1

USB 2.0 Port:

• 1

WAN Ports:

• 1 × GE copper port
• 1 × GE fiber port

LAN Ethernet Ports:

• 4 × GE copper ports

5G/4G:

• TDD LTE: B38/B40/B41
• FDD LTE: B1/B3/B5/B7/B8/B20/B28/B32
• WCDMA: B1/B3/B5/B8
• CA: B1+B3/B8, B3+B1/B8, B38+B38

5G/4G Antenna:

• 2

SIM Cards:

• 2

Wi-Fi:

• 802.11ax/n/b/g: 2.4 GHz 2×2 MIMO 575 Mbps
• 802.11ax/ac/a/n: 5G 2×2 MIMO 2400 Mbps

Wi-Fi Antenna:

• 2

Dying Gasp:

• N/A

Max Power Consumption:

• 24 W

Power Supply:

• External power adapter: 100 to 240 V, 50/60 Hz

Dimensions (H × W × D):

• 43.6 × 266 × 161 mm (1.72 × 10.47 × 6.34 in)

Operating Temperature:

• 0°C to 45°C

Ambient Relative Humidity:

• 5% to 95%, non-condensing
