Access Point HPE รุ่น R2X01A

R2X01A

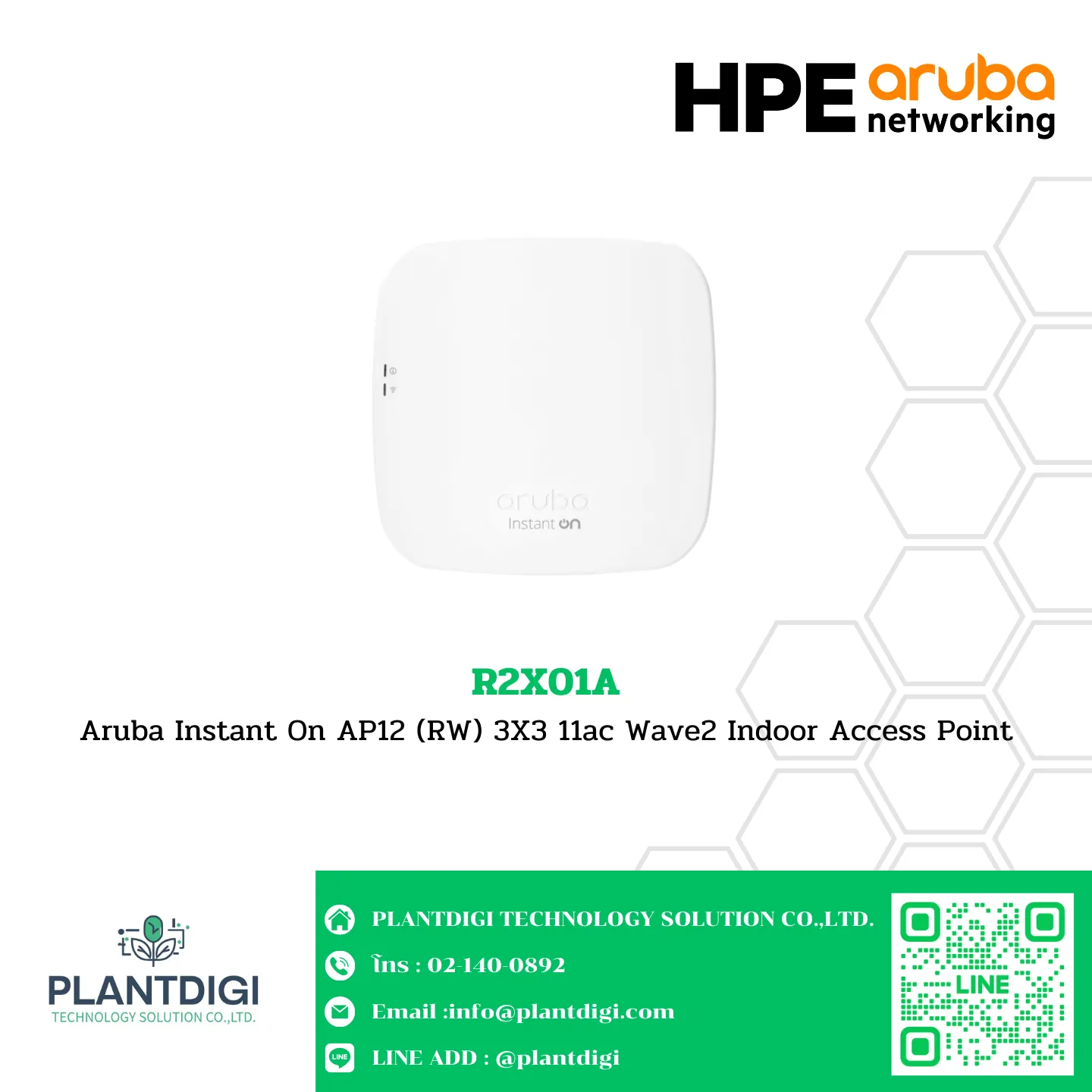

Aruba Instant On AP12 (RW) 3X3 11ac Wave2 Indoor Access Point

Overview

The Aruba Instant On AP12 Indoor Access Point offers a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments such as design firms, cafés, or restaurants. These access points are cost-effective, provide a peak data rate of 1.6 Gbps, and can scale up to 25 access points without additional cost and complexity.

Specifications

Model:

• R2X01A

Certifications:

• UL 2043 plenum rating
• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input Voltage:

• Power over Ethernet (PoE): 802.3af (class 3)
• DC power (12V)
  • Note: Power sources are sold separately

Wi-Fi Antenna:

• Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz

Connectivity, Standard:

• IEEE 802.11ac, 802.11n

Ports:

• (1) uplink Gigabit Ethernet port, with PoE-in support (802.3af)

Mounting:

• The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling).

Radio Coverage:

• Dual Radio for simultaneous dual-band operation
  • 5 GHz 802.11ac 3×3 MIMO for up to 1,300 Mbps wireless data rate, with Multi-User MIMO support (Wi-Fi 5)
  • 2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Weight:

• 483 g (1.1 lb)

Dimensions:

• 34 x 157 x 157 mm (1.3 x 6.2 x 6.2 in)

Key Features

• Reliable and Affordable: Ideal for low- to medium-density small business environments.
• High Performance: Peak data rate of 1.6 Gbps, scalable up to 25 access points.
• Dual-Band Operation: Simultaneous dual-band support with 802.11ac Wave 2 (Wi-Fi 5) and 802.11n (Wi-Fi 4) standards.
• PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
• Easy Installation: Comes with mounting clips for suspended ceilings and solid surfaces.
• Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi-User MIMO support.
• Comprehensive Warranty: 2 Year warranty with robust support options.
