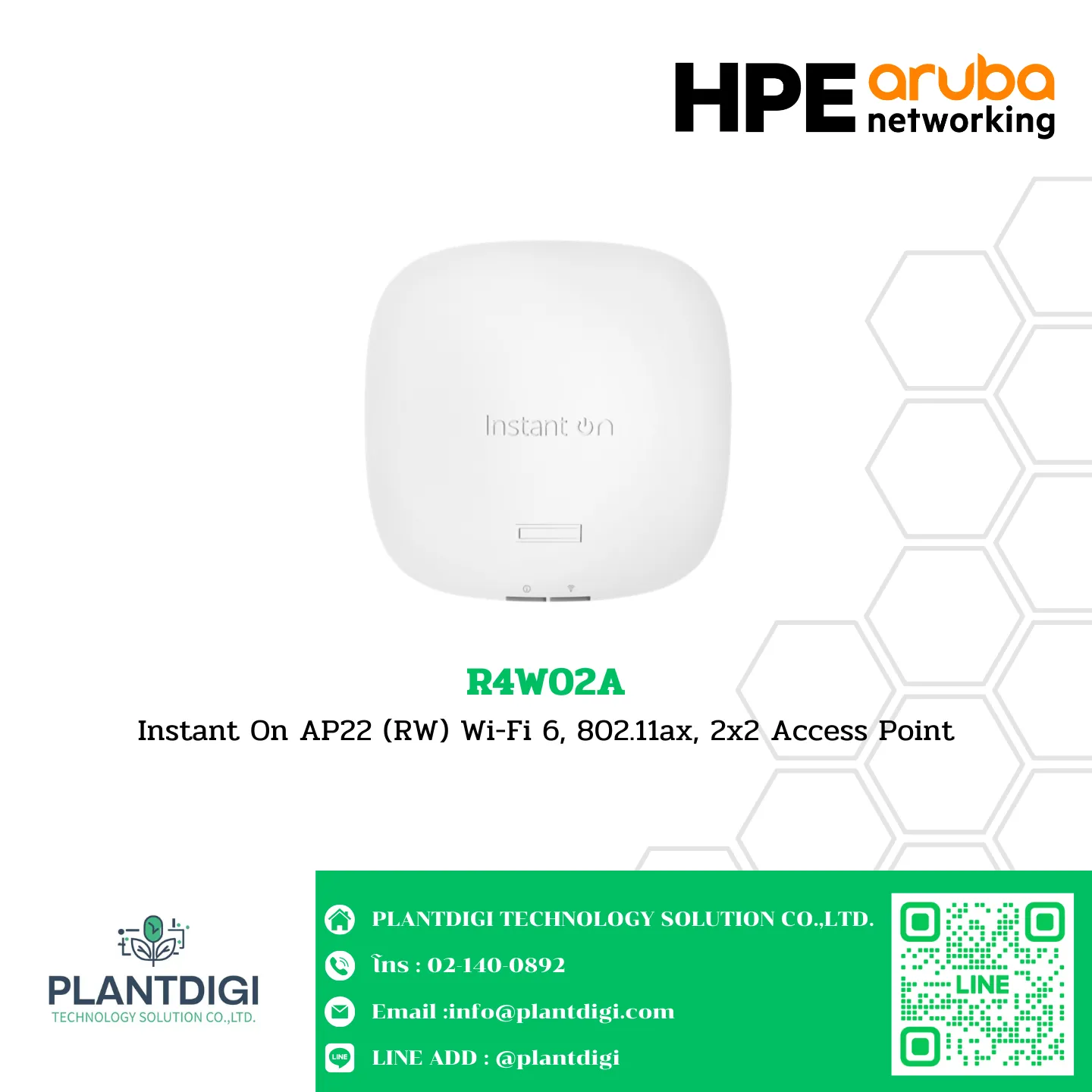

HPE Aruba Instant On Wi-Fi 6 Access Point รุ่น R4W02A

R4W02A
Instant On AP22 (RW) Wi-Fi 6, 802.11ax, 2×2 Access Point

Overview

The HPE Networking Instant On Indoor Access Point 2×2 Wi-Fi 6 (RW) AP22 is designed to offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance and high-density small business environments, such as hotels, restaurants, and professional offices. Supporting the Wi-Fi 6 standard, these access points have a peak data rate of 1.2 Gbps and can scale up to 25 access points without additional cost and complexity.

Specifications

Model:

• R4W02A

Certifications:

• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input Voltage:

• Power over Ethernet (PoE): 802.3af (class 3)
• DC power (12V)
  • Note: Power sources are sold separately

Wi-Fi Antenna:

• Integrated down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band)

Connectivity, Standard:

• IEEE 802.11ax

Ports:

• (1) uplink Gigabit Ethernet port, with PoE-in support (802.3af)

Mounting:

• The access point ships with a white mount clip that can attach to both wall and ceiling.
  • You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.

Power Consumption:

• Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)

Radio Coverage:

• Dual Radio for simultaneous dual-band operation
  • 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi-User MIMO support (Wi-Fi 6)
  • 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Weight:

• 500 g (1.1 lb)

Dimensions:

• 37 x 160 x 160 mm (1.5 x 6.3 x 6.3 in)

Key Features

• Reliable and Affordable: Ideal for high-density small business environments.
• High Performance: Peak data rate of 1.2 Gbps, scalable up to 25 access points.
• Dual-Band Operation: Simultaneous dual-band support with 802.11ax (Wi-Fi 6) standards.
• PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
• Easy Installation: Comes with mounting clips for wall and ceiling setups.
• Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi-User MIMO support.
• Comprehensive Warranty: 2 Year warranty with robust support options.
