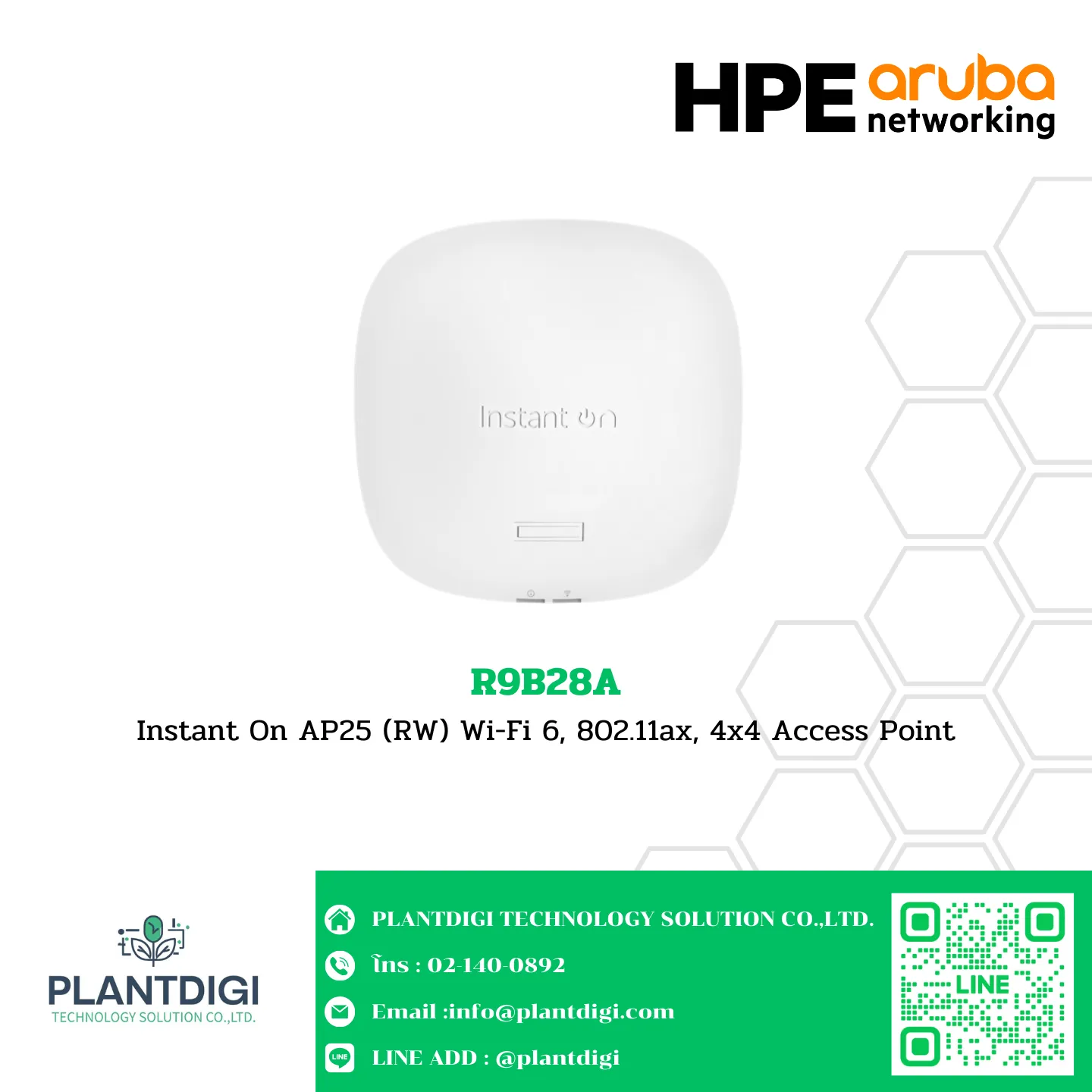

HPE Aruba Instant On Wi-Fi 6 Access Point รุ่น R9B28A

R9B28A
Instant On AP25 (RW) Wi-Fi 6, 802.11ax, 4×4 Access Point

Overview

The HPE Networking Instant On Indoor Access Point Wi‑Fi 6 4×4 (RW) AP25 is designed to deliver a reliable, affordable, and high-performance 802.11ax Wi-Fi experience for high-density small business environments, such as hotels, restaurants, and professional offices. Supporting Wi-Fi 6, this access point can handle a peak data rate of up to 4.8 Gbps, making it ideal for demanding network usage.

Specifications

Model:

• R9B28A

Certifications:

• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ax (Wi-Fi 6), WPA2, WPA3

Input Voltage:

• Power over Ethernet (PoE): 802.3at (class 4)
• DC power (12V)
  • Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi Antenna:

• Down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4×4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band)

Connectivity, Standard:

• Ultra-fast 802.11ax, 4×4:4

Ports:

• Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at)
• DC power connector (12V)
• Bluetooth Low Energy (BLE) radio
• LED status indicators
• Reset/LED control button
• Kensington security slot

Mounting:

• The access point ships with a white mount clip that can attach to both walls and ceilings.
  • Mounts that match the design of the APs can be purchased separately.

Power Consumption:

• Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC)

Radio Coverage:

• Dual radio for simultaneous dual-band operation
  • 5 GHz 802.11ax 4×4 MIMO for up to 4.8 Gbps wireless data rate, with Multi-User MIMO support (Wi-Fi 6)
  • 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Weight:

• 1.18 kg (2.6 lb)

Dimensions:

• 5.1 x 20.3 cm (2 x 8 x 8 in)

Key Features

• Reliable and Affordable: Ideal for high-density small business environments.
• High Performance: Peak data rate of up to 4.8 Gbps, scalable up to 25 access points.
• Dual-Band Operation: Simultaneous dual-band support with 802.11ax (Wi-Fi 6) standards.
• PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
• Easy Installation: Comes with mounting clips for wall and ceiling setups.
• Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi-User MIMO support.
• Comprehensive Warranty: 2-year warranty with robust support options.
