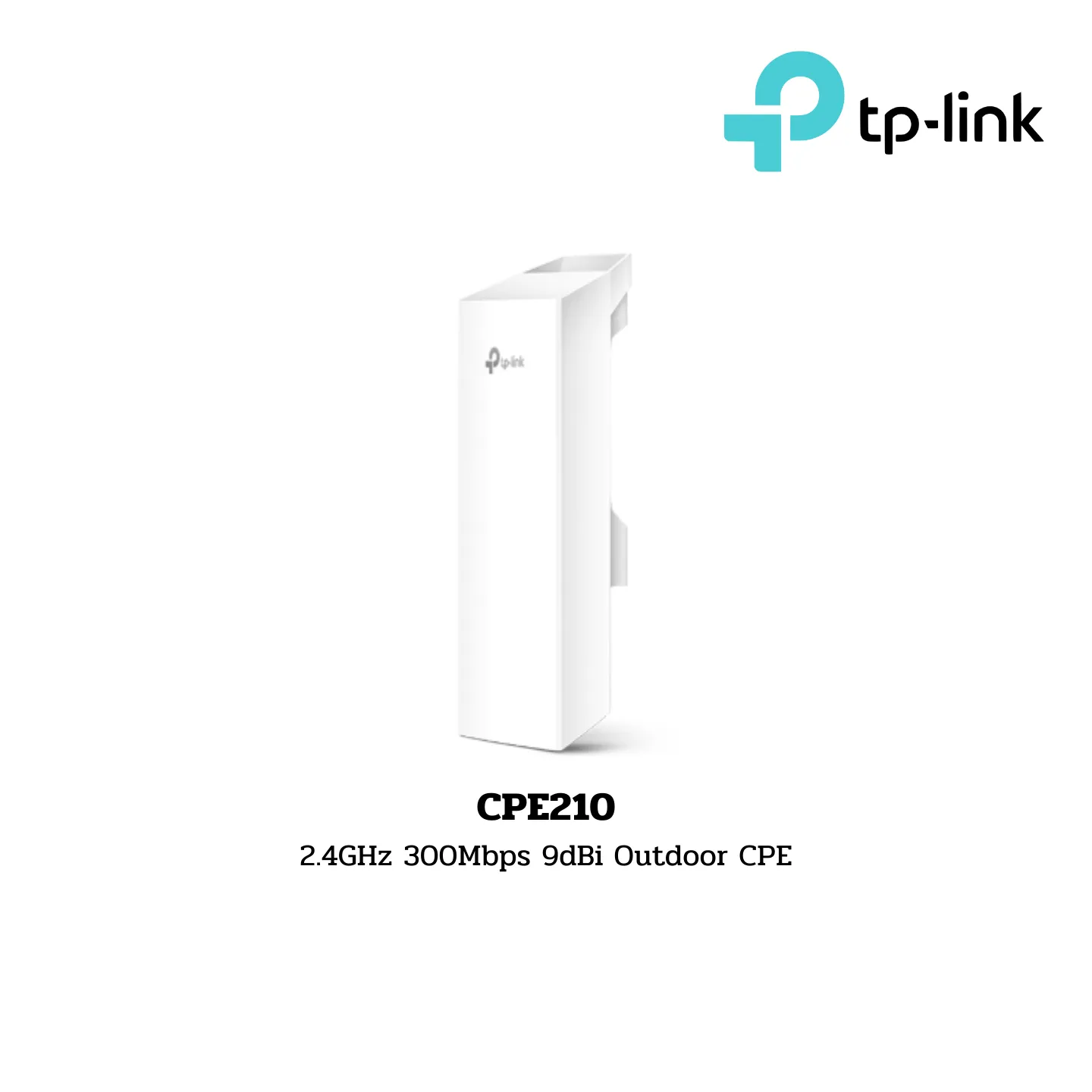

TP-Link CPE210 CPE 2.4GHz 300Mbps 9dBi Outdoor CPE Outdoor Wireless Broadband

CPE210
2.4GHz 300Mbps 9dBi Outdoor CPE

Brand:

• TP-Link

Port:

• 1× 10/100 Mbps Shielded Ethernet Port

Speed:

• 300 Mbps at 2.4 GHz

Feature:

• 9 dBi
• 5+ km
• IPX5 Weatherproof
• Passive PoE
• MAXtream TDMA
• Centralized Management
• Spectrum Analyzer
• AP/Client/AP Router/AP Client Router/Repeater/Bridge mode

Hardware Features:

Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Interface:

• 1× 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
• 1× Grounding Terminal
• 1× Reset Button

Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Power Consumption: 5 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions (W x D x H): 224 x 79 x 60 mm

Antenna Type: Built-in 9dBi 2×2 Dual-polarized Directional Antenna

Beam Width: 65° (H-Plane) / 40° (E-Plane)

Note: For more details, please refer to datasheet.

Protection: 15KV ESD Protection, 6KV Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification

Wireless Features:

Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:

• Up to 300Mbps (40MHz, Dynamic)
• Up to 144.4Mbps (20MHz, Dynamic)
• Up to 72.2Mbps (10MHz, Dynamic)
• Up to 36.1Mbps (5MHz, Dynamic)

Frequency: 2.4~2.483GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power: 25dBm/316mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Software Features:

Wireless Configurations:

• Pharos MAXtream TDMA Technology
• 802.11b/g/n Modes
• Selectable Channel Width: 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:

• Discovery and Remote Management via Pharos Control application
• HTTP/HTTPS Web-based management
• System Log
• SNMP Agent (v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server

System Tools:

• Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watchdog

PoE Adapter Features:

Dimensions (W x D x H): 85.8×43.9×29.7 mm

Interfaces:

• 1 AC Jack with Earth Ground
• 1 10/100Mbps Shielded Ethernet Port (Power + Data)
• 1 10/100Mbps Shielded Ethernet Port (Data)

Button: Remote Reset Button

Power Status LEDs: Green

Input: 100-240VAC, 50/60Hz

Output:

• V2.0: 24VDC, 0.6A Max
• V3.0: 24VDC, 0.5A Max
• V3.20: 24VDC, 0.25A Max
• +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: >80%

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Others:

Certification: CE, FCC, RoHS, IPX5

Package Contents:

• Outdoor Wireless CPE
• 24V 0.25A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:

• Operating Temperature: -40℃~70℃ (-40℉~158℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
